3302/36 300SF

Active

3M Electronic Specialty

CBL RIBN 36COND 0.05 MULTI 300'

3302/36 300SF

Active

3M Electronic Specialty

CBL RIBN 36COND 0.05 MULTI 300'

Description Specifications Series Pricing CAD Documents

Description

General part information

3302 Series

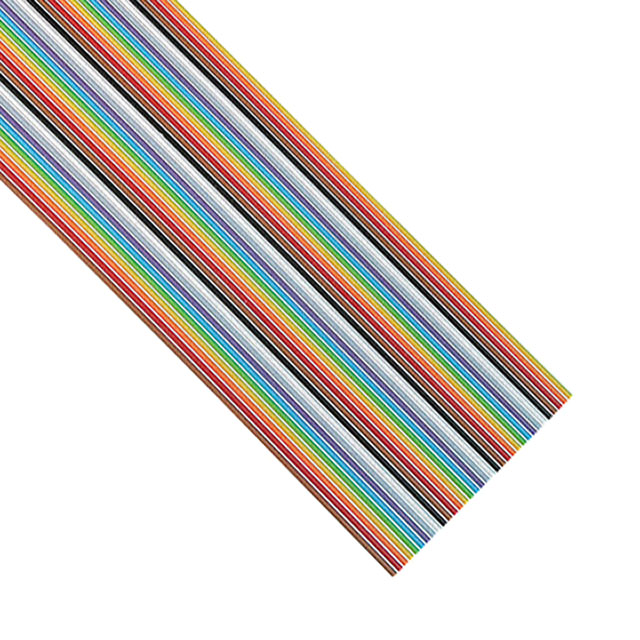

Flat Ribbon Cable Multiple 36 Conductors 0.050" (1.27mm) Flat Cable 300.0' (91.44m)

Technical Specifications

Parameters and characteristics for this part

Specification	3302/36 300SF

Cable Type	Flat Cable
Conductor Material	Tinned, Copper
Conductor Strand Count	7 Strands
Conductor Strand Gauge	36 AWG
Features	Splice Free, Zippable
Insulation Resistance	1 GOhms
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Multiple
Length	300 ft
Number of Conductors	36
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-20 °C
Pitch	0.05 in
Ratings	Style, 20462, UL
Ribbon Thickness	0.042 in
Ribbon Width	1.8 in
Shielding	Unshielded
Voltage	300 V
Wire Gauge	28 AWG

3302 Series

Part	Ribbon Thickness	Jacket Color	Length	Pitch	Features	Operating Temperature (Min)	Operating Temperature (Max)	Shielding	Ribbon Width	Jacket (Insulation) Material	Number of Conductors	Length	Voltage	Conductor Strand Count	Conductor Strand Gauge	Wire Gauge	Cable Type	Ratings	Insulation Resistance	Conductor Material	Spool Size
3M Electronic Specialty 3302/10 300	0.042 in	Multiple	5 ft 10 ft 12 in 25 ft 50 ft 100 ft 300 ft	0.05 in	Zippable	-20 °C	105 °C	Unshielded	0.5 in	Poly-Vinyl Chloride (PVC)	10	Enter Number of Feet in Order Quantity	300 V	7 Strands	36 AWG	28 AWG	Flat Cable	20462 Style UL	1 GOhms	Copper Tinned
3M Electronic Specialty 3302/64 300SF	0.042 in	Multiple	5 ft 10 ft 12 in 25 ft 50 ft 100 ft 300 ft	0.05 in	Splice Free Zippable	-20 °C	105 °C	Unshielded	3.2 in	Poly-Vinyl Chloride (PVC)	64		300 V	7 Strands	36 AWG	28 AWG	Flat Cable	20462 Style UL	1 GOhms	Copper Tinned
3M Electronic Specialty 3302/64 300	0.042 in	Multiple	300 ft	0.05 in	Zippable	-20 °C	105 °C	Unshielded	3.2 in	Poly-Vinyl Chloride (PVC)	64		300 V	7 Strands	36 AWG	28 AWG	Flat Cable	20462 Style UL	1 GOhms	Copper Tinned
3M Electronic Specialty 3302/25 100	0.042 in	Multiple	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	0.05 in	Zippable	-20 °C	105 °C	Unshielded	1.25 in	Poly-Vinyl Chloride (PVC)	25	Enter Number of Feet in Order Quantity	300 V	7 Strands	36 AWG	28 AWG	Flat Cable	20462 Style UL	1 GOhms	Copper Tinned
3M Electronic Specialty 3302/20 100	0.042 in	Multiple	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	0.05 in	Zippable	-20 °C	105 °C	Unshielded	1 in	Poly-Vinyl Chloride (PVC)	20	Enter Number of Feet in Order Quantity	300 V	7 Strands	36 AWG	28 AWG	Flat Cable	20462 Style UL	1 GOhms	Copper Tinned
3M Electronic Specialty 3302/37 100	0.042 in	Multiple	100 ft	0.05 in	Zippable	-20 °C	105 °C	Unshielded	1.85 in	Poly-Vinyl Chloride (PVC)	37		300 V	7 Strands	36 AWG	28 AWG	Flat Cable	20462 Style UL	1 GOhms	Copper Tinned
3M Electronic Specialty 3302/50 100SF	0.042 in	Multiple	100 ft	0.05 in	Splice Free Zippable	-20 °C	105 °C	Unshielded	2.5 in	Poly-Vinyl Chloride (PVC)	50	Enter Number of Feet in Order Quantity	300 V	7 Strands	36 AWG	28 AWG	Flat Cable	20462 Style UL	1 GOhms	Copper Tinned	100 ft
3M Electronic Specialty 3302/09 100	0.042 in	Multiple	5 ft 10 ft 12 in 25 ft 50 ft 100 ft	0.05 in	Zippable	-20 °C	105 °C	Unshielded	0.45 in	Poly-Vinyl Chloride (PVC)	9		300 V	7 Strands	36 AWG	28 AWG	Flat Cable	20462 Style UL	1 GOhms	Copper Tinned
3M Electronic Specialty 3302/37 100SF	0.042 in	Multiple	100 ft	0.05 in	Splice Free Zippable	-20 °C	105 °C	Unshielded	1.85 in	Poly-Vinyl Chloride (PVC)	37		300 V	7 Strands	36 AWG	28 AWG	Flat Cable	20462 Style UL	1 GOhms	Copper Tinned
3M Electronic Specialty 3302/36 300SF	0.042 in	Multiple	300 ft	0.05 in	Splice Free Zippable	-20 °C	105 °C	Unshielded	1.8 in	Poly-Vinyl Chloride (PVC)	36		300 V	7 Strands	36 AWG	28 AWG	Flat Cable	20462 Style UL	1 GOhms	Copper Tinned

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

3302/36 300SF | Datasheet

Datasheet
