Specification	2345808-3

Card Thickness	0.062 in
Card Type	Non Specified, Dual Edge
Contact Finish	Gold
Contact Finish Thickness	30 µin
Contact Material	Copper Alloy
Features	Solder Retention, Pick and Place, Board Guide
Gender	Female
Mounting Type	Right Angle, Surface Mount
Number of Positions	28
Number of Rows	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-55 °C
Pitch	0.024 in
Read Out	Dual
Termination	Solder

2345808 Series

Part	Read Out	Features	Contact Material	Number of Rows	Color	Pitch	Termination	Card Type	Card Thickness	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Contact Finish Thickness	Contact Finish	Gender	Termination Rows	Material - Insulation	Contact Finish Thickness (string set options)	Contact Finish Thickness

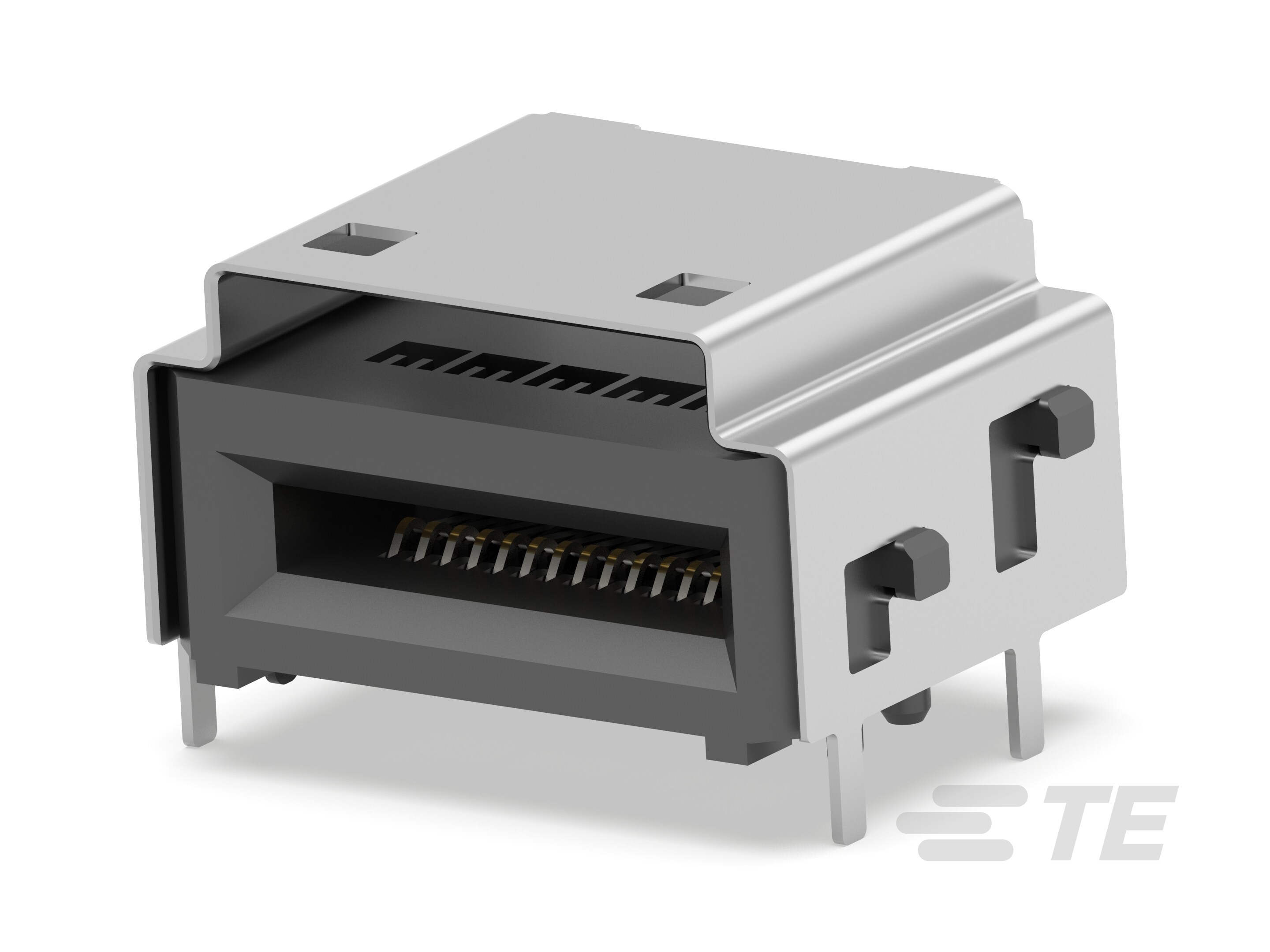

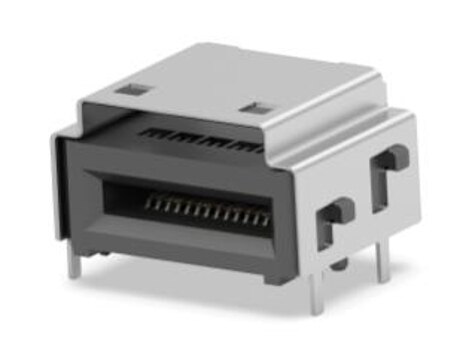

TE Connectivity AMP Connectors 2345808-6	Dual	Board Guide Pick and Place Solder Retention	Copper Alloy	2	Black	0.024 in	Solder	Dual Edge Non Specified	0.062 in	Right Angle Surface Mount	-55 °C	85 °C	28	30 µin	Gold	Female	2 rows	LCP Liquid Crystal Polymer
TE Connectivity AMP Connectors 2345808-3	Dual	Board Guide Pick and Place Solder Retention	Copper Alloy	2		0.024 in	Solder	Dual Edge Non Specified	0.062 in	Right Angle Surface Mount	-55 °C	85 °C	28	30 µin	Gold	Female
TE Connectivity AMP Connectors 2345808-4	Dual	Board Guide Pick and Place Solder Retention	Copper Alloy	2	Black	0.024 in	Solder	Dual Edge Non Specified	0.062 in	Right Angle Surface Mount	-55 °C	85 °C	14 28	0	Gold	Female	2 rows	LCP Liquid Crystal Polymer	Flash	Flash
