307-007-553-103

Active

EDAC Inc.

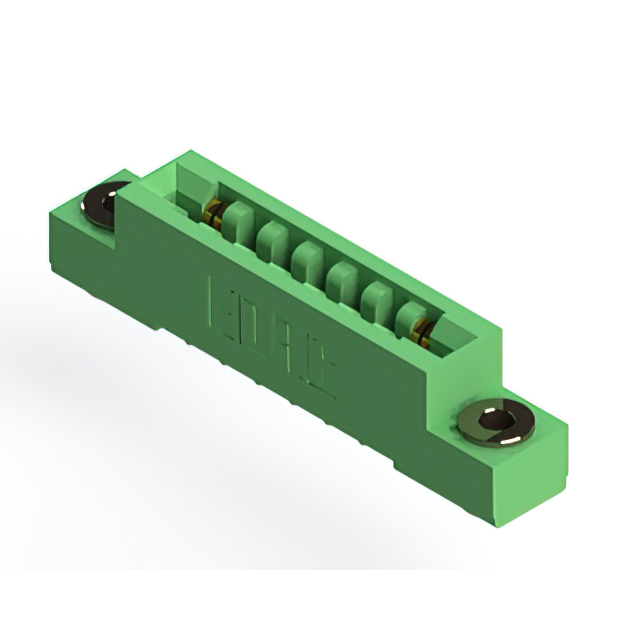

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 7 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

307-007-553-103

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 7 CONTACTS, THROUGH HOLE MOUNT, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	307-007-553-103

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Floating Bobbin, Flush Mount
Flange Feature [diameter]	0.116 in
Flange Feature [diameter]	2.95 mm
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	14
Number of Positions/Bay/Row [custom]	7
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	1

307-007 Series

...

Part	Features	Termination	Flange Feature	Contact Finish	Card Type	Contact Type	Color	Material - Insulation	Termination Rows	Gender	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Pitch [x]	Pitch [x]	Number of Positions/Bay/Row [custom]	Number of Rows	Read Out	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 307-007-501-178	Card Guides	Solder Eyelet(s)	4-40 Flush Mount Threaded Insert Top Opening	Gold	Non Specified - Dual Edge	Semi Bellows	Green	Polyester Thermoplastic	1	Female	14	10 Áin	0.25 Ám	Copper Alloy	Through Hole	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	7	2	Dual
EDAC Inc. 307-007-445-168	Card Guides	Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening	Tin	Non Specified - Single Edge	Semi Bellows	Green	Polyester Thermoplastic	1	Female	7			Copper Alloy	Through Hole	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	7	1	Single
EDAC Inc. 307-007-445-108		Wire Wrap	4-40 Flush Mount Threaded Insert Top Opening	Tin	Non Specified - Single Edge	Semi Bellows	Green	Polyester Thermoplastic	1	Female	7			Copper Alloy	Through Hole	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	7	1	Single
EDAC Inc. 307-007-401-108		Solder Eyelet(s)	4-40 Flush Mount Threaded Insert Top Opening	Tin	Non Specified - Dual Edge	Semi Bellows	Green	Polyester Thermoplastic	1	Female	14			Copper Alloy	Through Hole	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	7	2	Dual
EDAC Inc. 307-007-447-101		Wire Wrap		Tin	Non Specified - Single Edge	Semi Bellows	Green	Polyester Thermoplastic	1	Female	7			Copper Alloy	Through Hole	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	7	1	Single
EDAC Inc. 307-007-401-158	Card Guides	Solder Eyelet(s)	4-40 Flush Mount Threaded Insert Top Opening	Tin	Non Specified - Dual Edge	Semi Bellows	Green	Polyester Thermoplastic	1	Female	14			Copper Alloy	Through Hole	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	7	2	Dual
EDAC Inc. 307-007-559-107		Solder	Flush Mount M3 Threaded Insert Top Opening	Gold	Non Specified - Single Edge	Semi Bellows	Green	Polyester Thermoplastic	1	Female	7	10 Áin	0.25 Ám	Copper Alloy	Through Hole Right Angle	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	7	1	Single
EDAC Inc. 307-007-553-103		Solder	Floating Bobbin Flush Mount	Gold	Non Specified - Dual Edge	Semi Bellows	Green	Polyester Thermoplastic	1	Female	14	10 Áin	0.25 Ám	Copper Alloy	Through Hole Right Angle	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	7	2	Dual	0.116 in	2.95 mm
EDAC Inc. 307-007-459-107		Solder	Flush Mount M3 Threaded Insert Top Opening	Tin	Non Specified - Single Edge	Semi Bellows	Green	Polyester Thermoplastic	1	Female	7			Copper Alloy	Through Hole Right Angle	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	7	1	Single
EDAC Inc. 307-007-505-104		Solder Eyelet(s)	Flush Mount Top Opening Unthreaded	Gold	Non Specified - Single Edge	Semi Bellows	Green	Polyester Thermoplastic	1	Female	7	10 Áin	0.25 Ám	Copper Alloy	Through Hole	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	0.156 in	3.96 mm	7	1	Single	0.156 in	3.96 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 16.36
Newark	Each	1	$ 18.27
		100	$ 11.64
		250	$ 10.64
		500	$ 9.89
		1000	$ 7.82

Description

General part information

307-007 Series

14 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
