MASW-011041-TR0500
ActiveMACOM Technology Solutions

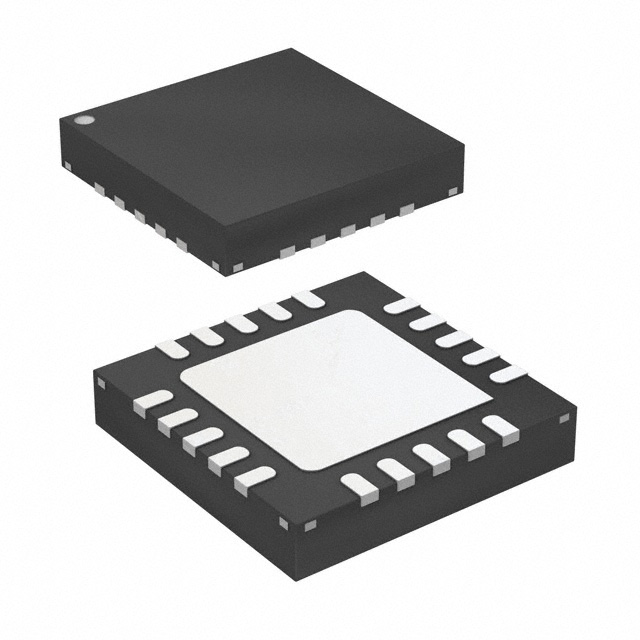

IC RF SWITCH SP3T 1GHZ 20HQFN
Deep-Dive with AI
Search across all available documentation for this part.
MASW-011041-TR0500
ActiveMACOM Technology Solutions
IC RF SWITCH SP3T 1GHZ 20HQFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MASW-011041-TR0500 |
|---|---|
| Circuit | SP3T |
| Frequency Range [Max] | 1 GHz |
| Frequency Range [Min] | 50 MHz |
| Impedance | 50 Ohms |
| Insertion Loss | 0.5 dB |
| Isolation | 40 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 20-LQFN Exposed Pad |
| Supplier Device Package | 20-HQFN (9x9) |
| Test Frequency | 1 GHz |
| Voltage - Supply | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 62.76 | |
| Digi-Reel® | 1 | $ 62.76 | ||
| Tape & Reel (TR) | 500 | $ 49.45 | ||
Description
General part information
MASW-011041 Series
RF Switch IC SP3T 1 GHz 50Ohm 20-HQFN (9x9)
