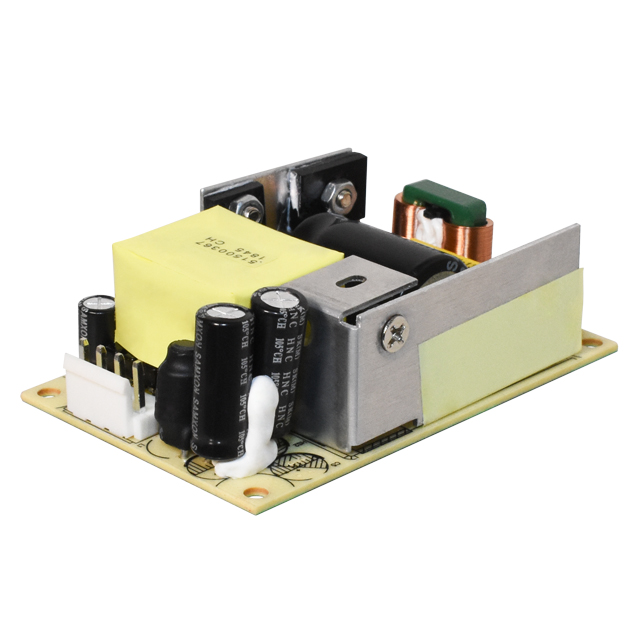

VOF-60C Series

Part	Type	Standard Number	Voltage - Input (DC) Minimum	Voltage - Input (AC) Maximum	Voltage - Input (AC) Minimum	Voltage - Input (DC) Maximum	Voltage - Isolation	Mounting Type	Number of Outputs	Applications	Voltage - Output 1	Features	Efficiency	Approval Agency	Current - Output 1	Operating Temperature (Max)	Operating Temperature (Min)	Size / Dimension Width	Size / Dimension Length	Size / Dimension Height	Power (Watts)
CUI Inc. VOF-60C-S9	Open Frame	55024 55032 Class A 62368-1	100 V	264 V	85 VAC	370 V	3 kV	Chassis Mount	1	ITE (Commercial)	9 V	Universal Input	83 %	CB Scheme EN IEC UL	6.6 A	70 °C	-25 °C	2 in	3 in	1.18 in	59 W
CUI Inc. VOF-60C-S24	Open Frame	55024 55032 Class A 62368-1	100 V	264 V	85 VAC	370 V	3 kV	Chassis Mount	1	ITE (Commercial)	24 V	Universal Input	87 %	CB Scheme EN IEC UL	2.5 A	70 °C	-25 °C	2 in	3 in	1.18 in	60 W
CUI Inc. VOF-60C-S5	Open Frame	55024 55032 Class A 62368-1	100 V	264 V	85 VAC	370 V	3 kV	Chassis Mount	1	ITE (Commercial)	5 V	Universal Input	80 %	CB Scheme EN IEC UL	10 A	70 °C	-25 °C	2 in	3 in	1.18 in	50 W
CUI Inc. VOF-60C-S12	Open Frame	55024 55032 Class A 62368-1	100 V	264 V	85 VAC	370 V	3 kV	Chassis Mount	1	ITE (Commercial)	12 V	Universal Input	85 %	CB Scheme EN IEC UL	5 A	70 °C	-25 °C	2 in	3 in	1.18 in	60 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
