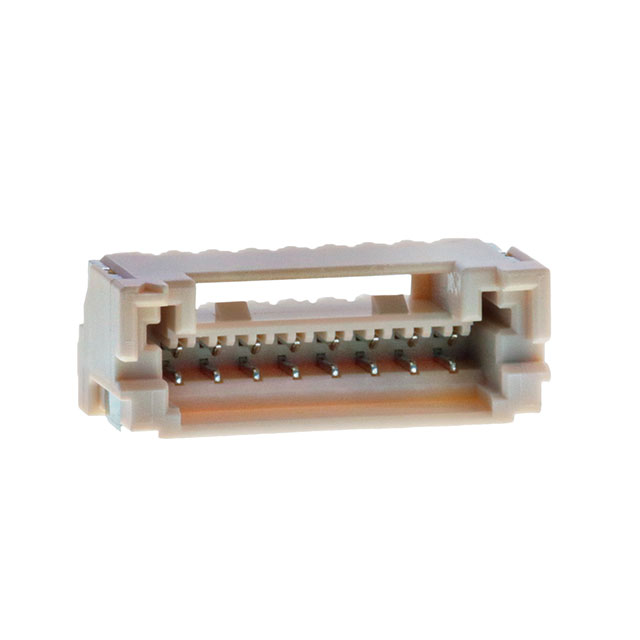

SM08B-ZESS-TB
ActiveJST Sales America Inc.
CONN HEADER SMD R/A 8POS 1.5MM
Deep-Dive with AI
Search across all available documentation for this part.
SM08B-ZESS-TB
ActiveJST Sales America Inc.
CONN HEADER SMD R/A 8POS 1.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM08B-ZESS-TB |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Outer Shroud Contact |
| Current Rating (Amps) | 2 A |
| Fastening Type | Locking Ramp |
| Features | Solder Retention |
| Insulation Color | Natural |
| Insulation Height | 5.8 mm |
| Insulation Height | 0.228 in |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 100 V |
SM08B-ZE Series
| Part | Current Rating (Amps) | Style | Mounting Type | Termination | Contact Type | Features | Number of Rows | Voltage Rating | Insulation Color | Material Flammability Rating | Contact Material | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Height | Insulation Height | Number of Positions Loaded | Fastening Type | Contact Finish - Post | Contact Shape | Connector Type | Shrouding | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JST Sales America Inc. | 2 A | Board to Cable/Wire | Surface Mount Right Angle | Solder | Outer Shroud Contact | Solder Retention | 1 | 100 V | Natural | UL94 V-0 | Copper Alloy | Nylon Polyamide (PA) | -25 °C | 85 °C | 5.8 mm | 0.228 in | All | Locking Ramp | Tin | Rectangular | Header | Shrouded - 4 Wall | 8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.96 | |
| 10 | $ 0.81 | |||
| 100 | $ 0.73 | |||
| 500 | $ 0.60 | |||
| Digi-Reel® | 1 | $ 0.96 | ||
| 10 | $ 0.81 | |||
| 100 | $ 0.73 | |||
| 500 | $ 0.60 | |||
| Tape & Reel (TR) | 1000 | $ 0.53 | ||
| 2000 | $ 0.50 | |||
| 3000 | $ 0.48 | |||
| 5000 | $ 0.46 | |||
| 10000 | $ 0.44 | |||
Description
General part information
SM08B-ZE Series
Connector Header Surface Mount, Right Angle 8 position 0.059" (1.50mm)
