4004-1-5

Active

3M (TC)

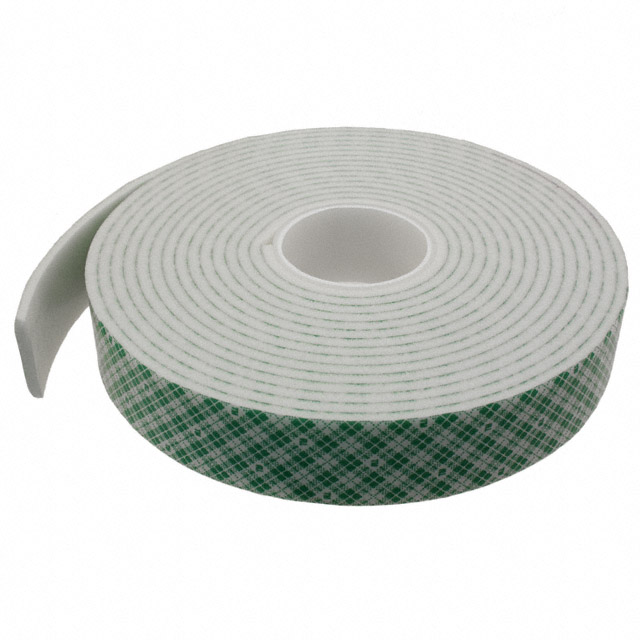

TAPE DBL SIDED NATURAL 1"X5YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE DBL SIDED NATURAL 1"X5YDS

Technical Specifications

Parameters and characteristics for this part

Specification	4004-1-5

Adhesive	Acrylic, 100
Backing, Carrier	Polyurethane Foam
Color	Natural
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Tape Type	Double Coated, Double Sided
Temperature Range [Max]	38 °C
Temperature Range [Max]	100 °F
Temperature Range [Min]	21 °C
Temperature Range [Min]	70 °F
Thickness	250 mils
Thickness	0.25 in
Thickness	0.25 "
Thickness	6.35 mm
Usage	Holding, Mounting, Joining
Width [x]	25.4 mm
Width [x]	1 in

Part	Adhesive	Thickness	Thickness	Thickness	Thickness	Shelf Life Start	Usage	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Min]	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Width [x]	Width [x]	Shelf Life	Length	Length	Length	Tape Type	Color	Backing, Carrier	Width	Width	Width
3M (TC) 4004-1-5	Acrylic 100	250 mils	0.25 in	0.25 "	6.35 mm	Date of Manufacture	Holding Joining Mounting	38 °C	21 °C	100 °F	70 °F	70 °F	21 °C	25.4 mm	1 in	24 Months	4.6 m	15 ft	5 yd	Double Coated Double Sided	Natural	Polyurethane Foam
3M (TC) 4004SQ-12(6)	Acrylic 100	250 mils	0.25 in	0.25 "	6.35 mm	Date of Manufacture	Holding Joining Mounting	38 °C	21 °C	100 °F	70 °F	70 °F	21 °C	304.8 mm	12 in	24 Months	304.8 mm	12 "		Double Coated Double Sided	Natural	Polyurethane Foam
3M (TC) 4004-0.75-5	Acrylic 100	250 mils	0.25 in	0.25 "	6.35 mm	Date of Manufacture	Holding Joining Mounting	38 °C	21 °C	100 °F	70 °F	70 °F	21 °C			24 Months	4.6 m	15 ft	5 yd	Double Coated Double Sided	Natural	Polyurethane Foam	0.75 in	19.05 mm	0.75 in
3M (TC) 4004-0.5-5	Acrylic 100	250 mils	0.25 in	0.25 "	6.35 mm	Date of Manufacture	Holding Joining Mounting	38 °C	21 °C	100 °F	70 °F	70 °F	21 °C			24 Months	4.6 m	15 ft	5 yd	Double Coated Double Sided	Natural	Polyurethane Foam	0.5 in	0.5 in	12.7 mm
3M (TC) 4004-12-5	Acrylic 100	250 mils	0.25 in	0.25 "	6.35 mm	Date of Manufacture	Holding Joining Mounting	38 °C	21 °C	100 °F	70 °F	70 °F	21 °C	304.8 mm	12 in	24 Months	4.6 m	15 ft	5 yd	Double Coated Double Sided	Natural	Polyurethane Foam

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Double Coated, Double Sided Tape Acrylic, 100 Adhesive Natural 1.00" (25.40mm) X 15' (4.6m) 5 yds

Technical documentation and resources
