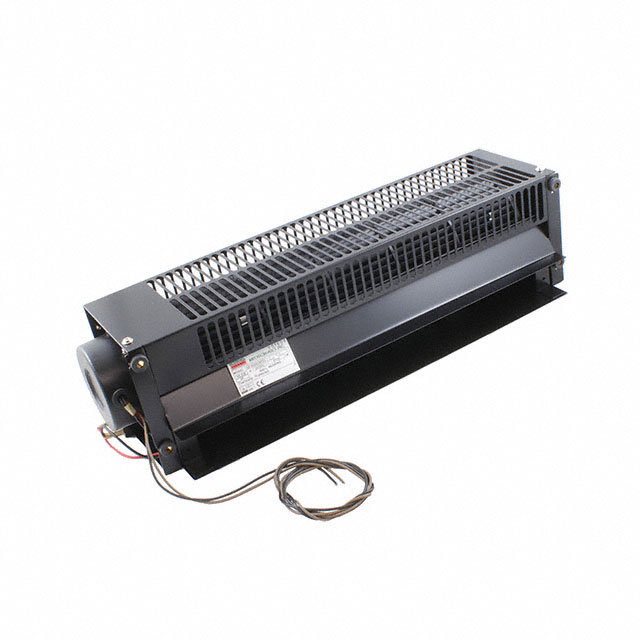

UF9439CBP23H-L

Active

Mechatronics Fan Group

FAN BLWR CF 230VAC 510X150X130MM

Search across all available documentation for this part.

Active

Mechatronics Fan Group

FAN BLWR CF 230VAC 510X150X130MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF9439CBP23H-L	UF9439 Series

Air Flow	318 CFM	318 CFM
Air Flow	8.9 m³/min	8.9 m³/min
Approval Agency	CE, TUV	CE, TUV
Bearing Type	Ball	Ball
Current Rating (Amps)	0.22 A	0.22 - 400 mA
Fan Type	Blower, Cross Flow	Blower, Cross Flow
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Material - Blade	Aluminum	Aluminum
Material - Frame	Steel	Steel
Noise	53 dB	53 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	50 W	50 W
RPM	1600 RPM	1600 RPM
Size / Dimension [x]	510 mm	510 mm
Size / Dimension [y]	130 mm	130 mm
Static Pressure	44.8 Pa	44.8 Pa
Static Pressure	0.18 in H2O	0.18 in H2O
Termination	2 Wire Leads	2 Wire Leads
Voltage - Rated	230 VAC	120 - 230 VAC
Weight	3.5 kg	3.5 kg
Weight	7.7 lbs	7.7 lbs
Width [y]	125 mm	125 mm

FAN BLWR CF 120VAC 510X150X130MM

Part	Material - Frame	Weight	Weight	Material - Blade	RPM	Termination	Air Flow	Air Flow	Voltage - Rated	Current Rating (Amps)	Size / Dimension [y]	Size / Dimension [x]	Approval Agency	Features	Noise	Bearing Type	Power (Watts)	Fan Type	Static Pressure	Static Pressure	Width [y]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]
Mechatronics Fan Group UF9439CBP12H-L	Steel	3.5 kg	7.7 lbs	Aluminum	1600 RPM	2 Wire Leads	318 CFM	8.9 m³/min	120 VAC	400 mA	130 mm	510 mm	CE, TUV	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	53 dB	Ball	50 W	Blower, Cross Flow	44.8 Pa	0.18 in H2O	125 mm	70 °C	70 °C	-40 °C	-40 °C
Mechatronics Fan Group UF9439CBP23H-L	Steel	3.5 kg	7.7 lbs	Aluminum	1600 RPM	2 Wire Leads	318 CFM	8.9 m³/min	230 VAC	0.22 A	130 mm	510 mm	CE, TUV	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	53 dB	Ball	50 W	Blower, Cross Flow	44.8 Pa	0.18 in H2O	125 mm	70 °C	70 °C	-40 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	6	$ 108.08

General part information

Fan Blower, Cross Flow 230VAC Rectangular - 510mm L x 130mm H Ball 318.0 CFM (8.90m³/min) 2 Wire Leads
