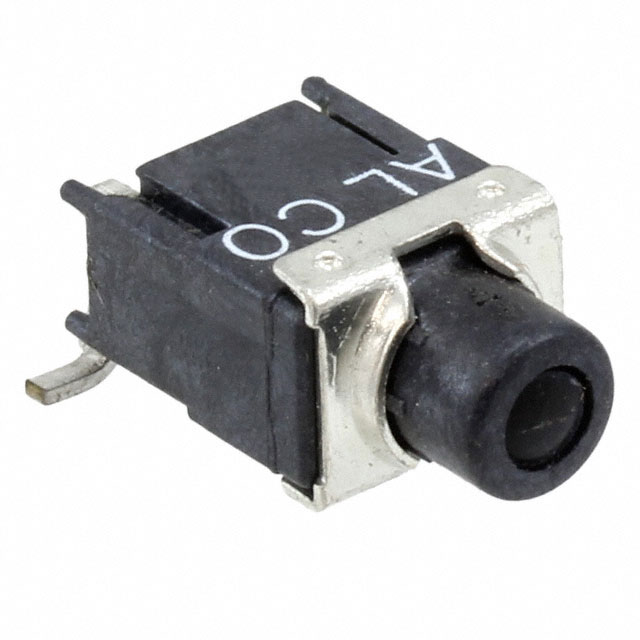

TSPDF11CGSRA0

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSH SPST-NO 0.4VA 20V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSH SPST-NO 0.4VA 20V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Type	Mounting Type	Features	Color - Actuator/Cap	Current Rating (Amps)	Voltage Rating - AC	Switch Function	Electrical Life	Circuit	Voltage Rating - DC	Termination Style	Actuator Type	Actuator Marking
TE Connectivity Raychem Cable Protection TSPDF11CGSRA0	-30 ░C	85 °C	Standard	Surface Mount Right Angle	Process Sealed	Black	0.4 VA	20 V	Off-Mom	80000 Cycles	SPST-NO	20 V	Gull Wing	Flush Plunger Round	No Marking
TE Connectivity Raychem Cable Protection TSPDF11FGPC0	-30 ░C	85 °C	Standard	Through Hole	Process Sealed	Black	0.4 VA	20 V	On-Mom	60000 Cycles	SPDT	20 V	PC Pin	Flush Plunger Round	No Marking

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1600	$ 7.68

General part information

Pushbutton Switch SPST-NO Standard Surface Mount, Right Angle
