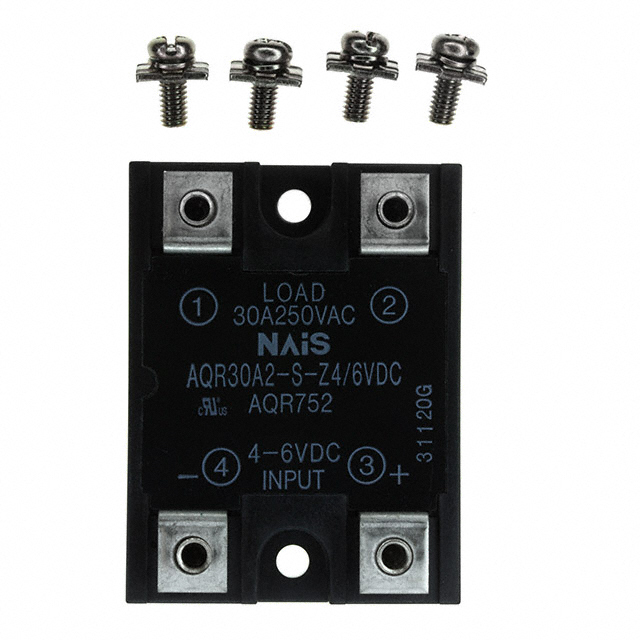

AQR30A2-S-Z4/6VDC
ActivePanasonic Electric Works
SSR RELAY SPST-NO 30A 75-250V
Deep-Dive with AI
Search across all available documentation for this part.
AQR30A2-S-Z4/6VDC
ActivePanasonic Electric Works
SSR RELAY SPST-NO 30A 75-250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AQR30A2-S-Z4/6VDC |
|---|---|
| Approval Agency | CSA, cURus, TUV, UR |
| Load Current | 30 A |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Output Type | AC, Zero Cross |
| Package / Case | Hockey Puck |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 6 V |
| Voltage - Input [Min] | 4 V |
| Voltage - Load [Max] | 250 V |
| Voltage - Load [Min] | 75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 67.58 | |
Description
General part information
AQR30A Series
Solid State SPST-NO (1 Form A) Hockey Puck
