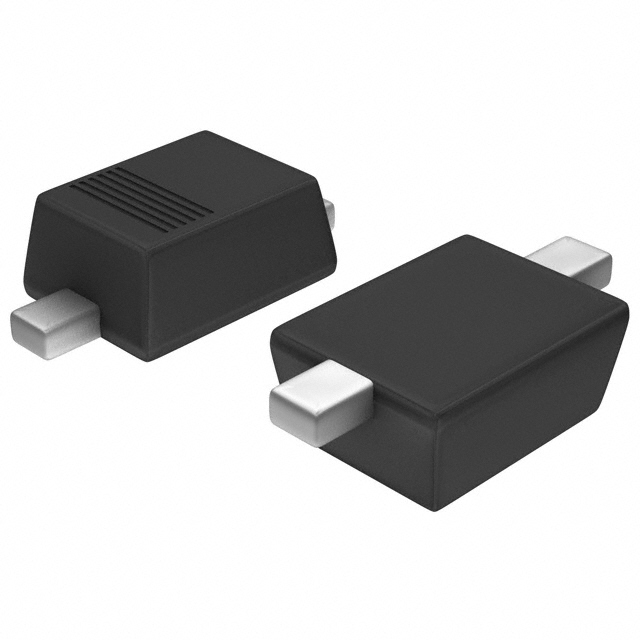

UDZ5V1BF-7 - SC-90_SOD323F

UDZ5V1BF-7

Active
Diodes Inc

ZENER SINGLE DIODE, 5.1 V, 500 MW, SOD-323F, 2 PINS, 150 °C, SURFACE MOUNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetDatasheet+1
UDZ5V1BF-7 - SC-90_SOD323F

UDZ5V1BF-7

Active
Diodes Inc

ZENER SINGLE DIODE, 5.1 V, 500 MW, SOD-323F, 2 PINS, 150 °C, SURFACE MOUNT

Deep-Dive with AI

DocumentsDatasheetDatasheet+1

Technical Specifications

Parameters and characteristics for this part

SpecificationUDZ5V1BF-7
Current - Reverse Leakage @ Vr2 µA
Mounting TypeSurface Mount
Operating Temperature [Max]150 °C
Operating Temperature [Min]-65 ░C
Package / CaseSOD-323F, SC-90
Power - Max [Max]500 mW
Supplier Device PackageSOD-323F
Tolerance2 %
Voltage - Forward (Vf) (Max) @ If950 mV
Voltage - Zener (Nom) (Vz)5.1 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 0.33
10$ 0.23
100$ 0.12
500$ 0.10
1000$ 0.07
Digi-Reel® 1$ 0.33
10$ 0.23
100$ 0.12
500$ 0.10
1000$ 0.07
Tape & Reel (TR) 3000$ 0.06
6000$ 0.06
9000$ 0.05
30000$ 0.05
75000$ 0.04
150000$ 0.04

Description

General part information

UDZ5V1BF Series

SURFACE MOUNT PRECISION ZENER DIODE
