Specification	DHG10I600PM

Current - Average Rectified (Io)	10 A
Current - Reverse Leakage	15 µA
Mounting Type	Through Hole
Operating Temperature - Junction (Max)	150 °C
Operating Temperature - Junction (Min)	-55 °C

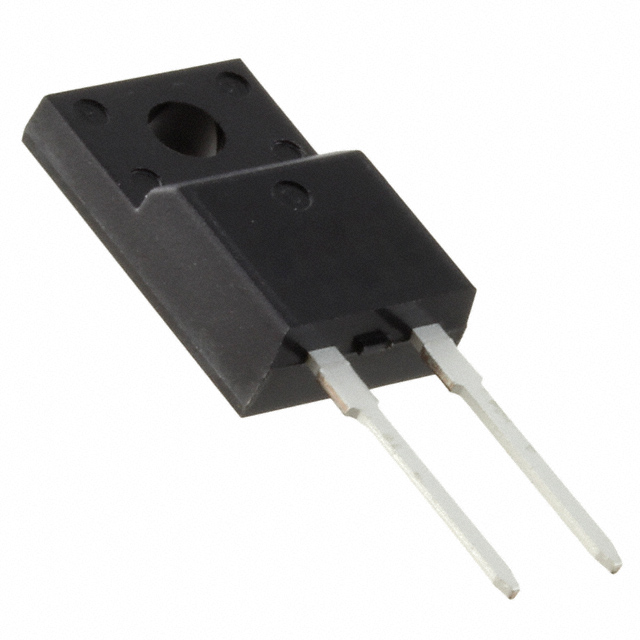

Package / Case	TO-220-2 Full Pack, Isolated Tab
Package Name	TO-220FP
Reverse Recovery Time (trr)	35 ns
Speed - Fast Recovery (Maximum)	500 ns
Speed - Fast Recovery (Minimum)	200 mA
Technology	Standard
Voltage - DC Reverse (Vr) (Max)	600 V
Voltage - Forward (Vf) (Max)	2.35 V

DHG10 Series

Power Diode Disc-Sonic TO-220AB/TO-220FP

Part	Reverse Recovery Time (trr)	Package / Case	Voltage - DC Reverse (Vr) (Max)	Speed - Fast Recovery (Maximum)	Speed - Fast Recovery (Minimum)	Current - Average Rectified (Io)	Operating Temperature - Junction (Max)	Operating Temperature - Junction (Min)	Current - Reverse Leakage	Technology	Mounting Type	Voltage - Forward (Vf) (Max)	Package Name	Capacitance	Diode Pair Count	Diode Configuration	Current - Average Rectified (Io) (per Diode)
LITTELFUSE DHG10I600PM	35 ns	Isolated Tab TO-220-2 Full Pack	600 V	500 ns	200 mA	10 A	150 °C	-55 °C	15 µA	Standard	Through Hole	2.35 V	TO-220FP
LITTELFUSE DHG10I1800PA	300 ns	TO-220-2	1800 V	500 ns	200 mA	10 A	150 °C	-55 °C	50 µA	Standard	Through Hole	2.23 V	TO-220AC	3 pF
LITTELFUSE DHG10I600PA	35 ns	TO-220-2	600 V	500 ns	200 mA	10 A	150 °C	-55 °C	15 µA	Standard	Through Hole	2.35 V	TO-220AC
LITTELFUSE DHG10I1200PA	200 ns	TO-220-2	1200 V	500 ns	200 mA	10 A	150 °C	-55 °C	15 µA	Standard	Through Hole	2.22 V	TO-220AC
LITTELFUSE DHG10C600PB	35 ns	TO-220-3	600 V	500 ns	200 mA		150 °C	-55 °C	10 µA	Standard	Through Hole	2.2 V	TO-220-3		1 pair	Common Cathode	5 A
LITTELFUSE DHG10I1200PM	75 ns	Isolated Tab TO-220-2 Full Pack	1200 V	500 ns	200 mA	10 A	150 °C	-55 °C	15 µA	Standard	Through Hole	2.69 V	TO-220ACFP
