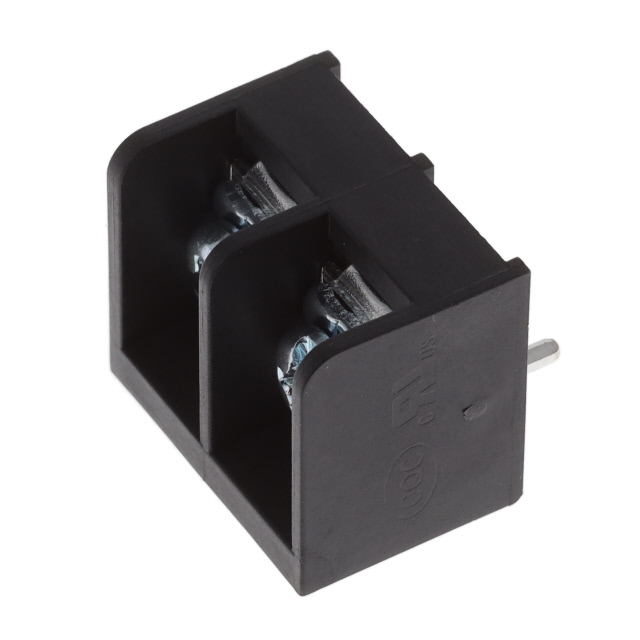

YK4410203000G
ActiveAMPHENOL ANYTEK
CONN BARRIER STRIP 2CIRC 0.374"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
YK4410203000G
ActiveAMPHENOL ANYTEK
CONN BARRIER STRIP 2CIRC 0.374"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | YK4410203000G | YK441 Series |
|---|---|---|
| Barrier Type | 3 Wall (Tri) | 3 Wall (Tri) |
| Bottom Termination | PC Pin | PC Pin |
| Color | Black | Black |
| Current Rating (Amps) | 30 A | 30 A |
| Material - Insulation | Thermoplastic | Thermoplastic |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Circuits | 2 | 2 - 30 |
| Number of Circuits | - | 8 |
| Number of Rows | 1 | 1 |
| Number of Wire Entries | 2 | 2 - 30 |
| Number of Wire Entries | - | 22 - 27 |
| Operating Temperature [Max] | 115 °C | 115 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 0.374 in | 0.374 in |
| Pitch [x] | 9.5 mm | 9.5 mm |
| Terminal Block Type | Barrier Block | Barrier Block |
| Terminal Screw Finish | Zinc | Zinc |
| Terminal Screw Material | Steel | Steel |
| Top Termination | Screws with Captive Plate | Screws with Captive Plate |
| Voltage Rating | 300 VDC | 300 VDC |
| Wire Gauge [Max] | 22 AWG | 22 AWG |
| Wire Gauge [Min] | 10 AWG | 10 AWG |
YK441 Series
CONN BARRIER STRP 27CIRC 0.374"
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Terminal Screw Material | Terminal Screw Finish | Material Flammability Rating | Terminal Block Type | Pitch [x] | Pitch [x] | Bottom Termination | Current Rating (Amps) | Number of Wire Entries [custom] | Material - Insulation | Number of Circuits | Wire Gauge [Max] | Wire Gauge [Min] | Color | Barrier Type | Top Termination | Voltage Rating | Number of Rows | Number of Wire Entries | Number of Circuits [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AMPHENOL ANYTEK YK4412703000G | Through Hole | -40 °C | 115 °C | Steel | Zinc | UL94 V-0 | Barrier Block | 0.374 in | 9.5 mm | PC Pin | 30 A | 27 | Thermoplastic | 27 | 22 AWG | 10 AWG | Black | 3 Wall (Tri) | Screws with Captive Plate | 300 VDC | 1 | ||
AMPHENOL ANYTEK YK4410403000G | Through Hole | -40 °C | 115 °C | Steel | Zinc | UL94 V-0 | Barrier Block | 0.374 in | 9.5 mm | PC Pin | 30 A | Thermoplastic | 4 | 22 AWG | 10 AWG | Black | 3 Wall (Tri) | Screws with Captive Plate | 300 VDC | 1 | 4 | ||
AMPHENOL ANYTEK YK4410803000G | Through Hole | -40 °C | 115 °C | Steel | Zinc | UL94 V-0 | Barrier Block | 0.374 in | 9.5 mm | PC Pin | 30 A | Thermoplastic | 22 AWG | 10 AWG | Black | 3 Wall (Tri) | Screws with Captive Plate | 300 VDC | 1 | 8 | 8 | ||
AMPHENOL ANYTEK YK4410503000G | Through Hole | -40 °C | 115 °C | Steel | Zinc | UL94 V-0 | Barrier Block | 0.374 in | 9.5 mm | PC Pin | 30 A | Thermoplastic | 5 | 22 AWG | 10 AWG | Black | 3 Wall (Tri) | Screws with Captive Plate | 300 VDC | 1 | 5 | ||
AMPHENOL ANYTEK YK4410603000G | Through Hole | -40 °C | 115 °C | Steel | Zinc | UL94 V-0 | Barrier Block | 0.374 in | 9.5 mm | PC Pin | 30 A | Thermoplastic | 6 | 22 AWG | 10 AWG | Black | 3 Wall (Tri) | Screws with Captive Plate | 300 VDC | 1 | 6 | ||
AMPHENOL ANYTEK YK4411803000G | Through Hole | -40 °C | 115 °C | Steel | Zinc | UL94 V-0 | Barrier Block | 0.374 in | 9.5 mm | PC Pin | 30 A | Thermoplastic | 18 | 22 AWG | 10 AWG | Black | 3 Wall (Tri) | Screws with Captive Plate | 300 VDC | 1 | 18 | ||
AMPHENOL ANYTEK YK4411603000G | Through Hole | -40 °C | 115 °C | Steel | Zinc | UL94 V-0 | Barrier Block | 0.374 in | 9.5 mm | PC Pin | 30 A | Thermoplastic | 16 | 22 AWG | 10 AWG | Black | 3 Wall (Tri) | Screws with Captive Plate | 300 VDC | 1 | 16 | ||
AMPHENOL ANYTEK YK4410303000G | Through Hole | -40 °C | 115 °C | Steel | Zinc | UL94 V-0 | Barrier Block | 0.374 in | 9.5 mm | PC Pin | 30 A | Thermoplastic | 3 | 22 AWG | 10 AWG | Black | 3 Wall (Tri) | Screws with Captive Plate | 300 VDC | 1 | 3 | ||
AMPHENOL ANYTEK YK4413003000G | Through Hole | -40 °C | 115 °C | Steel | Zinc | UL94 V-0 | Barrier Block | 0.374 in | 9.5 mm | PC Pin | 30 A | Thermoplastic | 30 | 22 AWG | 10 AWG | Black | 3 Wall (Tri) | Screws with Captive Plate | 300 VDC | 1 | 30 | ||
AMPHENOL ANYTEK YK4412603000G | Through Hole | -40 °C | 115 °C | Steel | Zinc | UL94 V-0 | Barrier Block | 0.374 in | 9.5 mm | PC Pin | 30 A | Thermoplastic | 26 | 22 AWG | 10 AWG | Black | 3 Wall (Tri) | Screws with Captive Plate | 300 VDC | 1 | 26 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.69 | |
| 10 | $ 0.43 | |||
| 25 | $ 0.37 | |||
| 50 | $ 0.33 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.26 | |||
| 2080 | $ 0.24 | |||
Description
General part information
YK441 Series
2 Circuit 0.374" (9.50mm) Barrier Block Connector Screws with Captive Plate
