YK4410403000G

Active

AMPHENOL ANYTEK

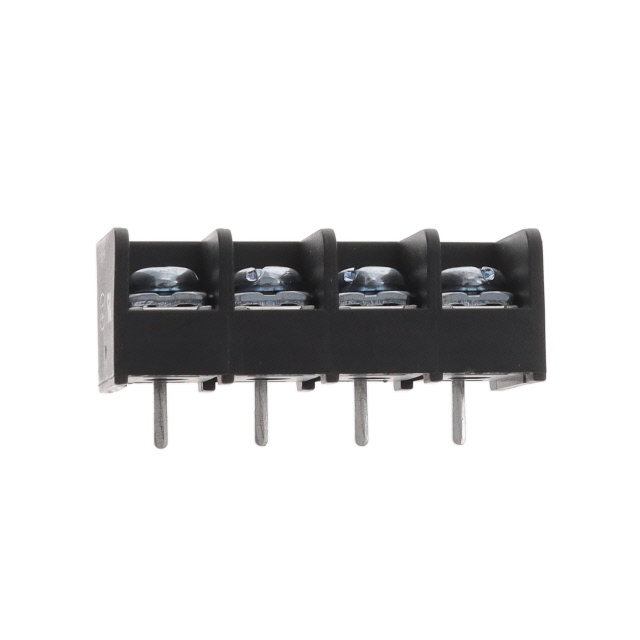

CONN BARRIER STRIP 4CIRC 0.374"

Deep-Dive with AI

Search across all available documentation for this part.

YK4410403000G

Active

AMPHENOL ANYTEK

CONN BARRIER STRIP 4CIRC 0.374"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.55
		10	$ 1.09
		25	$ 1.02
		50	$ 0.92
		100	$ 0.92
		250	$ 0.78
		500	$ 0.74
		2000	$ 0.59
		6000	$ 0.53

Description

General part information

YK441 Series

4 Circuit 0.374" (9.50mm) Barrier Block Connector Screws with Captive Plate

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	YK4410403000G	YK441 Series

Barrier Type	3 Wall (Tri)	3 Wall (Tri)
Bottom Termination	PC Pin	PC Pin
Color	Black	Black
Current Rating (Amps)	30 A	30 A
Material - Insulation	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Circuits	4	2 - 30
Number of Circuits	-	8
Number of Rows	1	1
Number of Wire Entries	4	2 - 30
Number of Wire Entries	-	22 - 27
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.374 in	0.374 in
Pitch [x]	9.5 mm	9.5 mm
Terminal Block Type	Barrier Block	Barrier Block
Terminal Screw Finish	Zinc	Zinc
Terminal Screw Material	Steel	Steel
Top Termination	Screws with Captive Plate	Screws with Captive Plate
Voltage Rating	300 VDC	300 VDC
Wire Gauge [Max]	22 AWG	22 AWG
Wire Gauge [Min]	10 AWG	10 AWG

YK441 Series

CONN BARRIER STRP 27CIRC 0.374"

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Terminal Screw Material	Terminal Screw Finish	Material Flammability Rating	Terminal Block Type	Pitch [x]	Pitch [x]	Bottom Termination	Current Rating (Amps)	Number of Wire Entries [custom]	Material - Insulation	Number of Circuits	Wire Gauge [Max]	Wire Gauge [Min]	Color	Barrier Type	Top Termination	Voltage Rating	Number of Rows	Number of Wire Entries	Number of Circuits [custom]
AMPHENOL ANYTEK YK4412703000G	Through Hole	-40 °C	115 °C	Steel	Zinc	UL94 V-0	Barrier Block	0.374 in	9.5 mm	PC Pin	30 A	27	Thermoplastic	27	22 AWG	10 AWG	Black	3 Wall (Tri)	Screws with Captive Plate	300 VDC	1
AMPHENOL ANYTEK YK4410403000G	Through Hole	-40 °C	115 °C	Steel	Zinc	UL94 V-0	Barrier Block	0.374 in	9.5 mm	PC Pin	30 A		Thermoplastic	4	22 AWG	10 AWG	Black	3 Wall (Tri)	Screws with Captive Plate	300 VDC	1	4
AMPHENOL ANYTEK YK4410803000G	Through Hole	-40 °C	115 °C	Steel	Zinc	UL94 V-0	Barrier Block	0.374 in	9.5 mm	PC Pin	30 A		Thermoplastic		22 AWG	10 AWG	Black	3 Wall (Tri)	Screws with Captive Plate	300 VDC	1	8	8
AMPHENOL ANYTEK YK4410503000G	Through Hole	-40 °C	115 °C	Steel	Zinc	UL94 V-0	Barrier Block	0.374 in	9.5 mm	PC Pin	30 A		Thermoplastic	5	22 AWG	10 AWG	Black	3 Wall (Tri)	Screws with Captive Plate	300 VDC	1	5
AMPHENOL ANYTEK YK4410603000G	Through Hole	-40 °C	115 °C	Steel	Zinc	UL94 V-0	Barrier Block	0.374 in	9.5 mm	PC Pin	30 A		Thermoplastic	6	22 AWG	10 AWG	Black	3 Wall (Tri)	Screws with Captive Plate	300 VDC	1	6
AMPHENOL ANYTEK YK4411803000G	Through Hole	-40 °C	115 °C	Steel	Zinc	UL94 V-0	Barrier Block	0.374 in	9.5 mm	PC Pin	30 A		Thermoplastic	18	22 AWG	10 AWG	Black	3 Wall (Tri)	Screws with Captive Plate	300 VDC	1	18
AMPHENOL ANYTEK YK4411603000G	Through Hole	-40 °C	115 °C	Steel	Zinc	UL94 V-0	Barrier Block	0.374 in	9.5 mm	PC Pin	30 A		Thermoplastic	16	22 AWG	10 AWG	Black	3 Wall (Tri)	Screws with Captive Plate	300 VDC	1	16
AMPHENOL ANYTEK YK4410303000G	Through Hole	-40 °C	115 °C	Steel	Zinc	UL94 V-0	Barrier Block	0.374 in	9.5 mm	PC Pin	30 A		Thermoplastic	3	22 AWG	10 AWG	Black	3 Wall (Tri)	Screws with Captive Plate	300 VDC	1	3
AMPHENOL ANYTEK YK4413003000G	Through Hole	-40 °C	115 °C	Steel	Zinc	UL94 V-0	Barrier Block	0.374 in	9.5 mm	PC Pin	30 A		Thermoplastic	30	22 AWG	10 AWG	Black	3 Wall (Tri)	Screws with Captive Plate	300 VDC	1	30
AMPHENOL ANYTEK YK4412603000G	Through Hole	-40 °C	115 °C	Steel	Zinc	UL94 V-0	Barrier Block	0.374 in	9.5 mm	PC Pin	30 A		Thermoplastic	26	22 AWG	10 AWG	Black	3 Wall (Tri)	Screws with Captive Plate	300 VDC	1	26
