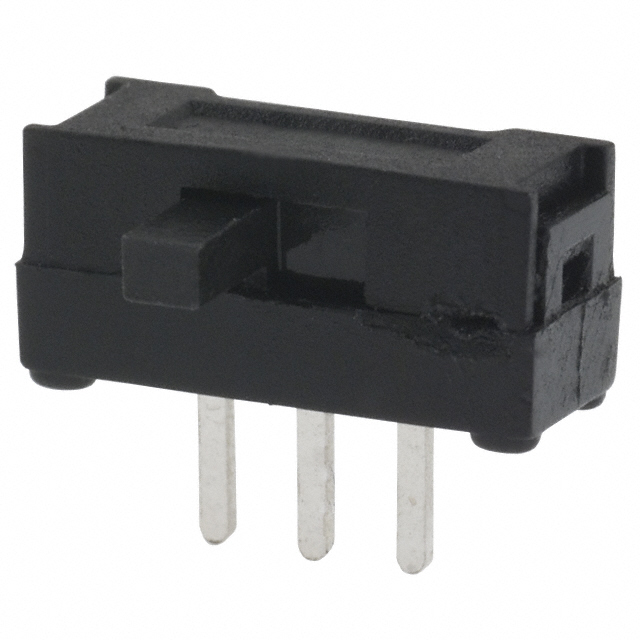

SSJ12R

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH SLIDE SPDT 100MA 12V

Search across all available documentation for this part.

Obsolete

TE Connectivity Raychem Cable Protection

SWITCH SLIDE SPDT 100MA 12V

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Termination Style	Switch Function	Contact Timing	Features	Actuator Material	Contact Finish	Actuator Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Voltage Rating - DC	Contact Material	Actuator Type	Current Rating (Amps)	Circuit	Operating Force	Switch Travel	Mechanical Life
TE Connectivity Raychem Cable Protection SSJ12R	Through Hole Right Angle	PC Pin	On-On	Shorting	Epoxy Sealed Terminals	Nylon 6/6 Polyamide (PA66)	Silver	2.5 mm	-20 C	70 °C	10000 Cycles	12 V	Copper Alloy	Standard	100 mA	SPDT	0.25 kgf	2 mm	10000 Steps
TE Connectivity Raychem Cable Protection SSJ12	Through Hole	PC Pin	On-On	Shorting	Epoxy Sealed Terminals	Nylon 6/6 Polyamide (PA66)	Silver	2 mm	-20 C	70 °C	10000 Cycles	12 V	Copper Alloy	Standard	100 mA	SPDT	0.25 kgf	2 mm	10000 Steps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Slide Switch SPDT Through Hole, Right Angle
