TMA-9MS-5MS-00

Active

CarlisleIT

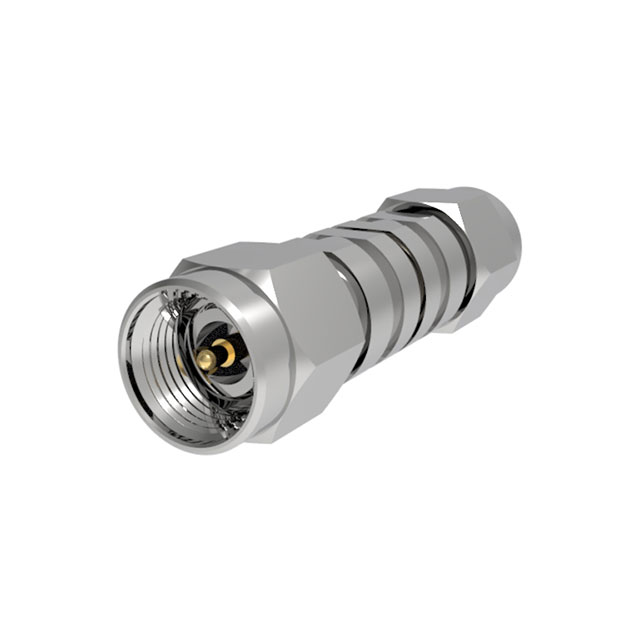

MW ADAPTER 2.92(M) TO 3.5(M)

Search across all available documentation for this part.

Active

CarlisleIT

MW ADAPTER 2.92(M) TO 3.5(M)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 2.92mm (OS-2.9) Plug, Male Pin To 3.5mm Plug, Male Pin 50 Ohms

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	TMA-9MS-5MS-00	TMA-9MS Series

Adapter Series [Max]	3.5 mm	2.92 - 3.5 mm
Adapter Series [Min]	2.92 mm	2.92 mm
Adapter Type	Plug to Plug	Plug to Jack, Plug to Plug
Body Material	Stainless Steel	Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Gender	Male to Male	Male to Male
Conversion Type	Between Series	Between Series, Same Series
Convert From (Adapter End)	2.92 mm	2.92 mm
Convert To (Adapter End)	-	3.5mm Jack, Female Socket, OS-2.9 Jack, Female Socket, 2.92mm (OS-2.9) Plug, Male Pin
Convert To (Adapter End)	-	2.92 mm
Frequency - Max [Max]	26.5 GHz	26.5 - 40 GHz
Impedance	50 Ohms	50 Ohms
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Style	Straight	Straight

MW ADAPTER 2.92(M) TO 3.5(F)

Part	Adapter Series [Max]	Adapter Series [Min]	Center Contact Material	Convert To (Adapter End)	Impedance	Mounting Type	Adapter Type	Conversion Type	Style	Convert From (Adapter End)	Body Material	Frequency - Max [Max]	Center Gender	Convert To (Adapter End)
CarlisleIT TMA-9MS-5FS-00	3.5 mm	2.92 mm	Beryllium Copper	3.5mm Jack, Female Socket	50 Ohms	Free Hanging (In-Line)	Plug to Jack	Between Series	Straight	2.92 mm	Stainless Steel	26.5 GHz
CarlisleIT TMA-9MS-5MS-00	3.5 mm	2.92 mm	Beryllium Copper		50 Ohms	Free Hanging (In-Line)	Plug to Plug	Between Series	Straight	2.92 mm	Stainless Steel	26.5 GHz	Male to Male
CarlisleIT TMA-9MS-9FS-00	2.92 mm	2.92 mm	Beryllium Copper	OS-2.9 Jack, Female Socket	50 Ohms	Free Hanging (In-Line)	Plug to Jack	Same Series	Straight	2.92 mm	Stainless Steel	40 GHz		2.92 mm
CarlisleIT TMA-9MS-9MS-00	2.92 mm	2.92 mm	Beryllium Copper	2.92mm (OS-2.9) Plug, Male Pin	50 Ohms	Free Hanging (In-Line)	Plug to Plug	Same Series	Straight	2.92 mm	Stainless Steel	40 GHz	Male to Male
CarlisleIT TMA-9MS-5MS-00	3.5 mm	2.92 mm	Beryllium Copper		50 Ohms	Free Hanging (In-Line)	Plug to Plug	Between Series	Straight	2.92 mm	Stainless Steel	26.5 GHz	Male to Male
