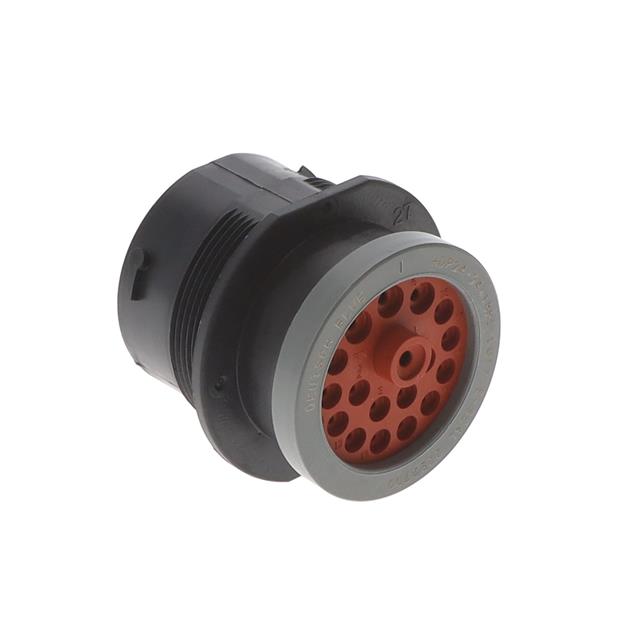

HDP24-24-18PE-L017

HDP24-24-18PE-L017

Unknown
TE Connectivity AMP Connectors

REC, 18P, BLK, E, RNG, 8/12/16, P

Find alt
HDP24-24-18PE-L017

HDP24-24-18PE-L017

Unknown
TE Connectivity AMP Connectors

REC, 18P, BLK, E, RNG, 8/12/16, P

Find alt

Description

General part information

DEUTSCH HDP Series

18 Position Housing, Housing for Male Terminals, Wire-to-Panel, Sealable, Black, Wire & Cable, Power, Panel Mount, -55 – 125 °C [-67 – 257 °F], Hybrid

Technical Specifications

Parameters and characteristics for this part

SpecificationHDP24-24-18PE-L017
Connector TypeReceptacle Housing
Contact ShapeCircular
Contact Size8, 16, 12
Contact TypeCrimp
Fastening TypeBayonet Lock
FeaturesRing Adapter, Dust Cap
Housing ColorBlack
Ingress Protection DescriptionDust Tight, Waterproof
Ingress Protection IP RatingIP68
Insert MaterialPolyetherimide, PEI
Material Flammability RatingUL94 V-1
Mounting FeatureBulkhead, Front Side Nut
Mounting TypePanel Mount
NoteContacts Not Included, Jam Nut Not Included
Number of Positions18
Operating Temperature (Max)125 °C
Operating Temperature (Min)-55 °C
OrientationKeyed
Shell MaterialGlass Filled, Nylon 6/6, Polyamide (PA66)
Shell Size - Insert Length24 mm
Shell Size - Insert Width18 mm
ShieldingUnshielded
TypeFor Male Pins
