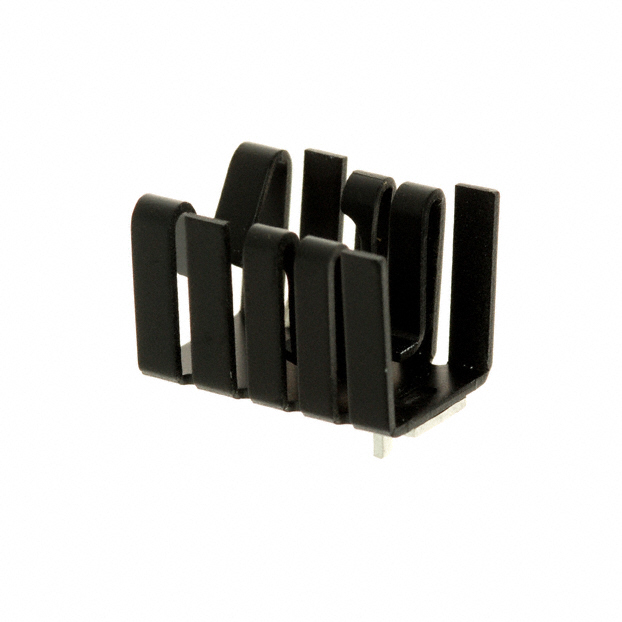

262-75ABE-05

Active

Wakefield-Vette

HEATSINK VERT/HORIZ BLACK TO-220

Search across all available documentation for this part.

Active

Wakefield-Vette

HEATSINK VERT/HORIZ BLACK TO-220

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	262-75ABE-05	262-75 Series

Attachment Method	Press Fit, PC Pin	Press Fit, PC Pin
Fin Height [z]	12.7 mm	12.7 mm
Fin Height [z]	0.5 in	0.5 in
Length	19.05 mm	19.05 mm
Length	0.75 in	0.75 in
Material	Aluminum	Aluminum
Material Finish	Black Anodized	Black Anodized
Package Cooled	TO-220	TO-220
Power Dissipation @ Temperature Rise	80 °C, 3 W	3 - 80 °C
Shape	Rectangular, Fins	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	10 °C/W, 200 LFM	10 - 200 °C/W
Thermal Resistance @ Natural	26.7 °C/W	26.7 °C/W
Type	Board Level	Board Level, Vertical, Board Level
Width [y]	14.47 mm	14.47 mm
Width [y]	0.57 in	0.57 in

HEATSINK VERT/HORIZ BLACK TO-220

Part	Length	Length	Package Cooled	Attachment Method	Width [y]	Width [y]	Shape	Type	Material Finish	Thermal Resistance @ Forced Air Flow	Fin Height [z]	Fin Height [z]	Thermal Resistance @ Natural	Power Dissipation @ Temperature Rise	Material
Wakefield-Vette 262-75ABE01	19.05 mm	0.75 in	TO-220	PC Pin, Press Fit	14.47 mm	0.57 in	Rectangular, Fins	Board Level, Vertical	Black Anodized	10 °C/W, 200 LFM	12.7 mm	0.5 in	26.7 °C/W	3 W, 80 °C	Aluminum
Wakefield-Vette 262-75ABE-05	19.05 mm	0.75 in	TO-220	PC Pin, Press Fit	14.47 mm	0.57 in	Rectangular, Fins	Board Level	Black Anodized	10 °C/W, 200 LFM	12.7 mm	0.5 in	26.7 °C/W	3 W, 80 °C	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-220 Aluminum 3.0W @ 80°C Board Level
