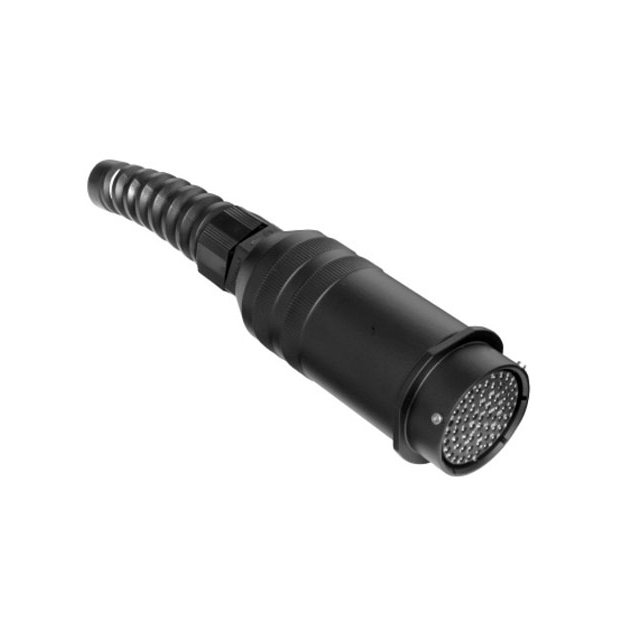

Specification	MP-6211-61S

Applications	Audio, Lighting
Cable Opening (Max)	0.709 in
Cable Opening (Min)	0.512 in
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating	7.5 A
Fastening Type	Bayonet Lock
Features	Backshell, PG Adapter, Strain Relief
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	61
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Black
Shell Material	Aluminum Die Cast
Shell Size - Insert (Maximum)	61
Shell Size - Insert (Minimum)	24
Shielding	Unshielded
Termination	Solder Cup

MP6211 Series

Part	Fastening Type	Cable Opening (Min)	Cable Opening (Max)	Number of Positions	Shielding	Insert Material	Features	Mounting Type	Applications	Shell Size - Insert (Maximum)	Shell Size - Insert (Minimum)	Ingress Protection Description	Ingress Protection IP Rating	Orientation	Color	Shell Material	Shell Finish	Current Rating	Connector Type	Termination	Contact Finish - Mating	Contact Material	Primary Material	Operating Temperature (Max)	Operating Temperature (Min)
McGill Microwave Systems MP-6211-61S	Bayonet Lock	0.512 in	0.709 in	61	Unshielded	Neoprene	Backshell PG Adapter Strain Relief	Free Hanging (In-Line)	Audio Lighting	61	24	Dust Tight Waterproof	IP67	Keyed	Black	Aluminum Die Cast	Black	7.5 A	Female Sockets Receptacle	Solder Cup	Gold	Brass	Metal	125 °C	-55 °C
