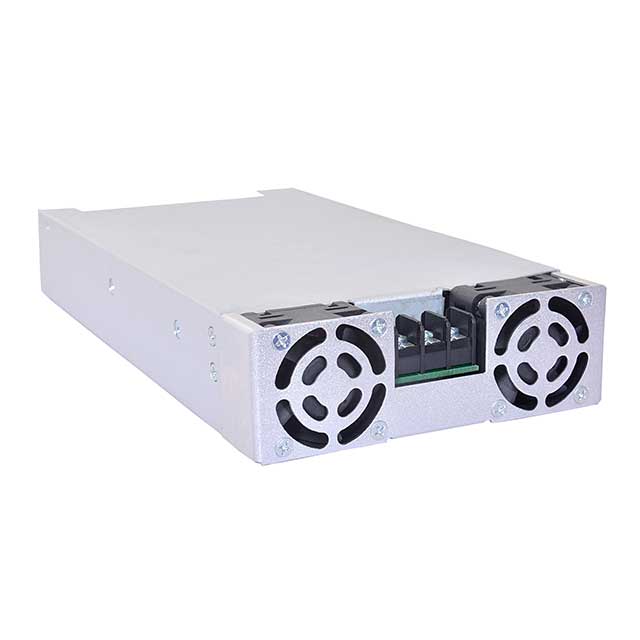

ABE1000-1T24

Active

Bel Power Solutions

AC/DC POWER SUPPLY SINGLE-OUT 24V 41.67A 1000W 15-PIN

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC POWER SUPPLY SINGLE-OUT 24V 41.67A 1000W 15-PIN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 311.69

General part information

Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC, 120 ~ 390 VDC Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	ABE1000-1T24	ABE1000 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, NEMKO	CE, NEMKO
Current - Output 1	41.66 A	20.83 - 41.67 A
Efficiency	93 %	93 %
Features	Load Sharing, PFC, Adjustable Output, Remote On/Off, Universal Input, Remote Sense, Standby Output	Load Sharing, PFC, Adjustable Output, Remote On/Off, Universal Input, Remote Sense, Standby Output
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Power (Watts)	1 kW	1 - 500 kW
Size / Dimension [x]	9.51 in	9.51 in
Size / Dimension [x]	241.6 mm	241.6 mm
Size / Dimension [y]	127 mm	127 mm
Size / Dimension [y]	5 "	5 "
Size / Dimension [z]	1.61 "	1.61 "
Size / Dimension [z]	41 mm	41 mm
Type	Enclosed	Enclosed
Voltage - Input [Max]	264 VAC, 390 VDC	264 - 390 VAC
Voltage - Input [Min]	120 VDC, 85 VAC	85 - 120 VDC
Voltage - Isolation	4000 V	4000 V
Voltage - Output 1	24 V	12 - 48 V

POWER SUPPLY, AC-DC, 48V, 20.83A

Part	Efficiency	Features	Voltage - Isolation	Approval Agency	Current - Output 1	Mounting Type	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Type	Applications
Bel Power Solutions ABE1000-1T48	93 %	Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	4000 V	CE, NEMKO	20.83 A	Chassis Mount	1	9.51 in	1.61 "	127 mm	41 mm	5 "	241.6 mm	48 V	85 VAC, 120 VDC	264 VAC, 390 VDC	1 kW	Enclosed	ITE (Commercial)
Bel Power Solutions ABE1000-1T12	93 %	Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	4000 V	CE, NEMKO	41.67 A	Chassis Mount	1	9.51 in	1.61 "	127 mm	41 mm	5 "	241.6 mm	12 V	85 VAC, 120 VDC	264 VAC, 390 VDC	500 W	Enclosed	ITE (Commercial)
Bel Power Solutions ABE1000-1T24	93 %	Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input	4000 V	CE, NEMKO	41.66 A	Chassis Mount	1	9.51 in	1.61 "	127 mm	41 mm	5 "	241.6 mm	24 V	85 VAC, 120 VDC	264 VAC, 390 VDC	1 kW	Enclosed	ITE (Commercial)
