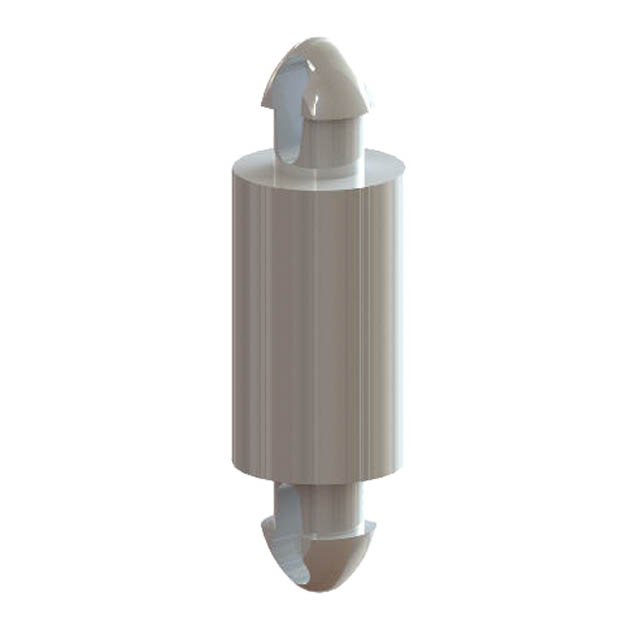

MDLSP1-08M-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 8MM
Deep-Dive with AI
Search across all available documentation for this part.
MDLSP1-08M-01
ActiveEssentra Access Solutions
BRD SPT SNAP LOCK NYLON 8MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MDLSP1-08M-01 |
|---|---|
| Between Board Height [z] | 0.315 in |
| Between Board Height [z] | 8 mm |
| Holding Type | Snap Lock |
| Length - Overall [x] | 15.3 mm |
| Length - Overall [x] | 0.602 in |
| Material | Nylon |
| Mounting Hole Diameter [diameter] | 2.5 mm |
| Mounting Hole Diameter [diameter] | 0.098 in |
| Mounting Panel Thickness | 0.065 in |
| Mounting Panel Thickness | 1.65 mm |
| Mounting Type | Snap Lock |
| Support Panel Thickness [custom] | 0.065 in |
| Support Panel Thickness [custom] | 1.65 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.46 | |
| 5 | $ 0.38 | |||
| 10 | $ 0.35 | |||
| 25 | $ 0.32 | |||
| 50 | $ 0.30 | |||
| 100 | $ 0.28 | |||
| 250 | $ 0.26 | |||
| 500 | $ 0.24 | |||
| 1000 | $ 0.23 | |||
Description
General part information
MDLSP1 Series
Board Support Snap Lock / Snap Lock Nylon 0.315" (8.00mm)
Documents
Technical documentation and resources
No documents available
