Specification	132366

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	18 GHz
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	End Launch, Board Edge
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder

1323 Series

Part	Shield Termination	Fastening Type	Connector Type	Frequency - Max	Impedance	Center Contact Material	Housing Color	Mounting Type	Connector Style	Number of Ports	Contact Termination	Cable Group Diameter (Semi Rigid)	Cable Group	Body Finish	Dielectric Material	Center Contact Plating	Body Material	Includes Total Count	Includes	Operating Temperature (Min)	Operating Temperature (Max)	Mating Cycles	Contact Material	Contact Finish	Mounting Feature	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Style	Adapter Type	Center Gender	Conversion Type	Adapter Series	Convert From (Adapter End)
McGill Microwave Systems 132344	Solder	Threaded	Male Pin Plug	18 GHz	50 Ohm	Brass	Gold	Free Hanging (In-Line) Right Angle	SMA	1	Solder	0.25 in	RG-401	Gold	Polytetrafluoroethylene (PTFE)	Gold	Brass	2 pcs	Connector End Cap	-65 °C	165 °C	500 cycles

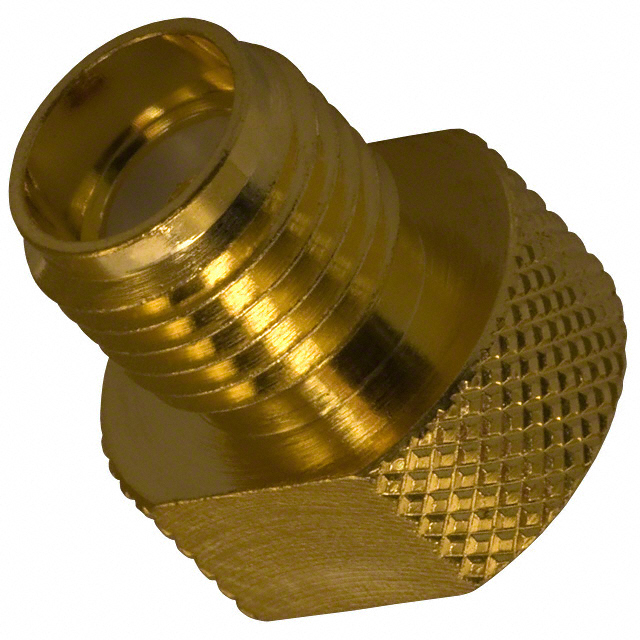

McGill Microwave Systems 132361			Female Socket Jack		50 Ohm			Cap Free Hanging	SMA					Gold	Polytetrafluoroethylene (PTFE)		Brass						Beryllium Copper	Gold
McGill Microwave Systems 132345	Solder	Threaded	Female Socket Jack	18 GHz	50 Ohm	Brass	Gold	Free Hanging (In-Line)	SMA	1	Solder	0.25 in	RG-401	Gold	Polytetrafluoroethylene (PTFE)	Gold	Brass	2 pcs	Connector Contact	-65 °C	165 °C	500 cycles
McGill Microwave Systems 132371	Solder	Threaded	Female Socket Recepture	18 GHz	50 Ohm	Beryllium Copper	Gold	Board Edge End Launch Panel Mount	SMA	1	Solder			Gold	Polytetrafluoroethylene (PTFE)	Gold	Brass	3 pcs	Connector Lockwasher Nut	-65 °C	165 °C	500 cycles			Bulkhead Front Side Nut
McGill Microwave Systems 132366	Solder	Threaded	Male Pin Plug	18 GHz	50 Ohm	Brass	Gold	Board Edge End Launch	SMA	1	Solder			Gold	Polytetrafluoroethylene (PTFE)	Gold	Brass			-65 °C	165 °C	500 cycles

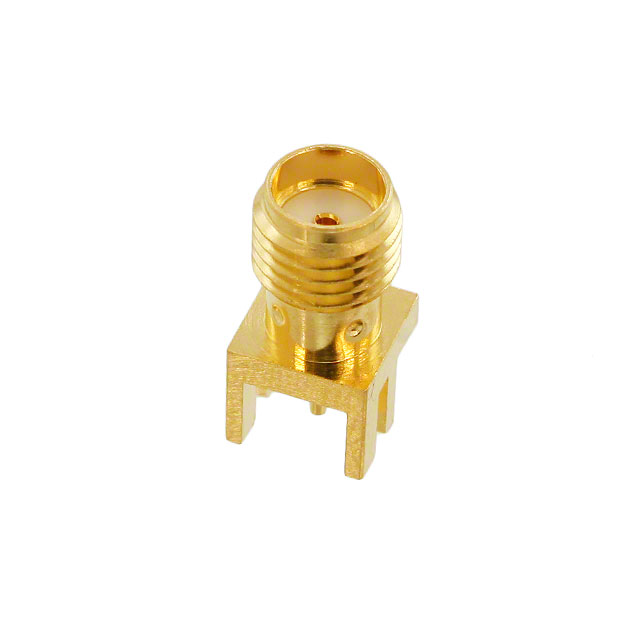

McGill Microwave Systems 132323	Solder	Threaded	Female Socket Recepture	18 GHz	50 Ohm	Beryllium Copper	Gold	Board Edge End Launch	SMA	1	Solder			Gold	Polytetrafluoroethylene (PTFE)	Gold	Brass			-65 °C	165 °C	500 cycles
McGill Microwave Systems 132322	Solder	Threaded	Female Socket Recepture	18 GHz	50 Ohm	Beryllium Copper	Gold	Board Edge End Launch	SMA	1	Solder			Gold	Polytetrafluoroethylene (PTFE)	Gold	Brass			-65 °C	165 °C	500 cycles
McGill Microwave Systems 132339		Threaded		18 GHz	50 Ohm	Beryllium Copper		Free Hanging (In-Line) Right Angle						Gold	Polytetrafluoroethylene (PTFE)	Gold	Brass			-65 °C	165 °C					SMA Plug	Male Pin	Right Angle	Plug to Plug	Male	Same Series	SMA to SMA	Male Pin SMA Plug
McGill Microwave Systems 132332	Crimp	Threaded	Female Socket Jack	12.4 GHz	50 Ohm	Brass	Gold	Free Hanging (In-Line)	SMA	1	Crimp		9914 Belden 9913 LMR-400	Gold	Polytetrafluoroethylene (PTFE)	Gold	Brass	3 pcs	Connector Contact Ferrule	-65 °C	165 °C	500 cycles
McGill Microwave Systems 132384	Solder	Threaded	Female Socket Jack	18 GHz	50 Ohm	Beryllium Copper	Gold	Board Edge End Launch Panel Mount	SMA	1	Solder			Gold	Polytetrafluoroethylene (PTFE)	Gold	Brass	3 pcs	Connector Lockwasher Nut	-65 °C	165 °C	500 cycles			Bulkhead Front Side Nut
