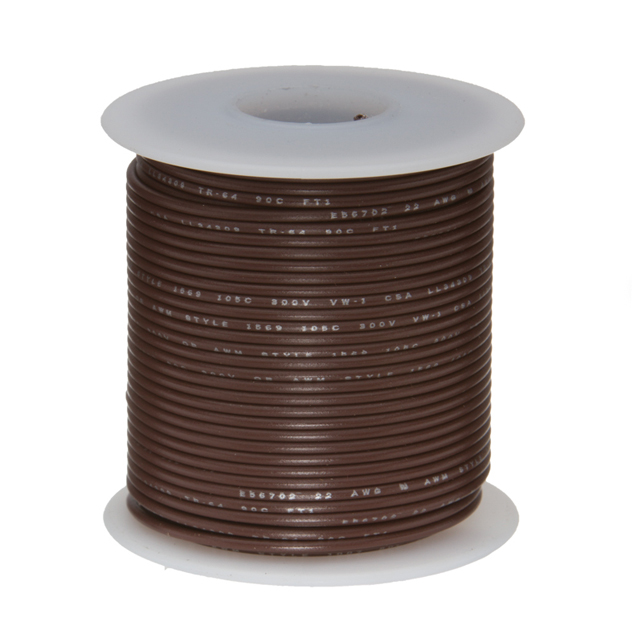

Specification	20UL1015STRBRO25

Cable Type	Hook-Up
Conductor Material	Tinned, Copper
Conductor Strand Count	10
Conductor Strand Gauge	30
Features	Abrasion Resistant, Solvent Resistant, Oil Resistant, Chemical Resistant
Jacket (Insulation) Diameter	0.1 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.03 in
Jacket Color	Brown
Length	25 ft
Operating Temperature	105 °C
Ratings	UL, Style, 1015
Voltage	600 V
Wire Gauge	20 AWG

20UL1015 Series

Part	Conductor Material	Voltage	Jacket (Insulation) Thickness	Cable Type	Length	Jacket (Insulation) Diameter	Ratings	Wire Gauge	Operating Temperature	Conductor Strand Gauge	Conductor Strand Count	Features	Jacket (Insulation) Material	Jacket Color	Kit Type	Number of Spools	Spool Length
Remington Industries 20UL1015STRYEL500	Copper Tinned	600 V	0.03 in	Hook-Up	500 ft	0.1 in	1015 Style UL	20 AWG	105 °C	30	10	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Poly-Vinyl Chloride (PVC)	Yellow
Remington Industries 20UL1015STRVIO	Copper Tinned	600 V	0.03 in	Hook-Up	100 ft	0.1 in	1015 Style UL	20 AWG	105 °C	30	10	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Poly-Vinyl Chloride (PVC)	Violet
Remington Industries 20UL1015STRBLA	Copper Tinned	600 V	0.03 in	Hook-Up	100 ft	0.1 in	1015 Style UL	20 AWG	105 °C	30	10	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Poly-Vinyl Chloride (PVC)	Black
Remington Industries 20UL1015STRBLU	Copper Tinned	600 V	0.03 in	Hook-Up	100 ft	0.1 in	1015 Style UL	20 AWG	105 °C	30	10	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Poly-Vinyl Chloride (PVC)	Blue
Remington Industries 20UL1015STRRED	Copper Tinned	600 V	0.03 in	Hook-Up	100 ft	0.1 in	1015 Style UL	20 AWG	105 °C	30	10	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Poly-Vinyl Chloride (PVC)	Red
Remington Industries 20UL1015STRWHI	Copper Tinned	600 V	0.03 in	Hook-Up	100 ft	0.1 in	1015 Style UL	20 AWG	105 °C	30	10	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Poly-Vinyl Chloride (PVC)	White
Remington Industries 20UL1015STRORG1000	Copper Tinned	600 V	0.03 in	Hook-Up	1000 ft	0.1 in	1015 Style UL	20 AWG	105 °C	30	10	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Poly-Vinyl Chloride (PVC)	Orange
Remington Industries 20UL1015STRKIT10COLOR															20 AWG Hook Up Wire	10 pcs	25 ft
Remington Industries 20UL1015STRBRO25	Copper Tinned	600 V	0.03 in	Hook-Up	25 ft	0.1 in	1015 Style UL	20 AWG	105 °C	30	10	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Poly-Vinyl Chloride (PVC)	Brown
Remington Industries 20UL1015STRBRO1000	Copper Tinned	600 V	0.03 in	Hook-Up	1000 ft	0.1 in	1015 Style UL	20 AWG	105 °C	30	10	Abrasion Resistant Chemical Resistant Oil Resistant Solvent Resistant	Poly-Vinyl Chloride (PVC)	Brown

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

20UL1015STRBRO25 | Datasheet
