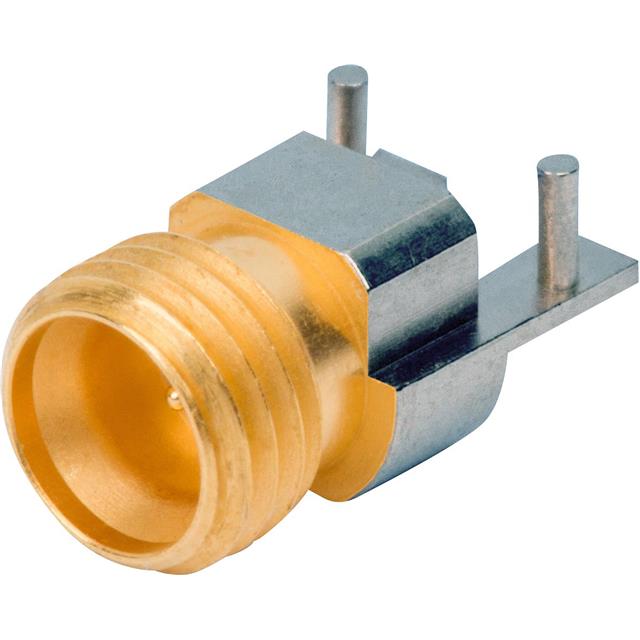

Specification	3211-40170

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMPM
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Features	Pre-Tinned (J-STD-001), Smooth Bore
Frequency - Max	40 Gbps
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	End Launch, Board Edge
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder

3211-40 Series

Part	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Center Contact Plating	Mating Cycles	Body Finish	Body Material	Contact Termination	Impedance	Housing Color	Connector Type	Connector Style	Frequency - Max	Fastening Type	Mounting Type	Number of Ports	Features	Shield Termination	Center Contact Material	Cable Group Diameter (Default)	Cable Group	Cable Group Size
McGill Microwave Systems 3211-40170	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	Gold	500 cycles	Gold	Stainless Steel	Solder	50 Ohm	Gold	Male Pin Plug	SMPM	40 Gbps	Threaded	Board Edge End Launch	1	Pre-Tinned (J-STD-001) Smooth Bore	Solder	Beryllium Copper
McGill Microwave Systems 3211-40107	Polyamide-Imide (PAI)	-55 °C	125 °C	Gold	100 cycles	Gold	Beryllium Copper	Solder	50 Ohm	Gold	Male Pin Plug	SMPM	25 GHz	Snap-On	Surface Mount	1	Full Detent Pre-Tinned (J-STD-001)	Solder	Beryllium Copper
McGill Microwave Systems 3211-40139	Polyamide-Imide (PAI)	-55 °C	125 °C	Gold	100 cycles	Gold	Beryllium Copper	Solder	50 Ohm	Gold	Male Pin Plug	SMPM	25 GHz	Snap-On	Surface Mount Through Hole	1	Full Detent	Solder	Beryllium Copper
McGill Microwave Systems 3211-40004	Polytetrafluoroethylene (PTFE)	-55 °C	125 °C	Gold	100 cycles		Stainless Steel	Solder	50 Ohm	Silver	Male Pin Plug	SMPM	40 Gbps	Snap-On	Panel Mount Snap-In	1	Full Detent	Solder	Beryllium Copper	0.085 in	RG-405

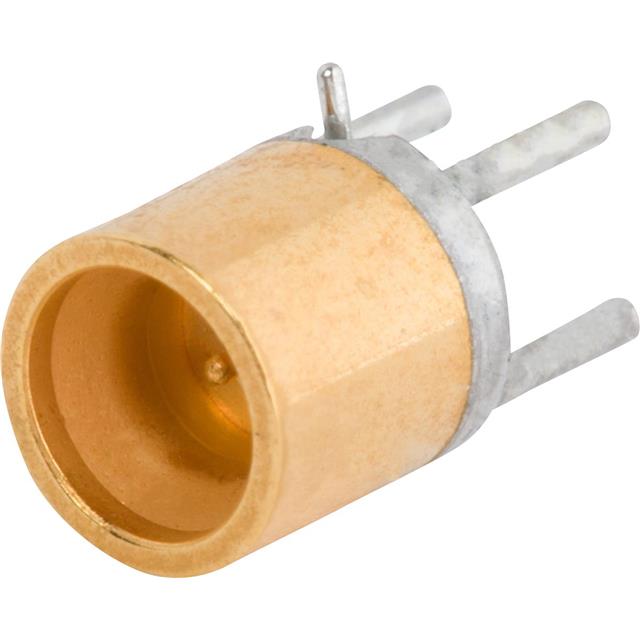

McGill Microwave Systems 3211-40093	Polyamide-Imide (PAI)	-55 °C	125 °C	Gold	500 cycles	Gold	Beryllium Copper	Solder	50 Ohm	Gold	Male Pin Plug	SMPM	25 GHz	Snap-On	Surface Mount Through Hole	1	Pre-Tinned (J-STD-001) Smooth Bore	Solder	Beryllium Copper
McGill Microwave Systems 3211-40003	Polytetrafluoroethylene (PTFE)	-55 °C	125 °C	Gold			Stainless Steel		50 Ohm	Silver	Male Pin Plug	SMPM	40 Gbps	Snap-On	Free Hanging (In-Line)	1	Smooth Bore		Beryllium Copper		Flexible	0.047 "
McGill Microwave Systems 3211-40140	Polytetrafluoroethylene (PTFE)	-55 °C	125 °C	Gold	500 cycles	Gold	Beryllium Copper	Solder	50 Ohm	Gold	Male Pin Plug	SMPM	40 Gbps	Snap-On	Through Hole	1	Smooth Bore	Solder	Beryllium Copper
McGill Microwave Systems 3211-40094	Polyamide-Imide (PAI)	-55 °C	125 °C	Gold	100 cycles	Gold	Beryllium Copper	Solder	50 Ohm	Gold	Male Pin Plug	SMPM	25 GHz	Snap-On	Surface Mount Through Hole	1	Full Detent Pre-Tinned (J-STD-001)	Solder	Beryllium Copper
McGill Microwave Systems 3211-40106	Polyamide-Imide (PAI)	-55 °C	125 °C	Gold	500 cycles	Gold	Beryllium Copper	Solder	50 Ohm	Gold	Male Pin Plug	SMPM	25 GHz	Snap-On	Surface Mount	1	Pre-Tinned (J-STD-001) Smooth Bore	Solder	Beryllium Copper

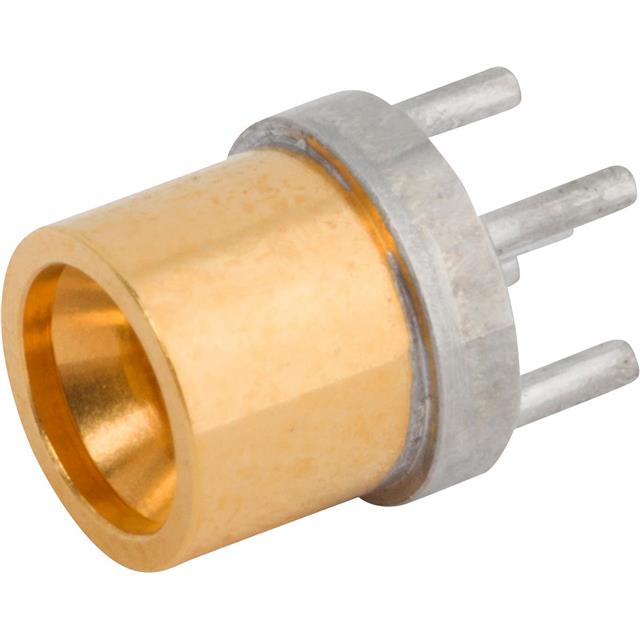

McGill Microwave Systems 3211-40142	Polytetrafluoroethylene (PTFE)	-55 °C	125 °C	Gold	500 cycles	Gold	Beryllium Copper	Solder	50 Ohm	Gold	Male Pin Plug	SMPM	40 Gbps	Snap-On	Through Hole	1	Pre-Tinned (J-STD-001) Smooth Bore	Solder	Beryllium Copper
