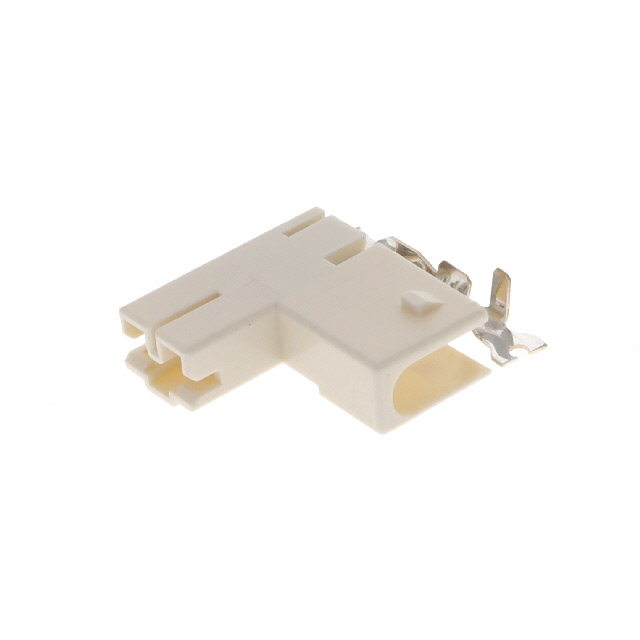

ActiveQUICK DISCONNECT TERMINAL, PRE-INSULATED, FLAG, POD-LOK 187 SERIES, FEMALE QUICK DISCONNECT

2299287-1
ActiveQUICK DISCONNECT TERMINAL, PRE-INSULATED, FLAG, POD-LOK 187 SERIES, FEMALE QUICK DISCONNECT
Description
General part information
2299287 Series
The pre-insulated POD-LOK receptacle terminals combine Positive Lock receptacles with Glow Wire Test (GWT), UL 94 V-0 rated housings. The result is an ergonomic, low insertion force (LIF) receptacle and integral robust housing supplied in strip form that can be crimped and applied in one quick step with an automatic applicator. POD-LOK receptacles can offer significant applied cost savings, as no secondary operation is required to apply the housings. An automated applicator crimps the receptacle to the wire and slides the housing into its installed position. The LIF receptacles offer the security of a locking feature that resists accidental disconnection, but permits relatively easy intentional extraction. The integrated housings provide insulation to help prevent shock and short hazards, and they act as a removal tool.
Technical Specifications
Parameters and characteristics for this part
| Specification | 2299287-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Female |
| Insulation | Mating End Insulated |
| Insulation Diameter (Max) | 0.11 in |
| Insulation Diameter (Min) | 0.06 in |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Tab Thickness | 0.02 in |
| Tab Width | 0.187 in |
| Terminal Angle | 90 ° |
| Terminal Type | Flag, Angled |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
