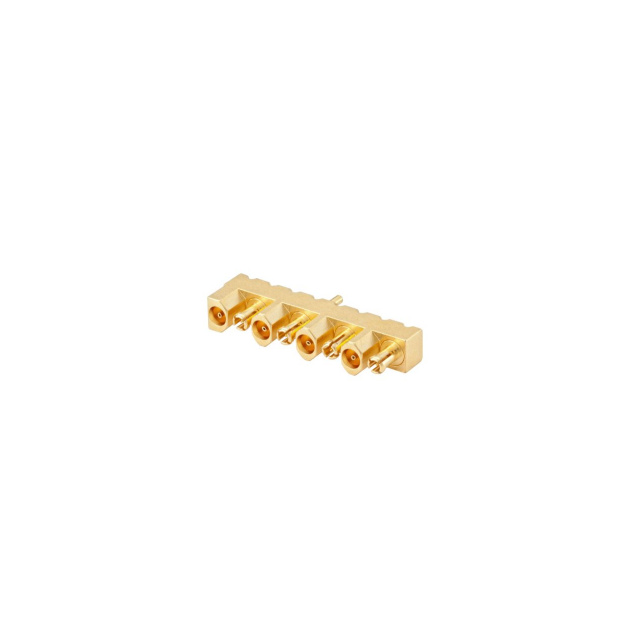

Specification	23C14D-40ML5

Body Finish	Gold
Body Material	Beryllium Copper, Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Plug Count	4
Connector Style	Miniature Coaxial
Connector Type	Plug, Male Pin, Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max	40 Gbps
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Surface Mount, Through Hole
Number of Ports	8
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Shield Termination	Solder
Voltage Rating	500 V

23C14D Series

Part	Voltage Rating	Operating Temperature (Max)	Operating Temperature (Min)	Center Contact Plating	Dielectric Material	Body Finish	Body Material	Mating Cycles	Shield Termination	Frequency - Max	Contact Termination	Number of Ports	Impedance	Housing Color	Connector Style	Center Contact Material	Connector Type	Connector Plug Count	Fastening Type	Mounting Type
Rosenberger 23C14D-40ML5	500 V	125 °C	-40 °C	Gold	Polytetrafluoroethylene (PTFE)	Gold	Beryllium Copper Brass	500 cycles	Solder	40 Gbps	Solder	8	50 Ohm	Gold	Miniature Coaxial	Beryllium Copper	Jack Female Socket Plug Male Pin	4	Snap-On	Surface Mount Through Hole
