Q-3G02A000M002M
ActiveMcGill Microwave Systems
CBL ASSY SMA-NTYPE PLUG-PLG 6.6'
Q-3G02A000M002M
ActiveMcGill Microwave Systems
CBL ASSY SMA-NTYPE PLUG-PLG 6.6'
Description
General part information
Q-3G02A0 Series

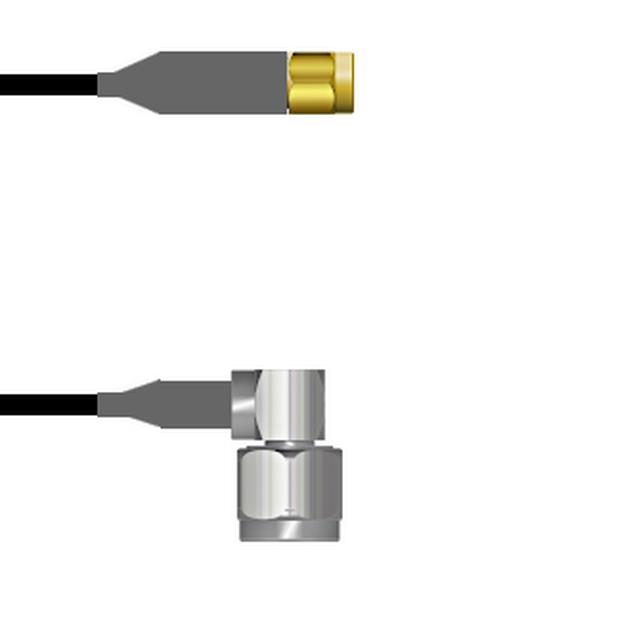

Cable Assembly Coaxial SMA to N-Type LMR 240 78.7" (2.0m) 6.6'
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-3G02A000M002M |
|---|---|
| 1st Connector | SMA Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | Right Angle, N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 240 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max | 6000 MHz |
| Length (ft) | 6.6 ft |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
