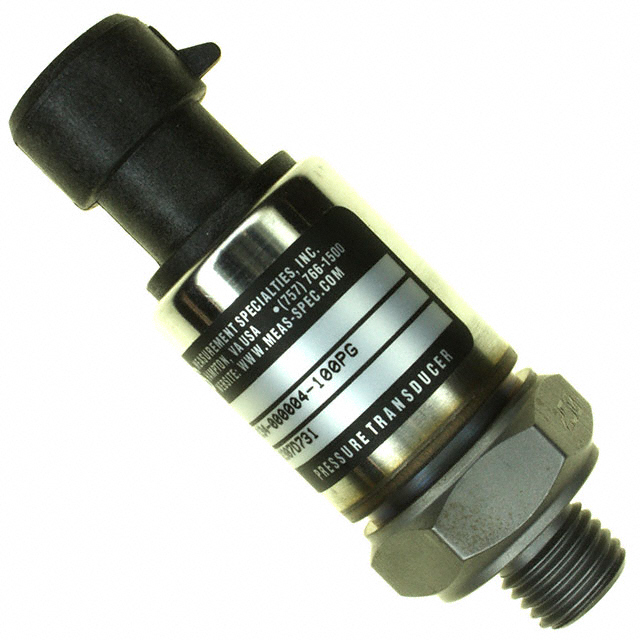

M5134-000004-100PG

Obsolete

TE Connectivity Measurement Specialties

TRANSDUCER 0.5-4.5VDC 100PSI

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

M5134-000004-100PG

Obsolete

TE Connectivity Measurement Specialties

TRANSDUCER 0.5-4.5VDC 100PSI

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M5134-000004-100PG

Accuracy	1 %
Applications	Industrial Automation
Features	Temperature Compensated
Maximum Pressure [Max]	200 PSI
Maximum Pressure [Max]	1378.95 kPa
Operating Pressure	689.48 kPa
Operating Pressure	100 PSI
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output [Max]	4.5 V
Output [Min]	0.5 V
Output Type	Analog Voltage
Package / Case	Cylinder
Port Size	Male
Port Size	0.4375 "
Port Size	11.11 mm
Port Style	Threaded
Pressure Type	Vented Gauge

M5134 Series

Part	Port Style	Accuracy	Package / Case	Pressure Type	Output Type	Applications	Voltage - Supply [Min]	Voltage - Supply [Max]	Port Size	Port Size	Port Size	Output [Min]	Output [Max]	Maximum Pressure [Max]	Maximum Pressure [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Operating Pressure	Operating Pressure	Maximum Pressure	Maximum Pressure	Operating Pressure
TE Connectivity Measurement Specialties M5134-000004-500PG	Threaded	1 %	Cylinder	Vented Gauge	Analog Voltage	Industrial Automation	4.75 V	5.25 V	Male	0.4375 "	11.11 mm	0.5 V	4.5 V	1000 PSI	6894.76 kPa	125 °C	-40 °C	Temperature Compensated	3447.38 kPa	500 PSI
TE Connectivity Measurement Specialties M5134-000004-050PG	Threaded	1 %	Cylinder	Vented Gauge	Analog Voltage	Industrial Automation			Male	0.4375 "	11.11 mm	0.5 V	4.5 V	100 PSI	689.48 kPa	125 °C	-40 °C	Temperature Compensated	344.74 kPa	50 PSI
TE Connectivity Measurement Specialties M5134-000004-025PG	Threaded	1 %	Cylinder	Vented Gauge	Analog Voltage	Industrial Automation	4.75 V	5.25 V	Male	0.4375 "	11.11 mm	0.5 V	4.5 V			125 °C	-40 °C	Temperature Compensated	25 PSI		344.74 kPa	50 PSI	172.37 kPa
TE Connectivity Measurement Specialties M5134-000004-075PG	Threaded	1 %	Cylinder	Vented Gauge	Analog Voltage	Industrial Automation	4.75 V	5.25 V	Male	0.4375 "	11.11 mm	0.5 V	4.5 V	150 PSI	1034.21 kPa	125 °C	-40 °C	Temperature Compensated	517.11 kPa	75 PSI
TE Connectivity Measurement Specialties M5134-000004-100PG	Threaded	1 %	Cylinder	Vented Gauge	Analog Voltage	Industrial Automation			Male	0.4375 "	11.11 mm	0.5 V	4.5 V	200 PSI	1378.95 kPa	125 °C	-40 °C	Temperature Compensated	689.48 kPa	100 PSI
TE Connectivity Measurement Specialties M5134-000004-2K5PG	Threaded	1 %	Cylinder	Vented Gauge	Analog Voltage	Industrial Automation	4.75 V	5.25 V	Male	0.4375 "	11.11 mm	0.5 V	4.5 V	5000 PSI	34473.79 kPa	125 °C	-40 °C	Temperature Compensated	17236.89 kPa	2500 PSI
TE Connectivity Measurement Specialties M5134-000004-250PG	Threaded	1 %	Cylinder	Vented Gauge	Analog Voltage	Industrial Automation	4.75 V	5.25 V	Male	0.4375 "	11.11 mm	0.5 V	4.5 V	500 PSI	3447.38 kPa	125 °C	-40 °C	Temperature Compensated	1723.69 kPa	250 PSI

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

M5134 Series

TRANSDUCER 0.5-4.5VDC 100PSI
