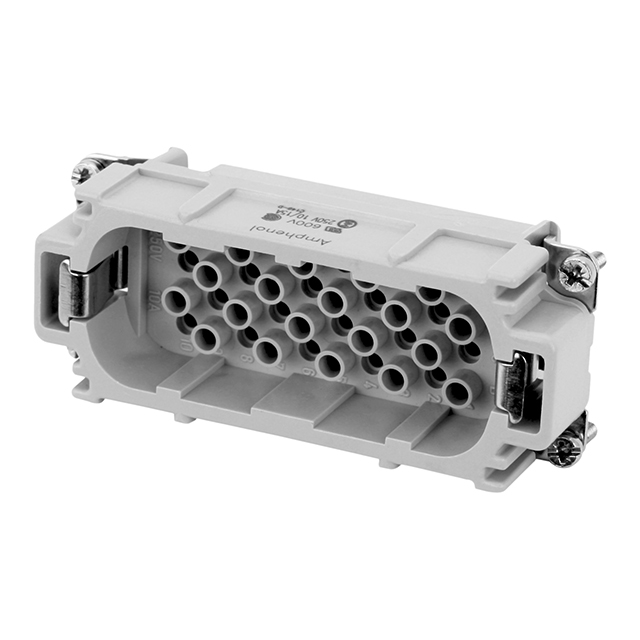

C14610A0400602

Active

Amphenol Tuchel Industrial

INSERT MALE 40POS+1GND CRIMP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

INSERT MALE 40POS+1GND CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	C14610A0400602

Color	Gray
Connector Type	Insert without Contacts
Contact Type	C146 D, C 16-3, M, heavy\|mate®
Current Rating (Amps)	15 A
Gender	Male
Material Flammability Rating	UL94 V-0
Number of Positions	40+Ground
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	E16
Termination Style	Crimp
Voltage Rating	600 V

Part	Color	Connector Type	Size	Voltage Rating	Material Flammability Rating	Termination Style	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Type	Number of Positions
Amphenol Tuchel Industrial C14610A0400602	Gray	Insert without Contacts	E16	600 V	UL94 V-0	Crimp	Male	125 °C	-40 °C	15 A	C 16-3 C146 D heavy\|mate® M	40+Ground

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Male Insert without Contacts Gray 40+Ground Position Crimp
