KUP-5A55-120
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 10A 120V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KUP-5A55-120
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPDT 10A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KUP-5A55-120 |
|---|---|
| Approval Agency | CSA, UR |
| Coil Current | 17.5 mA |
| Coil Insulation | Class B |
| Coil Resistance | 2.25 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 120 VAC |
| Contact Form | SPDT (1 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 10 A |
| Load - Max Switching [Max] | 2400 VA |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 102 VAC |
| Operate Time | 15 ms |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -45 °C |
| Relay Type | General Purpose |
| Release Time | 10 ms |
| Switching Voltage | 240 VAC |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 29.09 | |
| 10 | $ 27.63 | |||
| 25 | $ 26.18 | |||
| 50 | $ 24.72 | |||
| 100 | $ 23.27 | |||
| 250 | $ 21.82 | |||
Description
General part information
KUP-5A Series

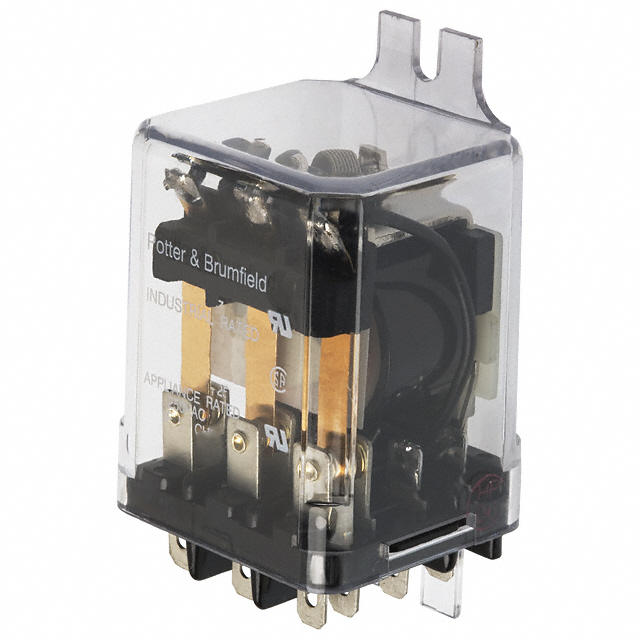

General Purpose Relay SPDT (1 Form C) 120VAC Coil Chassis Mount
