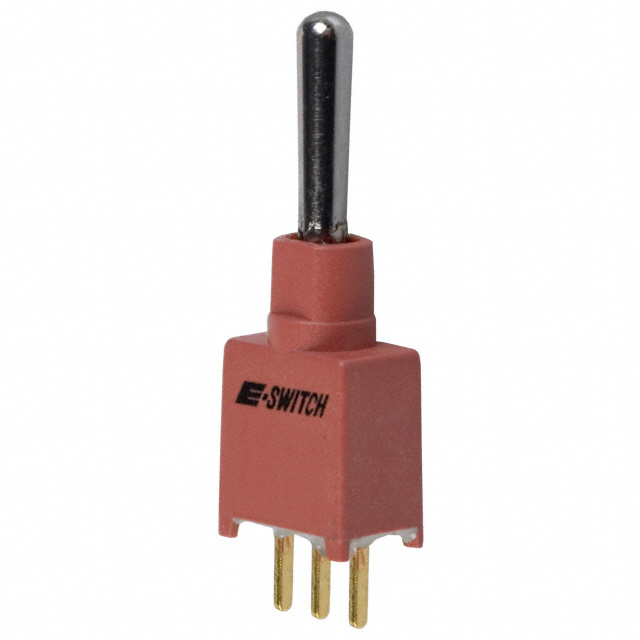

200AWMSP1T1A1M2RE

Active

E-Switch

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

Search across all available documentation for this part.

200AWMSP1T1A1M2RE

Active

E-Switch

SWITCH TOGGLE SPDT 0.4VA 20V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.16
		10	$ 3.72
		25	$ 3.52
		50	$ 3.40
		189	$ 3.22
		378	$ 3.08
		567	$ 2.83
		1134	$ 2.70

Description

General part information

200AWMSP1 Series

Toggle Switch SPDT Through Hole

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	200AWMSP1T1A1M2RE	200AWMSP1 Series

Actuator Length [x]	10.16 mm	5.08 - 10.16 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	Unthreaded	Unthreaded
Circuit	SPDT	SPDT
Current Rating (Amps)	0.4 VA	0.4 - 3 A
Electrical Life	50000 Cycles	50000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle, Vertical, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Switch Function	On-On	On-On, On-Mom
Termination Style	PC Pin	PC Pin
Voltage Rating - AC	20 V	20 - 120 V
Voltage Rating - DC	20 V	20 - 28 V

200AWMSP1 Series

SWITCH TOGGLE SPDT 3A 120V

Part	Actuator Material	Bushing Thread	Illumination	Voltage Rating - AC	Termination Style	Features	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Ingress Protection	Circuit	Current Rating (Amps)	Actuator Type	Mounting Type	Electrical Life	Voltage Rating - DC	Actuator Length [x]
E-Switch 200AWMSP1T2A1VS2QE	Brass, Chrome Plated	Unthreaded	Non-Illuminated	120 V	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	On-On	IP67 - Dust Tight, Waterproof	SPDT	3 A	Standard Round	Through Hole	50000 Cycles	28 V	6.1 mm
E-Switch 200AWMSP1T2A1VS2RE	Brass, Chrome Plated	Unthreaded	Non-Illuminated	20 V	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	On-On	IP67 - Dust Tight, Waterproof	SPDT	0.4 VA	Standard Round	Through Hole	50000 Cycles	20 V	6.1 mm
E-Switch 200AWMSP1T1A1M6RE	Brass, Chrome Plated	Unthreaded	Non-Illuminated	20 V	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	On-On	IP67 - Dust Tight, Waterproof	SPDT	0.4 VA	Standard Round	Through Hole, Right Angle	50000 Cycles	20 V	10.16 mm
E-Switch 200AWMSP1T1A1M2RE	Brass, Chrome Plated	Unthreaded	Non-Illuminated	20 V	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	On-On	IP67 - Dust Tight, Waterproof	SPDT	0.4 VA	Standard Round	Through Hole	50000 Cycles	20 V	10.16 mm
E-Switch 200AWMSP1T1A1M7QE	Brass, Chrome Plated	Unthreaded	Non-Illuminated	120 V	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	On-On	IP67 - Dust Tight, Waterproof	SPDT	3 A	Standard Round	Right Angle, Through Hole, Vertical	50000 Cycles	28 V	10.16 mm
E-Switch 200AWMSP1T1A1VS2QE	Brass, Chrome Plated	Unthreaded	Non-Illuminated	120 V	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	On-On	IP67 - Dust Tight, Waterproof	SPDT	3 A	Standard Round	Through Hole	50000 Cycles	28 V	10.16 mm
E-Switch 200AWMSP1T2A1M2RE	Brass, Chrome Plated	Unthreaded	Non-Illuminated	20 V	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	On-On	IP67 - Dust Tight, Waterproof	SPDT	0.4 VA	Standard Round	Through Hole	50000 Cycles	20 V	6.1 mm
E-Switch 200AWMSP1T1A1M2QE	Brass, Chrome Plated	Unthreaded	Non-Illuminated	120 V	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	On-On	IP67 - Dust Tight, Waterproof	SPDT	3 A	Standard Round	Through Hole	50000 Cycles	28 V	10.16 mm
E-Switch 200AWMSP1T3A1M6QE	Brass, Chrome Plated	Unthreaded	Non-Illuminated	120 V	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	On-On	IP67 - Dust Tight, Waterproof	SPDT	3 A	Standard Round	Through Hole, Right Angle	50000 Cycles	28 V	5.08 mm
E-Switch 200AWMSP1T2A1M7QE	Brass, Chrome Plated	Unthreaded	Non-Illuminated	120 V	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	On-On	IP67 - Dust Tight, Waterproof	SPDT	3 A	Standard Round	Right Angle, Through Hole, Vertical	50000 Cycles	28 V	6.1 mm
