SSM2305-EVALZ

Active

Analog Devices

DEVELOPMENT BOARDS &AMP; KITS ROHS

Search across all available documentation for this part.

Active

Analog Devices

DEVELOPMENT BOARDS &AMP; KITS ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	SSM2305-EVALZ

Board Type	Fully Populated
Max Output Power x Channels @ Load	2.8 W
Max Output Power x Channels @ Load [custom]	4 Ohm
Max Output Power x Channels @ Load [custom]	1
Output Type	1-Channel (Mono)
Supplied Contents	Board(s)
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.2 V

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplied Contents	Output Type	Board Type	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load	Max Output Power x Channels @ Load [custom]	Supplier Device Package	Mounting Type	Package / Case	Package / Case [custom]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Features	Type
Analog Devices SSM2305-EVALZ	5.5 V	2.2 V	Board(s)	1-Channel (Mono)	Fully Populated	4 Ohm	2.8 W	1
Analog Devices SSM2305RMZ-REEL	5.5 V	2.2 V		1-Channel (Mono)		4 Ohm	2.8 W	1	8-MSOP	Surface Mount	8-MSOP 8-TSSOP	0.118 in	3 mm	85 °C	-40 °C	Depop Differential Inputs Short-Circuit and Thermal Protection Shutdown	Class D

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

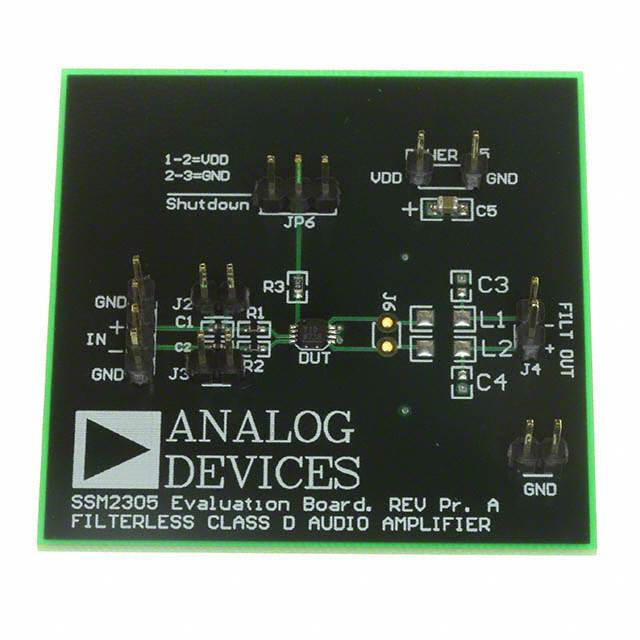

SSM2305 - 1-Channel (Mono) Output Class D Audio Amplifier Evaluation Board
