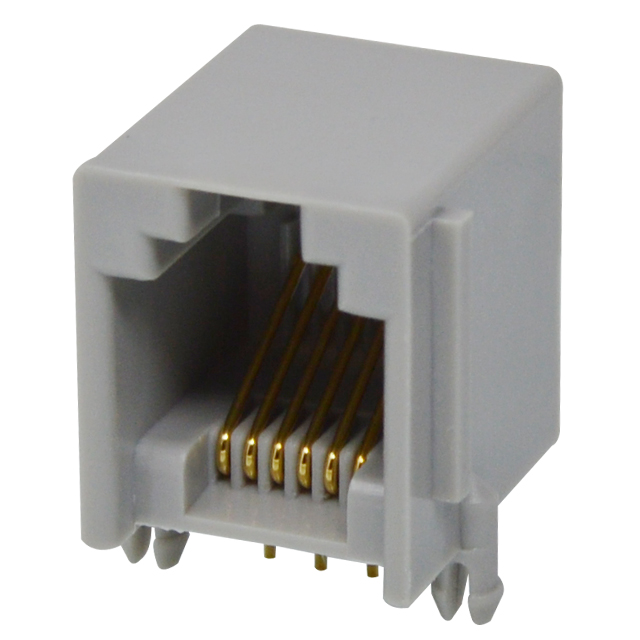

GDLX-S-88K-50

Active

Kycon, Inc.

MODJK L/P RT< 8P8C P/S SHLD KEY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsG3LX-188S1-FF-GY1 Datasheet +1

GDLX-S-88K-50

Active

Kycon, Inc.

MODJK L/P RT< 8P8C P/S SHLD KEY

Deep-Dive with AI

DocumentsG3LX-188S1-FF-GY1 Datasheet +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1140	$ 1.06

Description

General part information

GDLX Series

Modular Connectors / Ethernet Connectors 6P6C SMT R/A BLACK PANEL STOPS

Documents

Technical documentation and resources

G3LX-188S1-FF-GY1

Datasheet

GDLX Datasheet

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GDLX-S-88K-50	GDLX Series

Connector Type	Jack	Jack
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Finish Thickness	-	Flash
Contact Material	Phosphor Bronze	Phosphor Bronze
Features	Board Lock, Keyed	Board Lock, Keyed, Panel Stops
Housing Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT), Thermoplastic
LED Color	Does Not Contain LED	Does Not Contain LED
Mounting Type	Through Hole	Through Hole, Surface Mount, Right Angle, Surface Mount
Number of Ports	1	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)	8p8c (RJ45, Ethernet), 6p4c
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	90 °	90 °
Shielding	Shielded	Shielded, Unshielded
Tab Direction	Down	Down
Termination	Solder	Solder

GDLX Series

Modular Connectors / Ethernet Connectors 6P6C SMT R/A BLACK PANEL STOPS

Part	Number of Ports	Contact Material	Housing Material	Number of Positions/Contacts	Orientation	Connector Type	Contact Finish	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	LED Color	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Tab Direction	Features	Shielding	Termination	Contact Finish Thickness
Kycon, Inc. GDLX-S-88K-50	1	Phosphor Bronze	Polybutylene Terephthalate (PBT)	8p8c (RJ45, Ethernet)	90 °	Jack	Gold	1	85 °C	-40 °C	Does Not Contain LED	Through Hole	50 µin	1.27 µm	Down	Board Lock, Keyed	Shielded	Solder
Kycon, Inc. GDLX-SMT-S-88	1	Phosphor Bronze	Thermoplastic	8p8c (RJ45, Ethernet)	90 °	Jack	Gold	1	85 °C	-40 °C	Does Not Contain LED	Surface Mount, Right Angle, Through Hole			Down	Board Lock, Panel Stops	Shielded	Solder	Flash
Kycon, Inc. GDLX-N-88K-50	1	Phosphor Bronze	Polybutylene Terephthalate (PBT)	8p8c (RJ45, Ethernet)	90 °	Jack	Gold	1	85 °C	-40 °C	Does Not Contain LED	Through Hole	50 µin	1.27 µm	Down	Board Lock, Keyed	Unshielded	Solder
Kycon, Inc. GDLX-N-64-50	1	Phosphor Bronze	Polybutylene Terephthalate (PBT)	6p4c	90 °	Jack	Gold	1	85 °C	-40 °C	Does Not Contain LED	Through Hole	50 µin	1.27 µm	Down		Unshielded	Solder
Kycon, Inc. GDLX-N-64	1	Phosphor Bronze	Polybutylene Terephthalate (PBT)	6p4c	90 °	Jack	Gold	1	85 °C	-40 °C	Does Not Contain LED	Through Hole			Down		Unshielded	Solder	Flash
Kycon, Inc. GDLX-SMT-S-88K	1	Phosphor Bronze	Thermoplastic	8p8c (RJ45, Ethernet)	90 °	Jack	Gold	1	85 °C	-40 °C	Does Not Contain LED	Surface Mount, Right Angle, Through Hole			Down	Board Lock, Keyed, Panel Stops	Shielded	Solder	Flash
Kycon, Inc. GDLX-SMT-A-64	1	Phosphor Bronze	Thermoplastic	6p4c	90 °	Jack	Gold	1	85 °C	-40 °C	Does Not Contain LED	Surface Mount			Down		Unshielded	Solder	Flash
