Description

General part information

TPS22924C Series

The TPS22924x is a small, low RONload switch with controlled turn on. The device contains a N-channel MOSFET that can operate over an input voltage range of 0.75 V to 3.6 V. An integrated charge pump biases the NMOS switch to achieve a minimum switch ON resistance. The switch is controlled by an on/off input (ON), which is capable of interfacing directly with low-voltage control signals.

A 1250 Ω on-chip load resistor is added for output quick discharge when the switch is turned off. The rise time of the device is internally controlled to avoid inrush current. The TPS22924B features a rise time of 100 µs at VIN= 3.6 V while the TPS22924C has a rise time of 800 µs at VIN= 3.6 V.

The TPS22924x is available in an ultra-small space-saving 6-pin CSP package and is characterized for operation over the free-air temperature range of –40ºC to 85ºC.

Technical Specifications

Parameters and characteristics for this part

Specification	TPS22924CYZPR

Current - Output (Max)	2 A
Features	Load Discharge, Slew Rate Controlled
Input Ratio	1
Input Type	Non-Inverting
Interface	On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Output Configuration	High Side
Output Ratio	1
Output Type	N-Channel

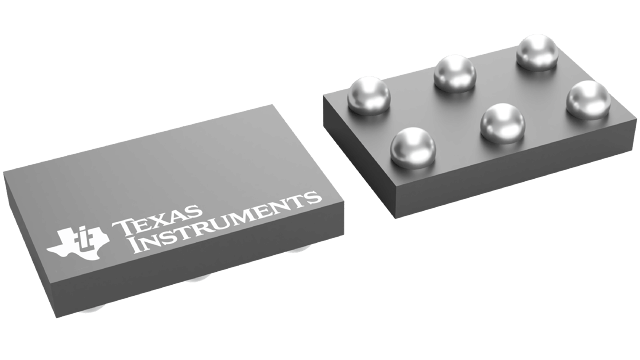

Package / Case	DSBGA, 6-XFBGA
Package Length	1.39 mm
Package Name	6-DSBGA
Package Width	0.89 mm
Rds On (Typ)	18.3 mOhm
Switch Type	General Purpose
Voltage - Load (Max)	3.6 V
Voltage - Load (Min)	0.75 V
Voltage - Supply (Vcc/Vdd)	Not Required
Voltage - Supply (Vdd/Vcc)	Not Required

TPS22924C Series

3.6-V, 2-A, 18.3-mΩ load switch with output discharge and rise time of 800-µs at 3.6-V

Part	Supplied Contents	Utilized IC / Part	Contents	Function	Type	Embedded	Switch Type	Output Ratio	Input Ratio	Rds On (Typ)	Package Name	Package Width	Package Length	Operating Temperature (Max)	Operating Temperature (Min)	Current - Output (Max)	Package / Case	Input Type	Output Configuration	Features	Interface	Mounting Type	Voltage - Supply (Vdd/Vcc)	Voltage - Supply (Vcc/Vdd)	Number of Outputs	Voltage - Load (Max)	Voltage - Load (Min)	Output Type
Texas Instruments TPS22924DEVM-532	Board(s)	TPS22924D	Board	Power Distribution Switch (Load Switch)	Power Management	No
Texas Instruments TPS22924DYZPT							General Purpose	1	1	18.3 mOhm	6-DSBGA	0.89 mm	1.39 mm	85 °C	-40 °C	2 A	6-XFBGA DSBGA	Non-Inverting	High Side	Load Discharge Slew Rate Controlled	On/Off	Surface Mount	Not Required	Not Required	1	3.6 V	0.75 V	N-Channel

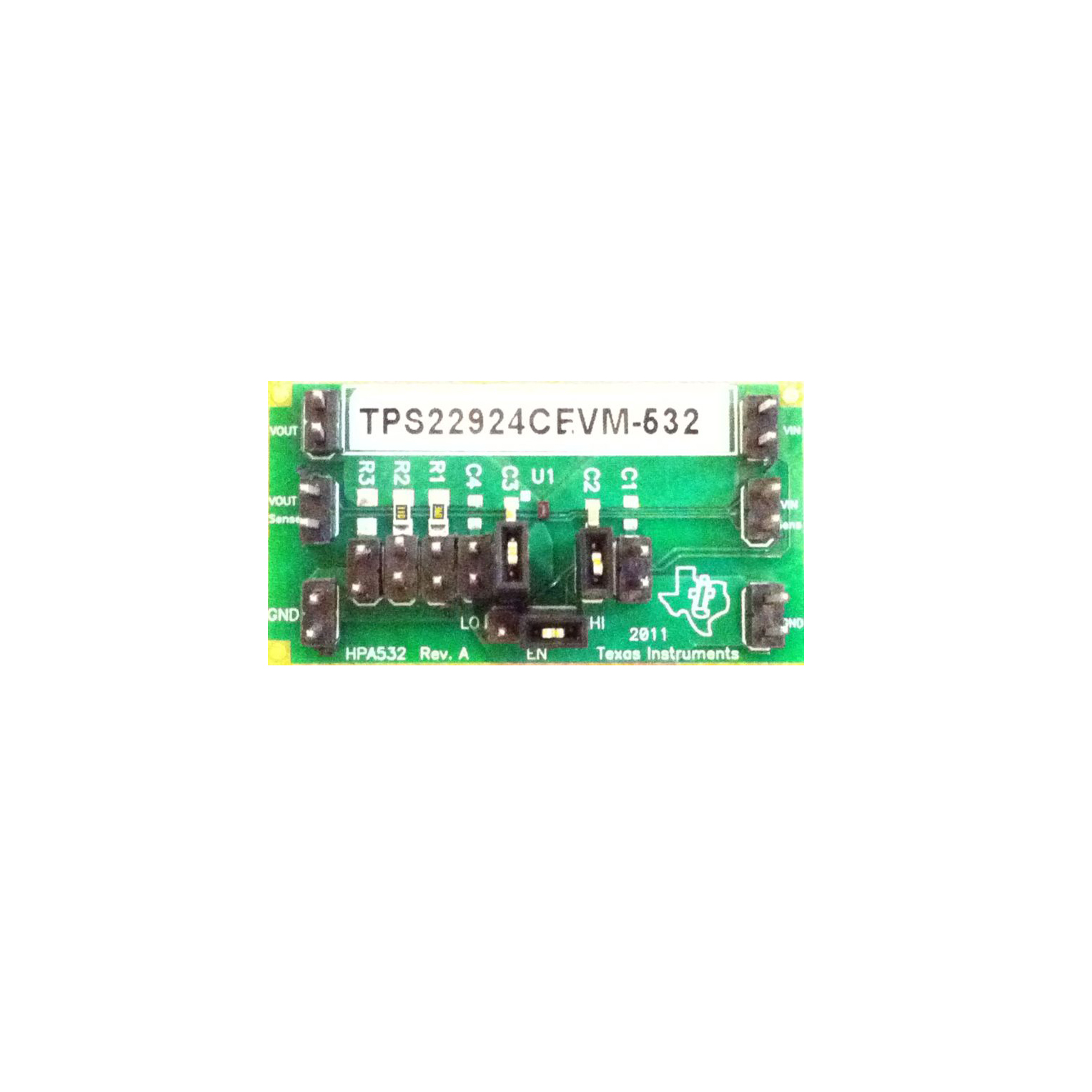

Texas Instruments TPS22924CEVM-532	Board(s)	TPS22924C	Board	Power Distribution Switch (Load Switch)	Power Management	No
Texas Instruments TPS22924BYZT							General Purpose	1	1	18.3 mOhm	6-DSBGA			85 °C	-40 °C	2 A	6-XFBGA DSBGA	Non-Inverting	High Side	Load Discharge Slew Rate Controlled	On/Off	Surface Mount	Not Required	Not Required	1	3.6 V	0.75 V	N-Channel
Texas Instruments TPS22924BYZZT							General Purpose	1	1	18.3 mOhm	6-DSBGA			85 °C	-40 °C	2 A	6-XFBGA DSBGA	Non-Inverting	High Side	Load Discharge Slew Rate Controlled	On/Off	Surface Mount	Not Required	Not Required	1	3.6 V	0.75 V	N-Channel
Texas Instruments TPS22924CYZPRB							General Purpose	1	1	18.3 mOhm	6-DSBGA	0.89 mm	1.39 mm	85 °C	-40 °C	2 A	6-XFBGA DSBGA	Non-Inverting	High Side	Load Discharge Slew Rate Controlled	On/Off	Surface Mount	Not Required	Not Required	1	3.6 V	0.75 V	N-Channel
Texas Instruments TPS22924DYZPR							General Purpose	1	1	18.3 mOhm	6-DSBGA	0.89 mm	1.39 mm	85 °C	-40 °C	2 A	6-XFBGA DSBGA	Non-Inverting	High Side	Load Discharge Slew Rate Controlled	On/Off	Surface Mount	Not Required	Not Required	1	3.6 V	0.75 V	N-Channel
Texas Instruments TPS22924BYZPRB							General Purpose	1	1	18.3 mOhm	6-DSBGA	0.89 mm	1.39 mm	85 °C	-40 °C	2 A	6-XFBGA DSBGA	Non-Inverting	High Side	Load Discharge Slew Rate Controlled	On/Off	Surface Mount	Not Required	Not Required	1	3.6 V	0.75 V	N-Channel
Texas Instruments TPS22924CYZPT							General Purpose	1	1	18.3 mOhm	6-DSBGA	0.89 mm	1.39 mm	85 °C	-40 °C	2 A	6-XFBGA DSBGA	Non-Inverting	High Side	Load Discharge Slew Rate Controlled	On/Off	Surface Mount	Not Required	Not Required	1	3.6 V	0.75 V	N-Channel
Texas Instruments TPS22924BYZZR							General Purpose	1	1	18.3 mOhm	6-DSBGA			85 °C	-40 °C	2 A	6-XFBGA DSBGA	Non-Inverting	High Side	Load Discharge Slew Rate Controlled	On/Off	Surface Mount	Not Required	Not Required	1	3.6 V	0.75 V	N-Channel
