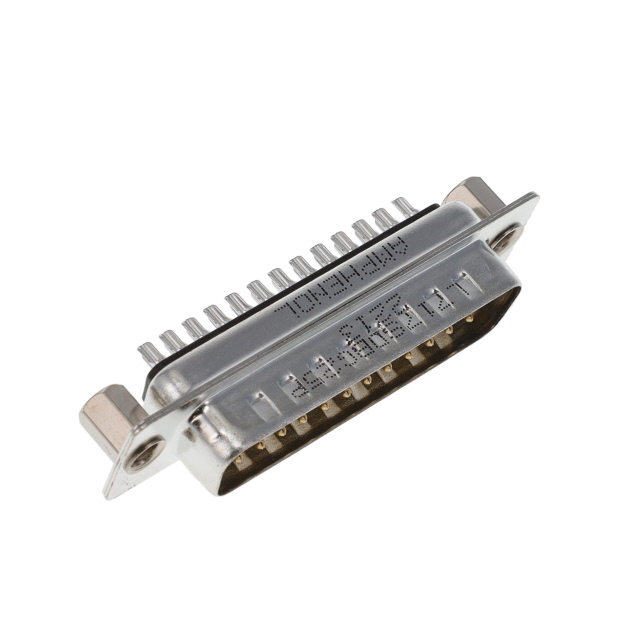

L717SDBG25P

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 25POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

L717SDBG25P

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 25POS SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717SDBG25P

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents
Flange Feature	Cable Side (M3)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Voltage Rating	250 VDC
Wire Gauge	20 AWG

L717SDBG25 Series

Part	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Dielectric Material	Connector Style	Termination	Contact Type	Connector Type	Contact Form	Color	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mounting Type	Voltage Rating	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Material Flammability Rating	Flange Feature	Features	Number of Rows	Contact Finish Thickness	Wire Gauge	Flange Feature [custom]	Flange Feature [custom]
Amphenol ICC (Commercial Products) L717SDBG25POL2C309	B DB	3	Thermoplastic Glass Filled	D-Sub	Solder	Signal	Male Pins Plug	Stamped	Black	Gold	-55 °C	125 °C	3 A	Through Hole	250 VDC	Brass	0.76 Ám	30 Áin	UL94 V-0	Board Side (M3)	Grounding Indents	2
Amphenol ICC (Commercial Products) L717SDBG25P	B DB	3	Thermoplastic Glass Filled	D-Sub		Signal	Male Pins Plug	Stamped	Black	Gold	-55 °C	105 ░C	3 A	Free Hanging (In-Line)	250 VDC	Brass			UL94 V-0	Cable Side (M3)	Grounding Indents	2	Flash	20 AWG
Amphenol ICC (Commercial Products) L717SDBG25POL2RM5GC309	B DB	3	Thermoplastic Glass Filled	D-Sub	Solder	Signal	Male Pins Plug	Stamped	Black	Gold	-55 °C	125 °C	3 A	Through Hole	250 VDC	Brass	0.76 Ám	30 Áin	UL94 V-0	Board Side (M3)	Board Lock Grounding Indents	2
Amphenol ICC (Commercial Products) L717SDBG25PC309	B DB	3	Thermoplastic Glass Filled	D-Sub		Signal	Male Pins Plug	Stamped	Black	Gold	-55 °C	125 °C	3 A	Free Hanging (In-Line)	250 VDC	Brass	0.76 Ám	30 Áin	UL94 V-0	Cable Side (M3)	Grounding Indents	2
Amphenol ICC (Commercial Products) L717SDBG25POL2RM5	B DB	3	Thermoplastic Glass Filled	D-Sub	Solder	Signal	Male Pins Plug	Stamped	Black	Gold	-55 °C	125 °C	3 A	Through Hole	250 VDC	Brass			UL94 V-0	Board Side (M3)	Board Lock Grounding Indents	2	Flash
Amphenol ICC (Commercial Products) L717SDBG25POL2	B DB	3	Thermoplastic Glass Filled	D-Sub	Solder	Signal	Male Pins Plug	Stamped	Black	Gold	-55 °C	125 °C	3 A	Through Hole	250 VDC	Brass			UL94 V-0	Board Side (M3)	Grounding Indents	2	Flash
Amphenol ICC (Commercial Products) L717SDBG25POL2RM8C309	B DB	3	Thermoplastic Glass Filled	D-Sub	Solder	Signal	Male Pins Plug	Stamped	Black	Gold	-55 °C	125 °C	3 A	Through Hole	250 VDC	Brass	0.76 Ám	30 Áin	UL94 V-0		Board Lock Grounding Indents	2			Board Side (M3)	Mating Side Female Screwlock (M3)
Amphenol ICC (Commercial Products) L717SDBG25POL2RM8G	B DB	3	Thermoplastic Glass Filled	D-Sub	Solder	Signal	Male Pins Plug	Stamped	Black	Gold	-55 °C	125 °C	3 A	Through Hole	250 VDC	Brass			UL94 V-0		Board Lock Grounding Indents	2	Flash		Board Side (M3)	Mating Side Female Screwlock (M3)
Amphenol ICC (Commercial Products) L717SDBG25POL2RM8	B DB	3	Thermoplastic Glass Filled	D-Sub	Solder	Signal	Male Pins Plug	Stamped	Black	Gold	-55 °C	125 °C	3 A	Through Hole	250 VDC	Brass			UL94 V-0		Board Lock Grounding Indents	2	Flash		Board Side (M3)	Mating Side Female Screwlock (M3)
Amphenol ICC (Commercial Products) L717SDBG25POL2G	B DB	3	Thermoplastic Glass Filled	D-Sub	Solder	Signal	Male Pins Plug	Stamped	Black	Gold	-55 °C	125 °C	3 A	Through Hole	250 VDC	Brass			UL94 V-0	Board Side (M3)	Grounding Indents	2	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.09
		10	$ 0.95
		25	$ 0.91
		50	$ 0.89
		100	$ 0.85
		250	$ 0.77
		450	$ 0.71

Description

General part information

L717SDBG25 Series

25 Position D-Sub Plug, Male Pins Connector
