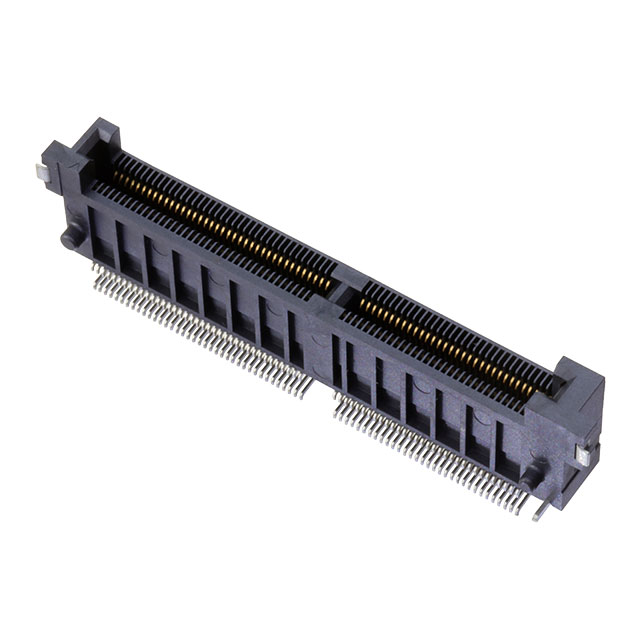

MEC5-070-01-L-RA-W2-TR

Active

Samtec Inc.

CONN EDGE DUAL FML 140POS 0.020

Search across all available documentation for this part.

Active

Samtec Inc.

CONN EDGE DUAL FML 140POS 0.020

Technical Specifications

Parameters and characteristics for this part

Specification	MEC5-070-01-L-RA-W2-TR

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Features	Solder Retention, Board Guide
Gender	Female
Material - Insulation	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount, Right Angle
Number of Positions	140
Number of Positions/Bay/Row [custom]	70
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Read Out	Dual
Termination	Solder

Part	Card Type	Read Out	Gender	Pitch [x]	Pitch [x]	Contact Finish	Features	Material - Insulation	Number of Rows	Termination	Card Thickness	Card Thickness	Contact Finish Thickness	Contact Finish Thickness	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Number of Positions/Bay/Row [custom]	Mounting Type	Contact Material
Samtec Inc. MEC5-070-01-L-RA-W2-TR	Non Specified - Dual Edge	Dual	Female	0.5 mm	0.02 in	Gold	Board Guide Solder Retention	Liquid Crystal Polymer (LCP)	2	Solder	0.062 in	1.57 mm	10 Áin	0.25 Ám	Black	-55 °C	125 °C	140	70	Surface Mount Right Angle	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

140 Position Female Connector Non Specified - Dual Edge Gold 0.020" (0.50mm) Black
