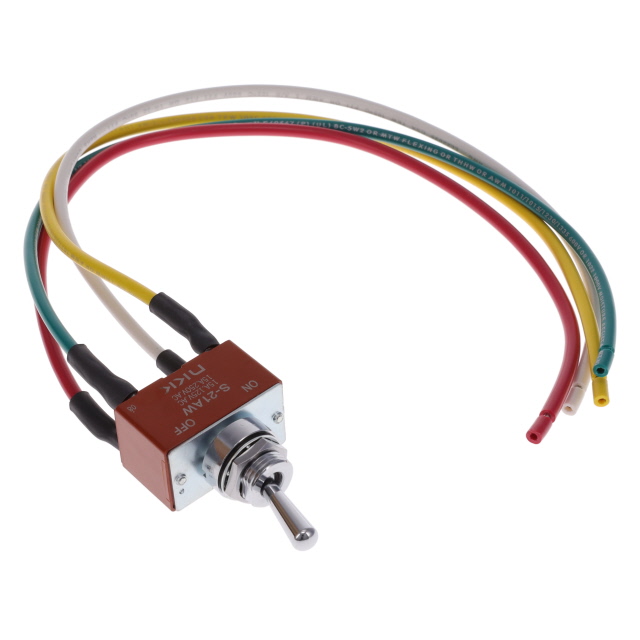

S21AW-WL

Active

NKK Switches

SWITCH TOGGLE DPST 15A 125V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH TOGGLE DPST 15A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	S21AW-WL

Actuator Length [x]	17.5 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	1 x 1
Circuit	DPST
Current Rating (Amps)	15 A
Electrical Life	25000 Steps
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-30 ░C
Panel Cutout Dimensions [diameter]	12.5 mm
Switch Function	On-Off
Termination Style	Wire Leads
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Electrical Life	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Bushing Thread	Bushing Thread	Ingress Protection	Voltage Rating - AC	Current Rating (Amps)	Actuator Length [x]	Circuit	Termination Style	Features	Voltage Rating - DC	Switch Function	Panel Cutout Dimensions [diameter]	Actuator Type	Actuator Material
NKK Switches S21AWB	25000 Steps	Non-Illuminated	70 °C	-30 ░C	M12	1 x 1	IP68 - Dust Tight Waterproof	125 V	15 A	17.5 mm	DPST	Solder Lug	Waterproof Boot	30 V	On-Off	12.5 mm	Standard Round
NKK Switches S21AW-WL	25000 Steps	Non-Illuminated	70 °C	-30 ░C	M12	1 x 1	IP67 - Dust Tight Waterproof	125 V	15 A	17.5 mm	DPST	Wire Leads		30 V	On-Off	12.5 mm	Standard Round	Brass Chrome Plated
NKK Switches S21AWF	25000 Steps	Non-Illuminated	70 °C	-30 ░C	M12	1 x 1	IP67 - Dust Tight Waterproof	125 V	15 A 20 A	17.5 mm	DPST	Quick Connect - 0.250" (6.3mm)		30 V	On-Off	12.5 mm	Standard Round	Brass Chrome Plated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPST Panel Mount
