BXRC-57C2001-C-83

Active

BRIDGELUX

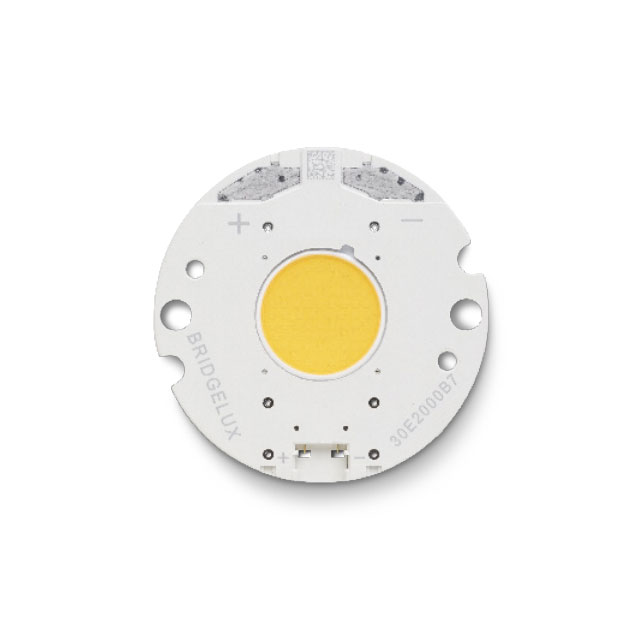

LED COB VERO 13C WHT ROUND 5700K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BXRC-57C2001-C-83

Active

BRIDGELUX

LED COB VERO 13C WHT ROUND 5700K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BXRC-57C2001-C-83	BXRC-57 Series

CCT (K)	5700 K	5700 K
Color	Cool, White	Cool, White
Configuration	Round	Round, Starboard
CRI (Color Rendering Index)	70	70 - 80
Current - Max [Max]	1.75 A	1 - 900 A
Current - Test	500 mA	1.05 - 900 A
Features	-	With Connector
Height [z]	1.8 mm	1.8 - 3.6 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	13.3 mm	9.9 - 29.2 mm
Lumens/Watt @ Current - Test	188 lm/W	147 - 195 lm/W
Luminous Flux @ Current/Temperature	3138 lm	1302 - 20902 lm
Size / Dimension [diameter]	36.2 mm	20 - 49.2 mm
Temperature - Test	-	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	33.4 V	25.3 - 69.4 V

BXRC-57 Series

LED COB VERO SE 29 WHT RND 5700K

...

Part	Height [z]	Current - Test	Configuration	Lens Type	CRI (Color Rendering Index)	Viewing Angle	Light Emitting Surface (LES) [diameter]	Voltage - Forward (Vf) (Typ)	Color	Current - Max [Max]	Lumens/Watt @ Current - Test	Luminous Flux @ Current/Temperature	Type	CCT (K)	Size / Dimension [diameter]	Temperature - Test	Features
BRIDGELUX BXRC-57E10K1-C-74-SE	3.6 mm	1.71 A	Round	Flat	80	120 °	29.2 mm	69.4 V	Cool, White	3.42 A	169 lm/W	20056 lm	Chip On Board (COB)	5700 K	49.2 mm
BRIDGELUX BXRC-57C1001-B-73-SE	3.6 mm	270 mA	Round	Flat	70	120 °	9.9 mm	33.8 V	Cool, White	540 mA	153 lm/W	1395 lm	Chip On Board (COB)	5700 K	30.8 mm	85 °C
BRIDGELUX BXRC-57E2001-D-74-SE	3.6 mm	500 mA	Round	Flat	80	120 °	13.4 mm	30.9 V	Cool, White	1 A	154 lm/W	2375 lm	Chip On Board (COB)	5700 K	36.2 mm	85 °C
BRIDGELUX BXRC-57C4001-D-73-SE	3.6 mm	1.05 A	Round	Flat	70	120 °	18.4 mm	28.3 V	Cool, White	2.1 A	160 lm/W	4741 lm	Chip On Board (COB)	5700 K	36.2 mm	85 °C
BRIDGELUX BXRC-57C10K1-B-74	1.9 mm	1.8 A	Round	Flat	70	120 °	29.2 mm	52 V	Cool, White	3.6 A	176 lm/W		Chip On Board (COB)	5700 K	49.2 mm
BRIDGELUX BXRC-57E2001-B-74	1.9 mm	450 mA	Round	Flat	80	120 °	13.2 mm	34.1 V	Cool, White	900 mA	155 lm/W	2374 lm	Chip On Board (COB)	5700 K	36.2 mm	85 °C	With Connector
BRIDGELUX BXRC-57E10K1-D-73-SE	3.6 mm	2.1 A	Round	Flat	80	120 °	29.2 mm	37.6 V	Cool, White	4.2 A	169 lm/W	13344 lm	Chip On Board (COB)	5700 K	49.2 mm
BRIDGELUX BXRC-57C10K1-C-74-SE	3.6 mm	1.71 A	Round	Flat	70	120 °	29.2 mm	69.4 V	Cool, White	3.42 A	176 lm/W	20887 lm	Chip On Board (COB)	5700 K	49.2 mm
BRIDGELUX BXRC-57C2001-C-83	1.8 mm	500 mA	Round	Flat	70	120 °	13.3 mm	33.4 V	Cool, White	1.75 A	188 lm/W	3138 lm	Chip On Board (COB)	5700 K	36.2 mm
BRIDGELUX BXRC-57C2001-C-73-SE	3.6 mm	630 mA	Round	Flat	70	120 °	13.4 mm	33.9 V	Cool, White	1.26 A	160 lm/W	3414 lm	Chip On Board (COB)	5700 K	36.2 mm	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.85
		10	$ 5.69
		80	$ 5.28

Description

General part information

BXRC-57 Series

LED Lighting COBs Engines Modules Chip On Board (COB) Gen 8 Vero® 13 Array White, Cool Round
