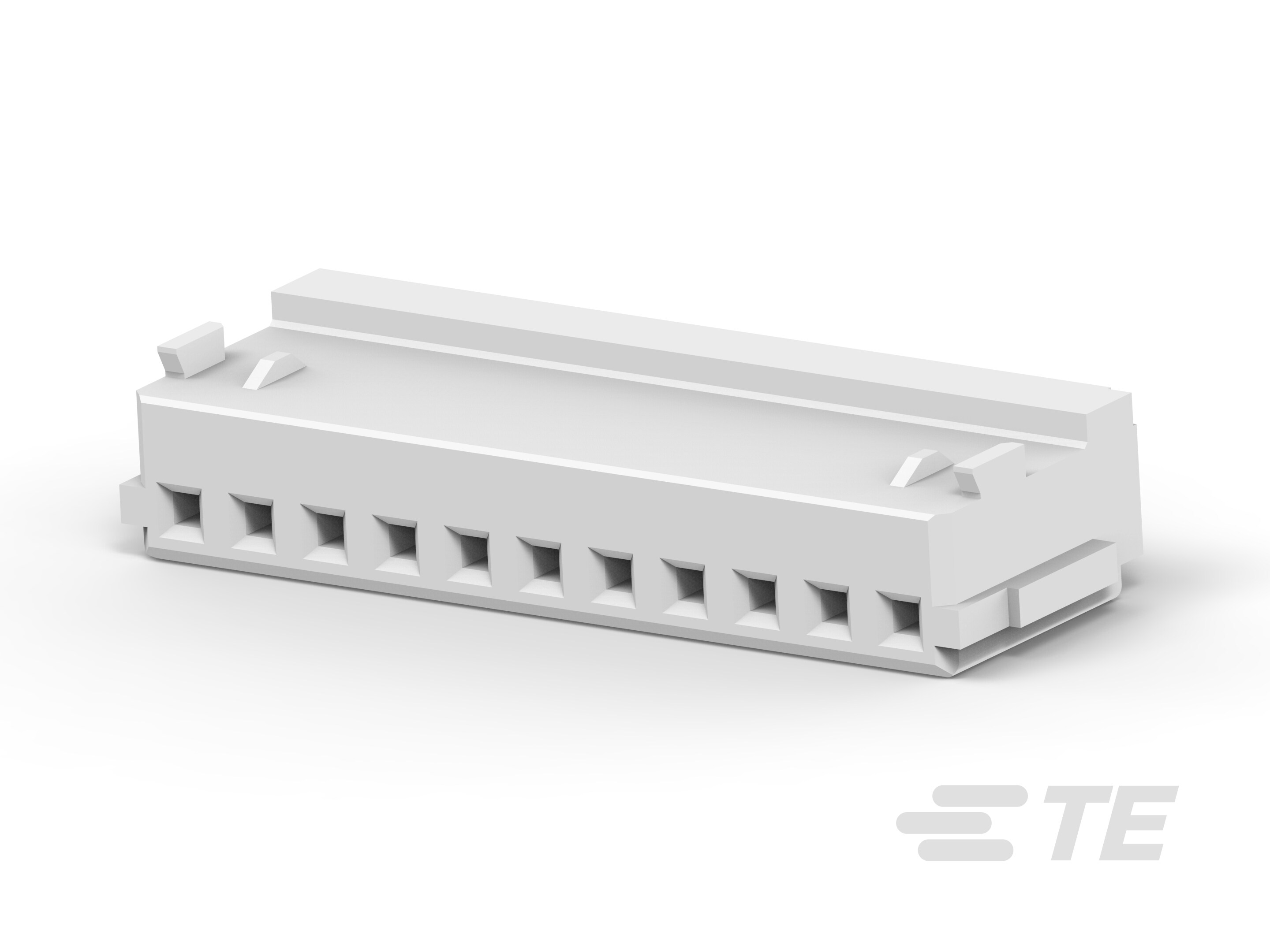

Specification	1-353908-1

Color	White
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polyamide (PA66), Nylon 6/6
Mounting Type	Free Hanging (In-Line)
Number of Positions	11
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-30 °C
Pitch	0.059 in

Mini CT Series

Headers & Wire Housings MINI CT SGL DIP H 19P BLUE

Part	Current Rating	Current Rating	Number of Rows	Insulation Material	Contact Finish - Mating	Connector Type	Contact Shape	Fastening Type	Features	Contact Length - Mating	Number of Positions	Contact Material	Number of Positions Loaded	Contact Finish - Post	Shrouding	Termination	Mounting Type	Voltage Rating	Insulation Height	Contact Type	Pitch - Mating	Operating Temperature (Min)	Operating Temperature (Max)	Insulation Color	Style	Material Flammability Rating	Convert To (Adapter End)	Convert From (Adapter End)	Pitch	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Contact Finish	Wire Type	Color	Cable Termination
TE Connectivity AMP Connectors 1-292228-9	0 A	Varies by Wire Gauge	1	Glass Filled Nylon 6T Polyamide (PA6T)	Tin	Header	Square	Detent Lock	Solder Retention	0.094 in	19	Brass	All	Tin	Shrouded - 4 Wall	Solder	Right Angle Surface Mount	50 V	0.193 in	Male Pin	0.059 in	-30 °C	105 °C	Beige	Board Cable/Wire	UL94 V-0
TE Connectivity AMP Connectors 5-292215-7			1								7						Panel Mount Snap-In										Male Pins Plug	Male Pins Plug	0.059 in
TE Connectivity AMP Connectors 5-292227-3	0 A	Varies by Wire Gauge	1	Glass Filled Nylon 6T Polyamide (PA6T)	Tin	Header	Square	Detent Lock	Board Guide Solder Retention	0.094 in	3	Brass	All	Tin	Shrouded - 4 Wall	Solder	Right Angle Surface Mount	50 V	0.193 in	Male Pin	0.059 in	-30 °C	105 °C	Black	Board Cable/Wire	UL94 V-0
TE Connectivity AMP Connectors 1-292228-0	0 A	Varies by Wire Gauge	1	Glass Filled Nylon 6T Polyamide (PA6T)	Tin	Header	Square	Detent Lock	Solder Retention	0.094 in	10	Brass	All	Tin	Shrouded - 4 Wall	Solder	Right Angle Surface Mount	50 V	0.193 in	Male Pin	0.059 in	-30 °C	105 °C	Beige	Board Cable/Wire	UL94 V-0
TE Connectivity AMP Connectors 5-292215-3			1								3						Panel Mount Snap-In										Male Pins Plug	Male Pins Plug	0.059 in
TE Connectivity AMP Connectors 1-292215-7			1								17						Panel Mount Snap-In										Male Pins Plug	Male Pins Plug	0.059 in
TE Connectivity AMP Connectors 7-353293-0			1			Receptacle			Closed End		20						Free Hanging (In-Line)			Female Socket									0.059 in	26 AWG	28 AWG	Tin	Discrete	Blue	IDC
TE Connectivity AMP Connectors 292215-4			1								4						Panel Mount Snap-In										Male Pins Plug	Male Pins Plug	0.059 in
TE Connectivity AMP Connectors 1-292230-7	0 A	Varies by Wire Gauge	1	Glass Filled Nylon Polyamide (PA)	Tin	Header	Square	Detent Lock	Board Guide	0.094 in	17	Brass	All	Tin	Shrouded - 4 Wall	Solder	Surface Mount	50 V	0.272 in	Male Pin	0.059 in	-30 °C	105 °C	Beige	Board Cable/Wire	UL94 V-0
TE Connectivity AMP Connectors 292232-3	0 A	Varies by Wire Gauge	1	Glass Filled Nylon Polyamide (PA)	Tin	Header	Square	Detent Lock	Board Guide Pick and Place	0.094 in	3	Brass	All	Tin	Shrouded - 4 Wall	Solder	Surface Mount	50 V	0.272 in	Male Pin	0.059 in	-30 °C	105 °C	Beige	Board Cable/Wire	UL94 V-0
