Mini CT Series
Headers & Wire Housings MINI CT SGL DIP H 19P BLUE
Manufacturer: TE Connectivity AMP Connectors
Catalog
Headers & Wire Housings MINI CT SGL DIP H 19P BLUE
Beta
⌘K
Headers & Wire Housings MINI CT SGL DIP H 19P BLUE
Headers & Wire Housings MINI CT SGL DIP H 19P BLUE
Headers & Wire Housings MINI CT SGL DIP H 19P BLUE
| Part | Current Rating | Current Rating | Number of Rows | Insulation Material | Contact Finish - Mating | Connector Type | Contact Shape | Fastening Type | Features | Contact Length - Mating | Number of Positions | Contact Material | Number of Positions Loaded | Contact Finish - Post | Shrouding | Termination | Mounting Type | Voltage Rating | Insulation Height | Contact Type | Pitch - Mating | Operating Temperature (Min) | Operating Temperature (Max) | Insulation Color | Style | Material Flammability Rating | Convert To (Adapter End) | Convert From (Adapter End) | Pitch | Wire Gauge (AWG) (Min) | Wire Gauge (AWG) (Max) | Contact Finish | Wire Type | Color | Cable Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

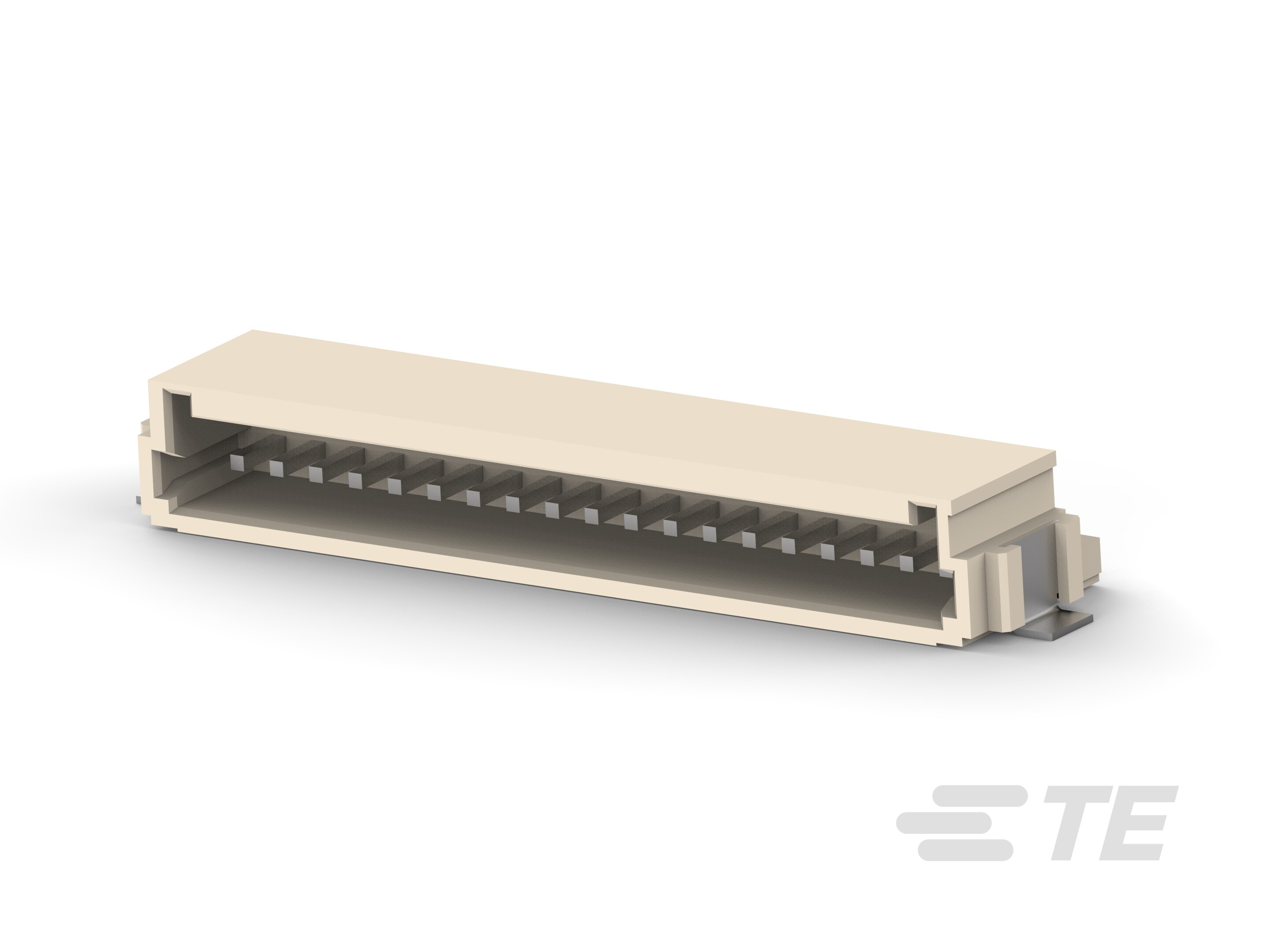

 TE Connectivity AMP Connectors | 0 A | Varies by Wire Gauge | 1 | Glass Filled Nylon 6T Polyamide (PA6T) | Tin | Header | Square | Detent Lock | Solder Retention | 0.094 in | 19 | Brass | All | Tin | Shrouded - 4 Wall | Solder | Right Angle Surface Mount | 50 V | 0.193 in | Male Pin | 0.059 in | -30 °C | 105 °C | Beige | Board Cable/Wire | UL94 V-0 | |||||||||

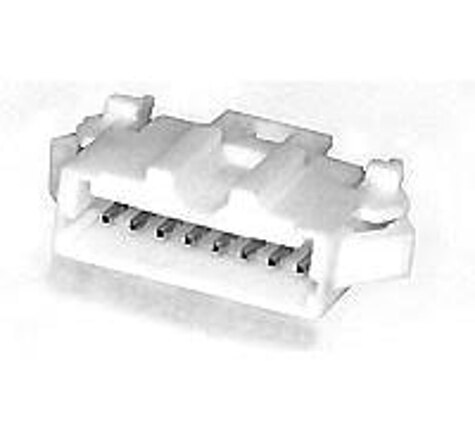

 TE Connectivity AMP Connectors | 1 | 7 | Panel Mount Snap-In | Male Pins Plug | Male Pins Plug | 0.059 in | |||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | 0 A | Varies by Wire Gauge | 1 | Glass Filled Nylon 6T Polyamide (PA6T) | Tin | Header | Square | Detent Lock | Board Guide Solder Retention | 0.094 in | 3 | Brass | All | Tin | Shrouded - 4 Wall | Solder | Right Angle Surface Mount | 50 V | 0.193 in | Male Pin | 0.059 in | -30 °C | 105 °C | Black | Board Cable/Wire | UL94 V-0 | |||||||||
 TE Connectivity AMP Connectors | 0 A | Varies by Wire Gauge | 1 | Glass Filled Nylon 6T Polyamide (PA6T) | Tin | Header | Square | Detent Lock | Solder Retention | 0.094 in | 10 | Brass | All | Tin | Shrouded - 4 Wall | Solder | Right Angle Surface Mount | 50 V | 0.193 in | Male Pin | 0.059 in | -30 °C | 105 °C | Beige | Board Cable/Wire | UL94 V-0 | |||||||||
TE Connectivity AMP Connectors | 1 | 3 | Panel Mount Snap-In | Male Pins Plug | Male Pins Plug | 0.059 in | |||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | 1 | 17 | Panel Mount Snap-In | Male Pins Plug | Male Pins Plug | 0.059 in | |||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | 1 | Receptacle | Closed End | 20 | Free Hanging (In-Line) | Female Socket | 0.059 in | 26 AWG | 28 AWG | Tin | Discrete | Blue | IDC | ||||||||||||||||||||||
 TE Connectivity AMP Connectors | 1 | 4 | Panel Mount Snap-In | Male Pins Plug | Male Pins Plug | 0.059 in | |||||||||||||||||||||||||||||
 TE Connectivity AMP Connectors | 0 A | Varies by Wire Gauge | 1 | Glass Filled Nylon Polyamide (PA) | Tin | Header | Square | Detent Lock | Board Guide | 0.094 in | 17 | Brass | All | Tin | Shrouded - 4 Wall | Solder | Surface Mount | 50 V | 0.272 in | Male Pin | 0.059 in | -30 °C | 105 °C | Beige | Board Cable/Wire | UL94 V-0 | |||||||||
 TE Connectivity AMP Connectors | 0 A | Varies by Wire Gauge | 1 | Glass Filled Nylon Polyamide (PA) | Tin | Header | Square | Detent Lock | Board Guide Pick and Place | 0.094 in | 3 | Brass | All | Tin | Shrouded - 4 Wall | Solder | Surface Mount | 50 V | 0.272 in | Male Pin | 0.059 in | -30 °C | 105 °C | Beige | Board Cable/Wire | UL94 V-0 |
