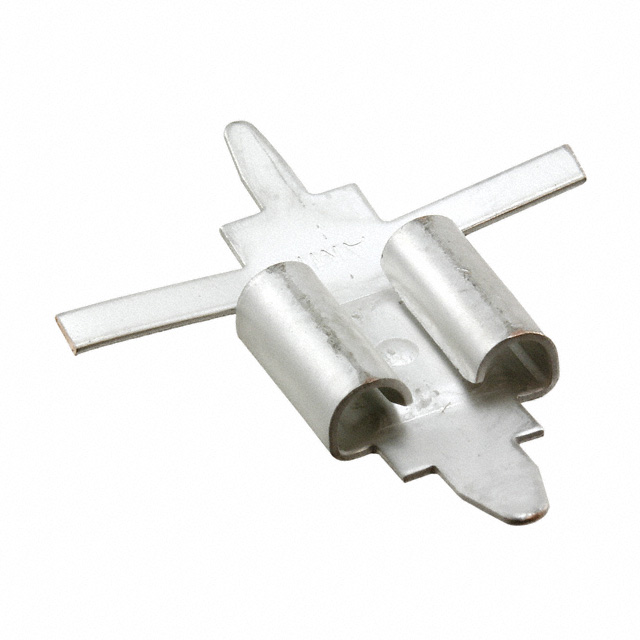

1217107-1
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 0.250 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217107-1
ActiveTE Connectivity AMP Connectors
CONN QC RCPT 0.250 SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217107-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Gender | Female |
| Insulation | Non-Insulated |
| Mounting Type | Through Hole |
| Tab Length | 6.35 mm |
| Tab Length | 0.25 in |
| Tab Thickness | 0.02 " |
| Tab Thickness | 0.51 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Horizontal |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.39 | |
| 10 | $ 0.35 | |||
| 25 | $ 0.35 | |||
| 50 | $ 0.34 | |||
| 100 | $ 0.29 | |||
| 250 | $ 0.27 | |||
| 500 | $ 0.25 | |||
| 1000 | $ 0.22 | |||
| Tape & Reel (TR) | 3000 | $ 0.22 | ||
| 6000 | $ 0.20 | |||
| 15000 | $ 0.18 | |||
1217107 Series
CONN QC RCPT 0.250 SOLDER
| Part | Termination | Mounting Type | Contact Material | Tab Width | Tab Width | Gender | Insulation | Tab Length | Tab Length | Contact Finish | Terminal Type | Tab Thickness | Tab Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217107-1 | Solder | Through Hole | Phosphor Bronze | 6.35 mm | 0.25 in | Female | Non-Insulated | 6.35 mm | 0.25 in | Tin | Horizontal | 0.02 " | 0.51 mm |
Description
General part information
1217107 Series
0.250" (6.35mm) Quick Connect Female Solder Connector Non-Insulated
