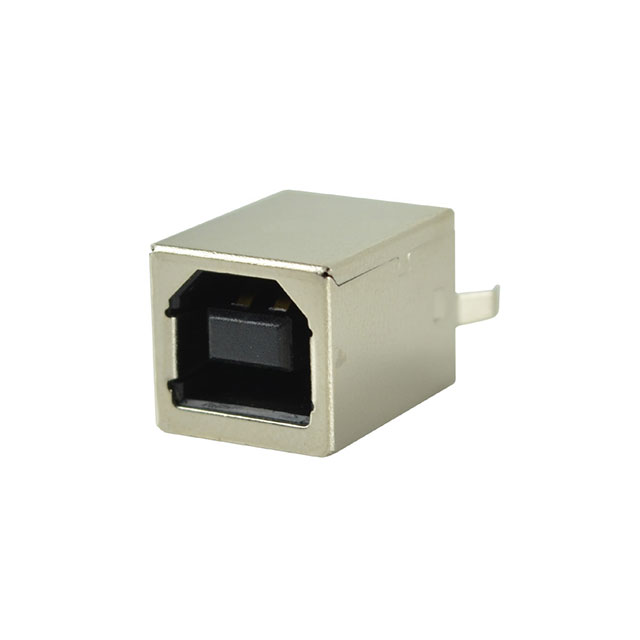

UJ2-BV-1-TH

Active

CUI Devices

CONN RCPT USB2.0 TYPEB 4POS VERT

Search across all available documentation for this part.

Active

CUI Devices

CONN RCPT USB2.0 TYPEB 4POS VERT

Technical Specifications

Parameters and characteristics for this part

Specification	UJ2-BV-1-TH

Connector Type	USB-B
Contact Finish	Gold
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	1500
Mounting Feature	Vertical
Mounting Type	Through Hole
Number of Contacts [custom]	4
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Shell/Shielding Material	Brass
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder
Voltage - Rated	30 VAC

CONN RCPT USB2.0 TYPEB 4POS VERT

Part	Mating Cycles	Connector Type	Number of Ports	Shielding	Number of Contacts [custom]	Specifications	Mounting Feature	Insulation Color	Gender	Material Flammability Rating	Contact Finish	Shell/Shielding Material	Termination	Mounting Type	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]
CUI Devices UJ2-BV-1-TH	1500	USB-B	1	Shielded	4	USB 2.0	Vertical	Black	Receptacle	UL94 V-0	Gold	Brass	Solder	Through Hole	30 VAC	85 °C	-20 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

USB-B (USB TYPE-B) USB 2.0 Receptacle Connector 4 Position Through Hole
