6-178842-1
ActiveTE Connectivity AMP Connectors

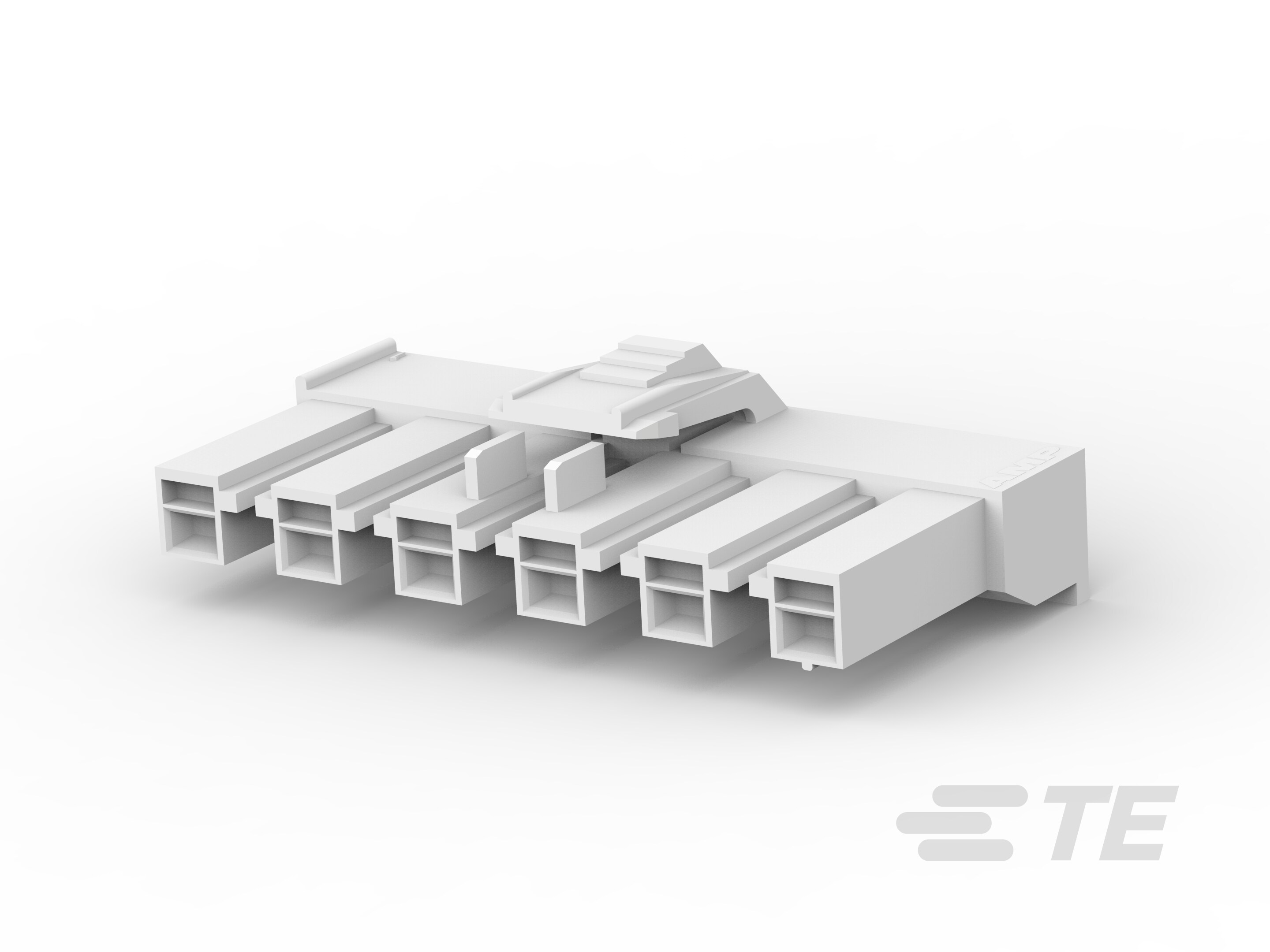

AMP U/P SGL ROW PLUG HSG 6P
6-178842-1
ActiveTE Connectivity AMP Connectors
AMP U/P SGL ROW PLUG HSG 6P
Description
General part information
178842 Series
6 Position, Plug, Housing, Crimp, Wire-to-Board / Wire-to-Wire, UL 94V-0, 6.2 mm [.244 in] Centerline, 1 Row, 300 VAC, AMP Universal Power
Technical Specifications
Parameters and characteristics for this part
| Specification | 6-178842-1 |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch | 0.244 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
Drawing EN
Datasheet
ENG_CD_178842_B.pdf
Hand Tool, PN 914181-1, Universal Power Contact (Was IS-505J)
AMP Lattice Connector
AMP UNIVERSAL POWER CONNECTORS REPORT
Crimping of Universal Power Contact
Extraction Tool for UP(913923-1)
AMP Universal Power Connectors
XREF
AMP UNIVERSAL POWER CONNECTOR SERIES
AMP Universal Power Connector
