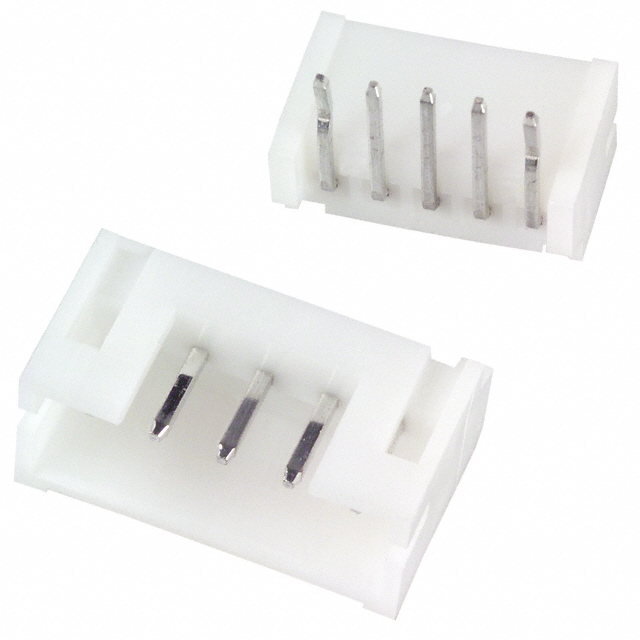

S5B-PH-K-S

Active

JST Sales America Inc.

CONN HEADER R/A 5POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER R/A 5POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	S5B-PH-K-S

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.13 in
Contact Length - Mating	3.3 mm
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	2 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	4.8 mm
Insulation Height	0.189 in
Insulation Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder, Press-Fit
Voltage Rating	100 V

Part	Current Rating (Amps)	Contact Finish - Post	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Length - Mating	Contact Length - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Color	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Material	Mounting Type	Number of Positions Loaded	Contact Material	Connector Type	Fastening Type	Number of Rows	Contact Shape	Material Flammability Rating	Voltage Rating	Contact Type	Style
JST Sales America Inc. S5B-PH-K-S	2 A	Tin	Press-Fit Solder	-25 °C	85 °C	Shrouded - 4 Wall	0.13 in	3.3 mm	0.079 in	2 mm	Natural	4.8 mm	0.189 in	0.134 in	3.4 mm	Polyamide (PA66) Nylon 6/6	Through Hole Right Angle	All	Brass	Header	Detent Lock	1	Square	UL94 V-0	100 V	Male Pin	Board to Cable/Wire
JST Sales America Inc. S5B-PH-KL	2 A	Tin	Press-Fit Solder	-25 °C	85 °C	Shrouded - 4 Wall			0.079 in	2 mm	Gray	4.8 mm	0.189 in	0.134 in	3.4 mm	Polyamide (PA66) Nylon 6/6	Through Hole Right Angle	All	Copper Alloy	Header	Detent Lock	1	Square	UL94 V-0	100 V	Male Pin	Board to Cable/Wire

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 5 position 0.079" (2.00mm)
