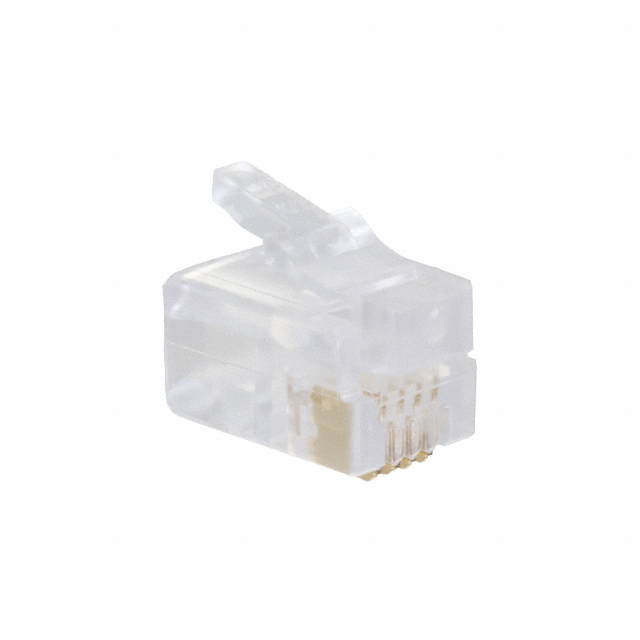

Specification	940-SP-3044R

Cable Type	Solid or Stranded Wires, Round Cable
Color	Translucent - Clear
Connector Type	Plug, RJ10, RJ22, RJ9
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Material	Phosphor Bronze
Current Rating	1.5 A
Housing Material	PC, Polycarbonate
Length	0.525 in
Number of Contacts	4
Number of Positions	4
Shielding	Unshielded
Termination	IDC
Voltage Rating	150 VDC

940-SP-30 Series

Part	Contact Finish	Contact Finish Thickness	Contact Material	Current Rating	Housing Material	Voltage Rating	Shielding	Color	Termination	Connector Type	Cable Type	Length	Number of Positions	Number of Contacts	Features	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Ratings
Bel Fuse Inc. 940-SP-301010R	Gold	50 µin	Phosphor Bronze	1.5 A	PC Polycarbonate	150 VDC	Unshielded	Translucent - Clear	IDC	Plug RJ50	Round Cable Solid or Stranded Wires	0.885 "	10	10
Bel Fuse Inc. 940-SP-3088R-A286	Gold	50 µin	Phosphor Bronze	1.5 A	PC Polycarbonate	150 VDC	Unshielded	Translucent - Clear	IDC	Ethernet Plug RJ45	Round Cable Solid or Stranded Wires	0.885 "	8	8	Keyed
Bel Fuse Inc. 940-SP-3088R-A133	Gold	50 µin	Phosphor Bronze	1.5 A	PC Polycarbonate	150 VDC	Unshielded	Translucent - Clear	IDC	Ethernet Plug RJ45	Round Cable Solid or Stranded Wires	0.885 "	8	8
Bel Fuse Inc. 940-SP-3088	Gold	50 µin	Phosphor Bronze	1.5 A	PC Polycarbonate	150 VDC	Unshielded	Translucent - Clear	IDC	Ethernet Plug RJ45	Flat Oval Cable Solid or Stranded Wires	0.885 "	8	8
Bel Fuse Inc. 940-SP-3044	Gold	50 µin	Phosphor Bronze	1.5 A	PC Polycarbonate	150 VDC	Unshielded	Translucent - Clear	IDC	Plug RJ10 RJ22 RJ9	Flat Oval Cable Solid or Stranded Wires	0.525 in	4	4
Bel Fuse Inc. 940-SP-3046	Gold	50 µin	Phosphor Bronze	1.5 A	PC Polycarbonate	150 VDC	Unshielded	Translucent - Clear	IDC	Plug RJ11 RJ14	Flat Oval Cable Solid or Stranded Wires	0.525 in	6	4
Bel Fuse Inc. 940-SP-3088R	Gold	50 µin	Phosphor Bronze	1.5 A	PC Polycarbonate	150 VDC	Unshielded	Translucent - Clear	IDC	Ethernet Plug RJ45	Round Cable Solid or Stranded Wires	0.885 "	8	8
Bel Fuse Inc. 940-SP-3046-B25	Gold	50 µin	Phosphor Bronze	1.5 A	PC Polycarbonate	150 VDC	Unshielded	Translucent - Clear	IDC	Plug RJ11 RJ14	Flat Oval Cable Solid or Stranded Wires	0.525 in	6	4		28 AWG	24 AWG	Cat5
Bel Fuse Inc. 940-SP-3066	Gold	50 µin	Phosphor Bronze	1.5 A	PC Polycarbonate	150 VDC	Unshielded	Translucent - Clear	IDC	Plug RJ11 RJ12 RJ14 RJ25	Flat Oval Cable Solid or Stranded Wires	0.525 in	6	6
Bel Fuse Inc. 940-SP-3066R-OST	Gold	50 µin	Phosphor Bronze	1.5 A	PC Polycarbonate	150 VDC	Unshielded	Translucent - Clear	IDC	Plug RJ11 RJ12 RJ14 RJ25	Round Cable Solid or Stranded Wires	0.525 in	6	6	Offset Latch
