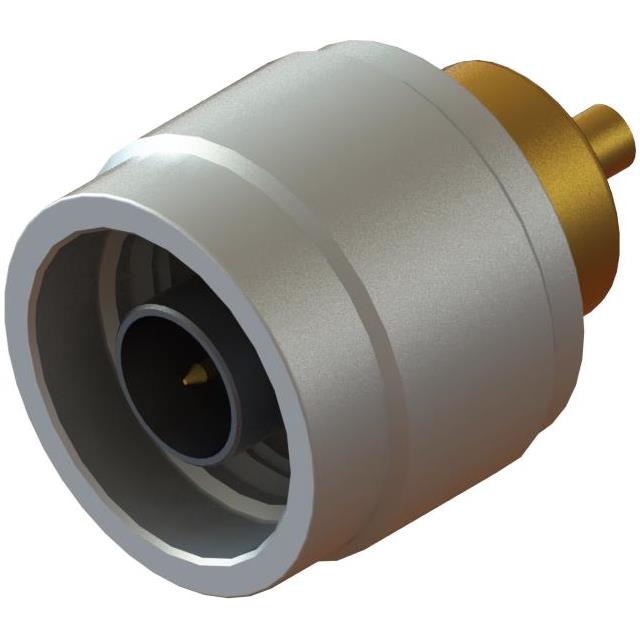

Specification	5011-00035

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-402
Cable Group Diameter (Default)	0.141 in
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	12.4 GHz
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-45 °C
Shield Termination	Solder

5011-00 Series

Part	Body Finish	Operating Temperature (Max)	Operating Temperature (Min)	Mating Cycles	Dielectric Material	Body Material	Center Contact Plating	Shield Termination	Center Contact Material	Fastening Type	Frequency - Max	Number of Ports	Mounting Type	Contact Termination	Housing Color	Connector Style	Impedance	Cable Group	Cable Group Diameter (Default)	Connector Type
McGill Microwave Systems 5011-00035	Nickel	120 °C	-45 °C	500 cycles	Polytetrafluoroethylene (PTFE)	Brass	Gold	Solder	Brass	Threaded	12.4 GHz	1	Free Hanging (In-Line)	Solder	Silver	N Type	50 Ohm	RG-402	0.141 in	Male Pin Plug
McGill Microwave Systems 5011-00034	Nickel	125 °C	-55 °C	500 cycles	Polytetrafluoroethylene (PTFE)	Brass	Gold	Solder	Brass	Threaded	12.4 GHz	1	Free Hanging (In-Line)	Solder	Silver	N Type	50 Ohm	RG-405	0.085 in	Male Pin Plug
