C503B-BAN-CY0C0461

Obsolete

Cree LED

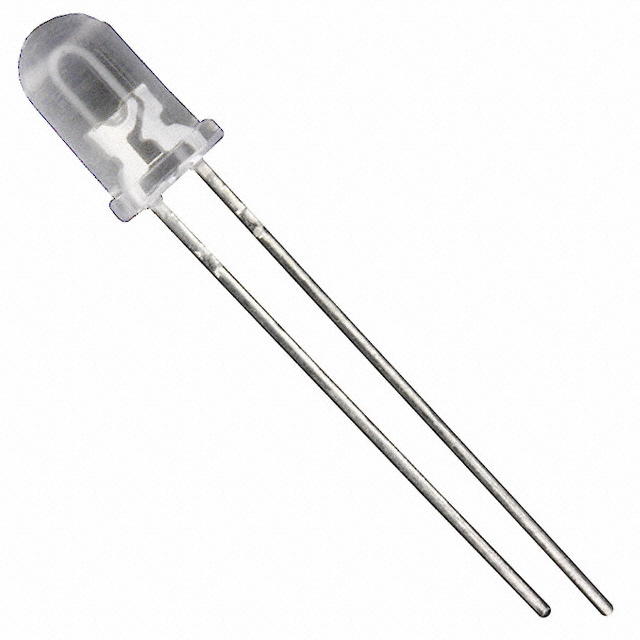

LED UNI-COLOR BLUE 2-PIN T-1 3/4 BULK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

C503B-BAN-CY0C0461

Obsolete

Cree LED

LED UNI-COLOR BLUE 2-PIN T-1 3/4 BULK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

C503B Series

Blue 470nm LED Indication - Discrete 3.2V Radial

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	C503B-BAN-CY0C0461	C503B Series

Color	Blue	Red, Blue, Green, Amber, Cool, White
Configuration	Standard	Standard
Current - Test	20 mA	20 mA
Height (Max)	-	8.6 - 13.3 mm
Height (Max) [Max]	10.3 mm	10.3 - 12.7 mm
Lens Color	Colorless	Colorless
Lens Size	-	T-1 3/4
Lens Size	-	5 mm
Lens Size [diameter]	5 mm Dia	5 mm Dia
Lens Style	Round with Domed Top	Round with Domed Top
Lens Transparency	Clear	Clear
Millicandela Rating	19380 mcd	2850 - 34800 mcd
Mounting Type	Through Hole	Through Hole
Package / Case	Radial	Radial
Supplier Device Package	-	5 mm
Supplier Device Package [diameter]	5 mm	5 mm
Viewing Angle	15 °	15 - 30 °
Voltage - Forward (Vf) (Typ)	3.2 V	2.1 - 3.2 V
Wavelength - Dominant	470 nm	470 - 624 nm
Wavelength - Dominant	-	527 nm
Wavelength - Dominant	-	9000 K

C503B Series

LED RED CLEAR 5MM ROUND T/H

...

Part	Wavelength - Dominant	Color	Package / Case	Viewing Angle	Lens Color	Millicandela Rating	Lens Size [diameter]	Height (Max) [Max]	Mounting Type	Lens Style	Supplier Device Package [diameter]	Current - Test	Voltage - Forward (Vf) (Typ)	Configuration	Lens Transparency	Height (Max) [Max] [z]	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Supplier Device Package	Lens Size	Lens Size
Cree LED C503B-RAN-CZ0A0AA1	624 nm	Red	Radial	15 °	Colorless	12500 mcd	5 mm Dia	10.3 mm	Through Hole	Round with Domed Top	5 mm	20 mA	2.1 V	Standard	Clear
Cree LED C503B-RBS-CY0Z0AA1	624 nm	Red	Radial	23 °	Colorless	8930 mcd	5 mm Dia		Through Hole	Round with Domed Top	5 mm	20 mA	2.1 V	Standard	Clear	13.3 mm
Cree LED C503B-BCN-CX0Y0451	470 nm	Blue	Radial	30 °	Colorless	6190 mcd	5 mm Dia		Through Hole	Round with Domed Top	5 mm	20 mA	3.2 V	Standard	Clear	8.6 mm
Cree LED C503B-GCN-CA0B0782		Green	Radial	30 °	Colorless	17750 mcd	5 mm Dia	10.3 mm	Through Hole	Round with Domed Top	5 mm	20 mA	3.2 V	Standard	Clear		527 nm
Cree LED C503B-GCN-CY0Z0781	525 nm	Green	Radial	30 °	Colorless	8930 mcd	5 mm Dia	10.3 mm	Through Hole	Round with Domed Top	5 mm	20 mA	3.2 V	Standard	Clear
Cree LED C503B-BAN-CY0C0461	470 nm	Blue	Radial	15 °	Colorless	19380 mcd	5 mm Dia	10.3 mm	Through Hole	Round with Domed Top	5 mm	20 mA	3.2 V	Standard	Clear
Cree LED C503B-AAS-CA0B0341	591 nm	Amber	Radial	15 °	Colorless	13000 mcd	5 mm Dia		Through Hole	Round with Domed Top	5 mm	20 mA	2.1 V	Standard	Clear	13.2 mm
Cree LED C503B-GCS-CY0B0792-030		Green	Radial	30 °	Colorless		5 mm Dia	12.7 mm	Through Hole	Round with Domed Top	5 mm	20 mA	3.2 V	Standard	Clear		527 nm
Cree LED C503B-GCS-CY0C0791		Green	Radial	30 °	Colorless	19380 mcd	5 mm Dia	12.7 mm	Through Hole	Round with Domed Top	5 mm	20 mA	3.2 V	Standard	Clear		527 nm
Cree LED C503B-WAN-CCADB152		Cool, White	Radial	15 °	Colorless	34800 mcd		10.3 mm	Through Hole	Round with Domed Top		20 mA	3.2 V	Standard	Clear			9000 K	5 mm	T-1 3/4	5 mm
