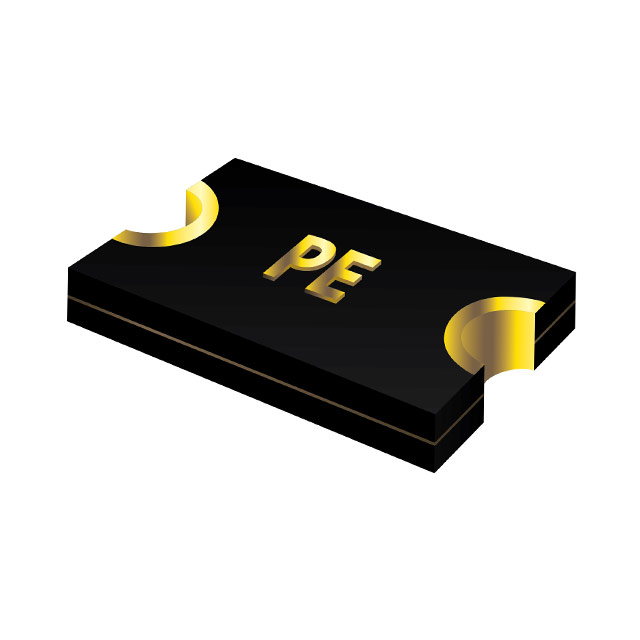

MF-PSML300-2

Obsolete

Bourns Inc.

PTC RESET FUSE 6V 3A 0805

Search across all available documentation for this part.

Obsolete

Bourns Inc.

PTC RESET FUSE 6V 3A 0805

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Max [Max]	Thickness (Max)	Thickness (Max)	Mounting Type	Type	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Thickness (Max) [Max]	Thickness (Max) [Max]
Bourns Inc. MF-PSML300-2	6 V	0.8 mm	0.032 in	Surface Mount	Polymeric	85 °C	-40 °C	cURus TUV	0805 (2012 Metric) Concave	2.15 mm	0.053 in	0.085 "	1.35 mm
Bourns Inc. MF-PSML175-2	6 V			Surface Mount	Polymeric	85 °C	-40 °C	cURus TUV	0805 (2012 Metric) Concave	2.15 mm	0.053 in	0.085 "	1.35 mm	0.024 in	0.6 mm
Bourns Inc. MF-PSML200-2	6 V			Surface Mount	Polymeric	85 °C	-40 °C	cURus TUV	0805 (2012 Metric) Concave	2.15 mm	0.053 in	0.085 "	1.35 mm	0.024 in	0.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Polymeric PTC Resettable Fuse 6V Ih Surface Mount 0805 (2012 Metric), Concave
