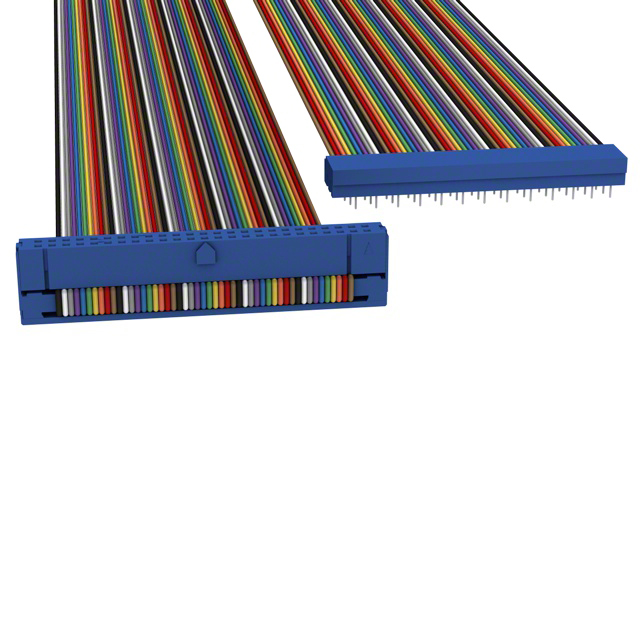

Specification	C3DPS-5006M

Cable Termination	IDC
Color	Multiple, Ribbon
Connector Type	Socket to PCB
Contact Finish	Tin
Contact Finish Thickness	100 µin
Features	Strain Relief, Polarizing Key
Length	0.5 ft
Number of Positions	50
Number of Rows	4, 2
Number of Rows (string_set)	4, 2
Pitch - Cable	0.05 in
Pitch - Connector	0.1 in
Shielding	Unshielded
Usage	Board In

C3DPS-5 Series

Part	Features	Shielding	Cable Termination	Pitch - Cable	Contact Finish	Number of Rows	Number of Rows (string_set)	Contact Finish Thickness	Usage	Pitch - Connector	Number of Positions	Length	Connector Type	Color
CW Industries C3DPS-5036M	Polarizing Key Strain Relief	Unshielded	IDC	0.05 in	Tin	2 4	2 4	100 µin	Board In	0.1 in	50	3 ft	Socket to PCB	Multiple Ribbon
CW Industries C3DPS-5006M	Polarizing Key Strain Relief	Unshielded	IDC	0.05 in	Tin	2 4	2 4	100 µin	Board In	0.1 in	50	0.5 ft	Socket to PCB	Multiple Ribbon
CW Industries C3DPS-5006G	Polarizing Key Strain Relief	Unshielded	IDC	0.05 in	Tin	2 4	2 4	100 µin	Board In	0.1 in	50	0.5 ft	Socket to PCB	Gray Ribbon
CW Industries C3DPS-5018G	Polarizing Key Strain Relief	Unshielded	IDC	0.05 in	Tin	2 4	2 4	100 µin	Board In	0.1 in	50	1.5 ft	Socket to PCB	Gray Ribbon
CW Industries C3DPS-5036G	Polarizing Key Strain Relief	Unshielded	IDC	0.05 in	Tin	2 4	2 4	100 µin	Board In	0.1 in	50	3 ft	Socket to PCB	Gray Ribbon
CW Industries C3DPS-5018M	Polarizing Key Strain Relief	Unshielded	IDC	0.05 in	Tin	2 4	2 4	100 µin	Board In	0.1 in	50	1.5 ft	Socket to PCB	Multiple Ribbon
