BQ24190EVM-021
ActiveEVALUATION MODULE FOR BQ2419
Deep-Dive with AI
Search across all available documentation for this part.

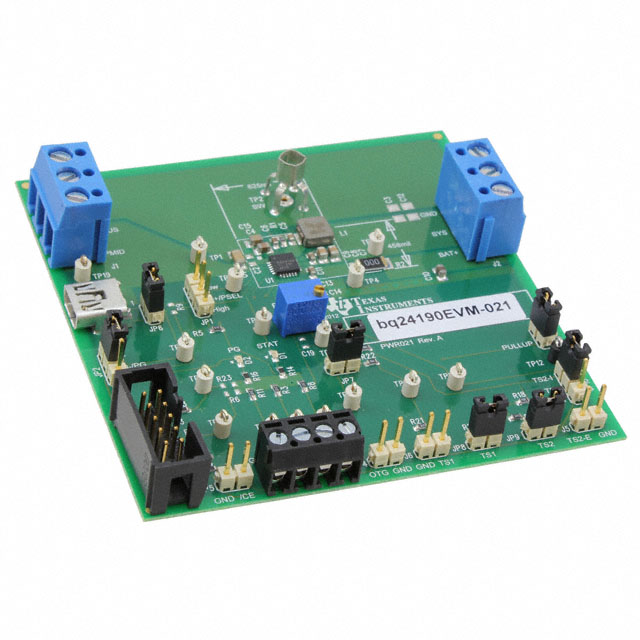

BQ24190EVM-021
ActiveEVALUATION MODULE FOR BQ2419
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24190EVM-021 | BQ24190 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Battery Pack Voltage | - | 4.2 V |
| Charge Current - Max | - | 4.5 A |
| Current - Charging | - | Constant - Programmable |
| Embedded | False | False |
| Fault Protection | - | Over Current, Over Voltage, Over Temperature |
| Function | Battery Charger | Battery Charger |
| Interface | - | I2C |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 24-VFQFN Exposed Pad |
| Primary Attributes | Li-Ion (1 Cell) | Li-Ion (1 Cell) |
| Secondary Attributes | I2C Interface(s) | I2C Interface(s) |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 24-VQFN (4x4) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24190 | BQ24190 |
| Voltage - Supply (Max) | - | 17 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 118.80 | |
BQ24190 Series
I2C controlled 4.5A single cell USB / Adaptor charger
| Part | Supplier Device Package | Mounting Type | Package / Case | Number of Cells | Battery Pack Voltage | Voltage - Supply (Max) [Max] | Interface | Fault Protection | Operating Temperature [Max] | Operating Temperature [Min] | Current - Charging | Battery Chemistry | Charge Current - Max [Max] | Primary Attributes | Embedded | Utilized IC / Part | Secondary Attributes | Type | Supplied Contents | Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24190RGET | 24-VQFN (4x4) | Surface Mount | 24-VFQFN Exposed Pad | 1 | 4.2 V | 17 V | I2C | Over Current, Over Temperature, Over Voltage | 85 °C | -40 °C | Constant - Programmable | Lithium Ion/Polymer | 4.5 A | |||||||
Texas Instruments BQ24190RGER | 24-VQFN (4x4) | Surface Mount | 24-VFQFN Exposed Pad | 1 | 4.2 V | 17 V | I2C | Over Current, Over Temperature, Over Voltage | 85 °C | -40 °C | Constant - Programmable | Lithium Ion/Polymer | 4.5 A | |||||||
Texas Instruments BQ24190EVM-021 | Li-Ion (1 Cell) | BQ24190 | I2C Interface(s) | Power Management | Board(s) | Battery Charger |
Description
General part information
BQ24190 Series
The bq24190, bq24192, and bq24192I are highly-integrated switch-mode battery charge management and system power path management devices for single cell Li-Ion and Li-polymer battery in a wide range of tablet and other portable devices.
Its low impedance power path optimizes switch-mode operation efficiency, reduces battery charging time and extends battery life during discharging phase. The I2C serial interface with charging and system settings makes the device a truly flexible solution.
The device supports a wide range of input sources, including standard USB host port, USB charging port and high power DC adapter. To set the default input current limit, the bq24190 detects the input source following the USB battery charging spec 1.2, and the bq24192 and bq24192I take the results from detection circuit in the system, such as USB PHY device. The bq24190,192, and 192I are compliant with USB 2.0 and USB 3.0 power specifications with input current and voltage regulation. Meanwhile, the bq24190, bq24192, and bq24192I meet USB On-the-Go operation power rating specification by supplying 5 V on the VBUS with a current limit up to 1.3 A.
